Adj. Plain Clamps
with adjusting screw

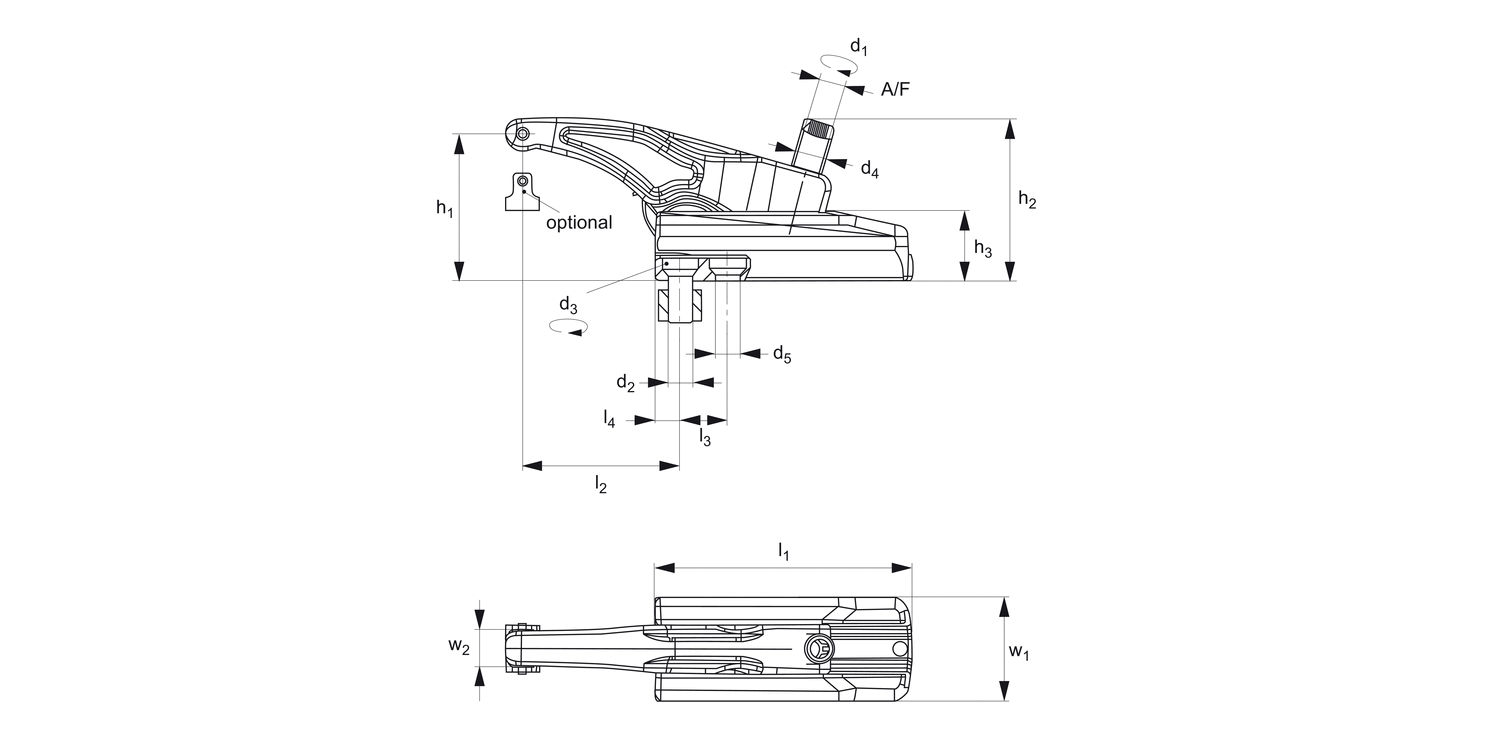

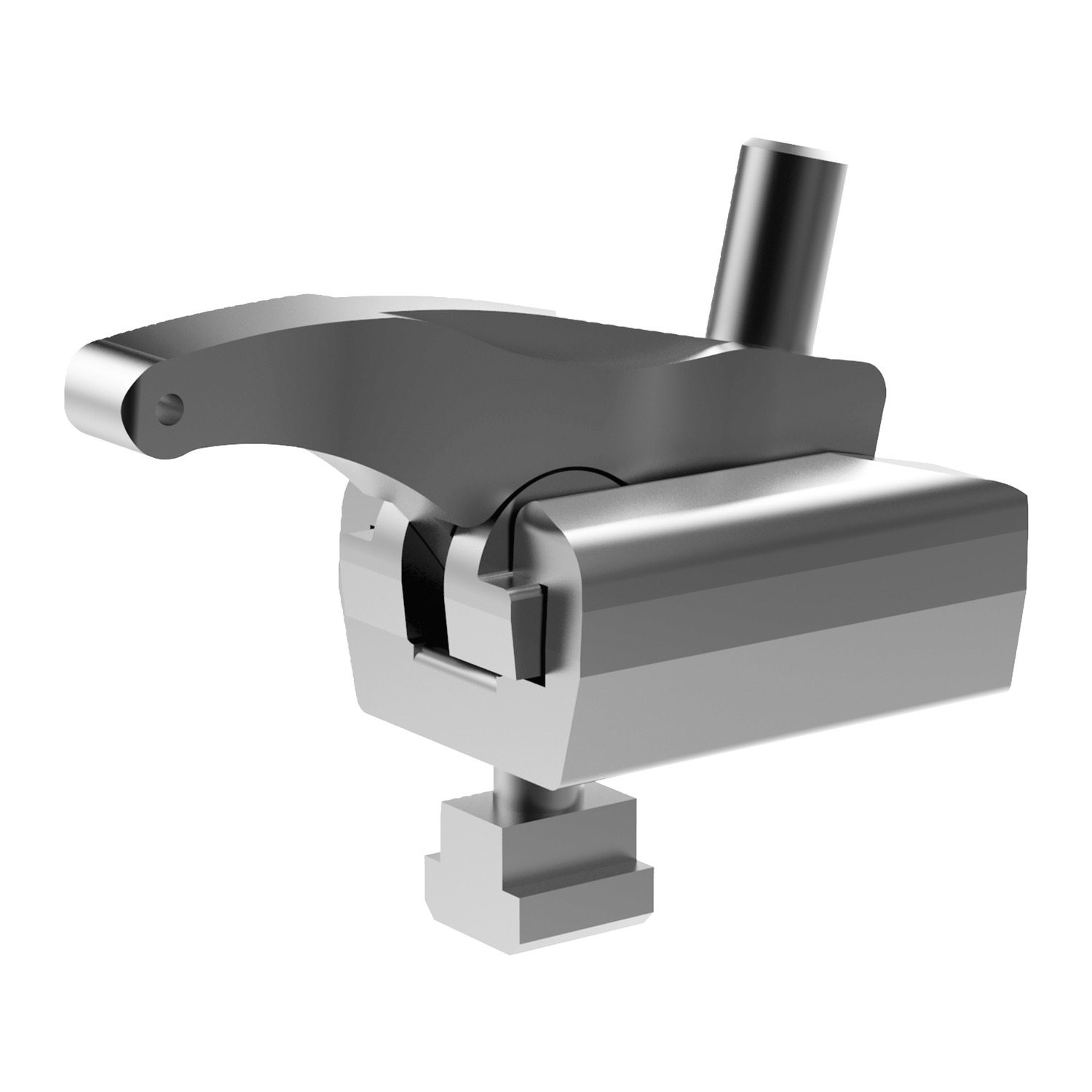

10588.1 Power Clamp
material: Steel, tempered
Order No.
10588.W0031
Size
30
For slot
18
d2
M16
d4
M16
d5
17
h1
min.|max.
6-68
h2
85
h3
36
l1
135
l2
16-114
l3
28
l4
16
Torque to d1
max.
Nm
100
Torque to d3
max.
Nm
150
w1
54
w2
18
A/F
8
Load capacity for static load
max.
kN
30
Weight
g
2045
£ 439.36 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 439.36 | 0% |
| 10-19 | £ 395.42 | 10% |
| 20-49 | £ 373.46 | 15% |
| 50-99 | £ 351.49 | 20% |
| 100+ | £ 307.55 | 30% |
Technical & Application
Material
Steel, tempered, alloyed and galvanised (black).
Technical Notes
Complete with mounting kit.
Powerful, adjustable height clamp for milling, press tools and injection mould applications. Clamping force 22 kN to 49 kN depending on size. Low height readily adjustable. Smooth or ribbed clamping pad available. For use in threaded holes (M10, M12, M16, M20) and 12-28mm T-slot bases.
Tips
Torque the screws to the correct specified torque. Clamping force depends on thread lubrication and thread condition.
