Adj. Plain Clamps
with adjusting screw

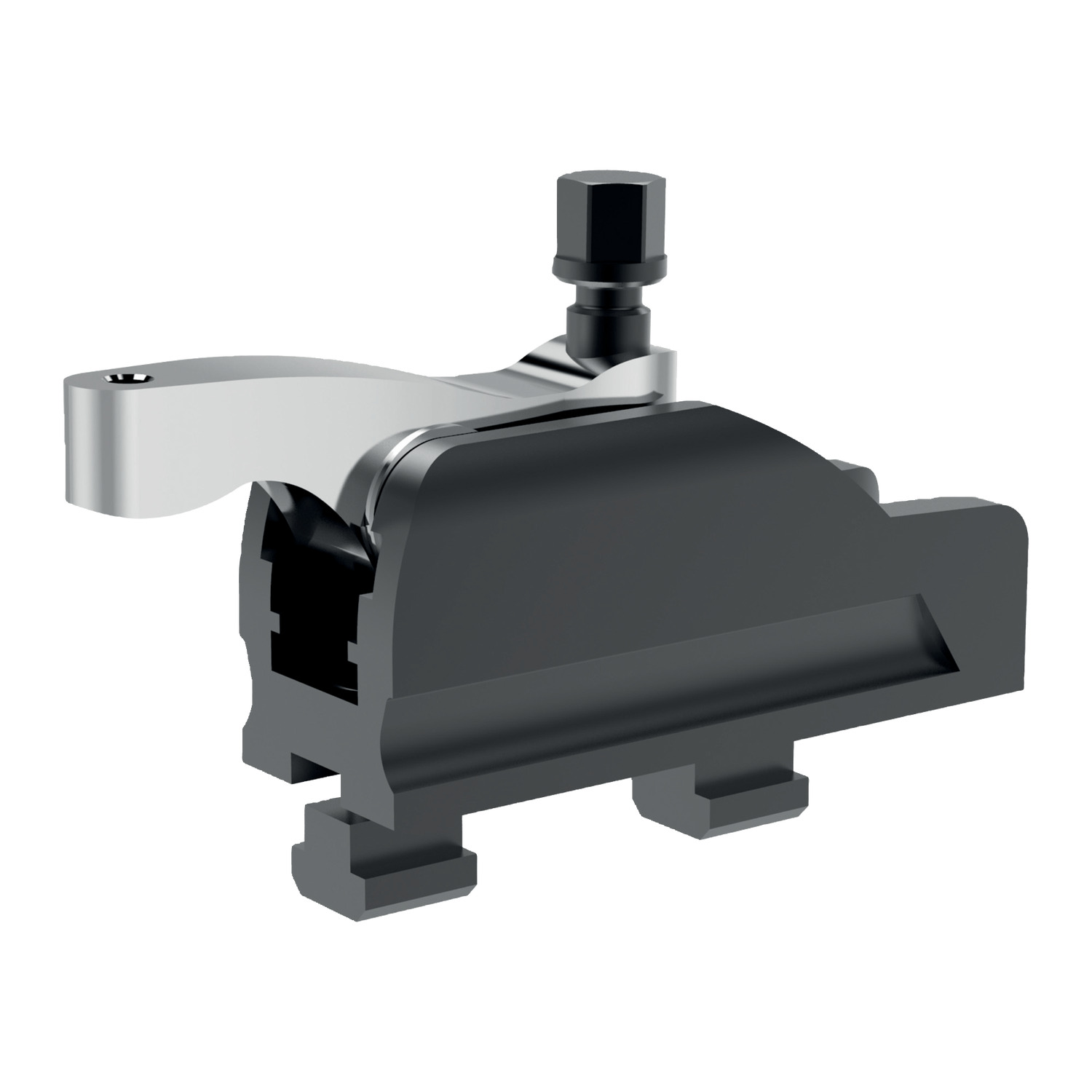

10592.1 Compact Clamps
material: steel, heat-treated
Order No.
10592.W0012
d1
M12
d2
M 8
h1
min.
40
h1
max.
60
h2
59
h3
95
l1
134
l2
+1
70
l3
50
l4
13
l5
10.0
l6
max.
43
Tightening torque
max.
Nm
45
w1
45
A/F
16
Clamping force
max.
kN
15
Weight
g
1813
£ 393.38 per unit (click for quantity discounts)
Ready to despatch 1
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 393.38 | 0% |
| 3-4 | £ 373.71 | 5% |
| 5-9 | £ 354.04 | 10% |
| 10+ | £ 334.37 | 15% |
Technical & Application
Material
Body: steel, heat-treated and black coated.
Lever: steel, heat-treated and silver coated.
Technical Notes
Assembly and set-up:
1. Take out stop pin ISO 4762-M 6 x 10.
2. Move back and take out clamping lever.
3. Tightening by two screws with internal hexagon (included).
4. Place clamping lever in sliding rail.
5. Tighten clamping screw to torque required.
Tips

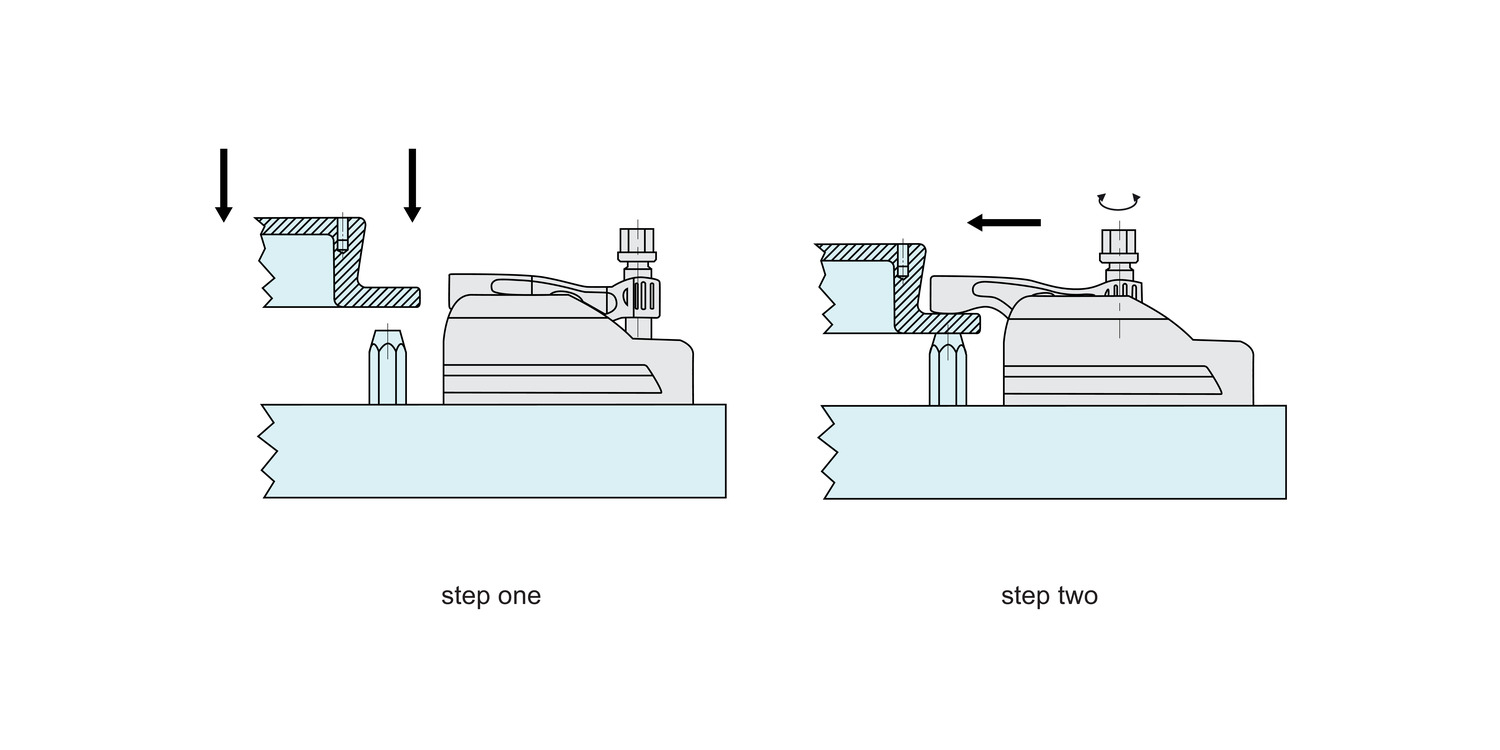

The clamps are corrosion resistant, provide easy clamping of varied heights with strong clamping forces. The self-locking clamping lever allows the clamp to be used in horizontal or vertical orientations. Slide back the clamping lever to allow access to parts. Corrosion resistant coating is applied to the spacer elements (see order no's 10592.W0112 and 10592.W0116).
