Adj. Plain Clamps
with adjusting screw

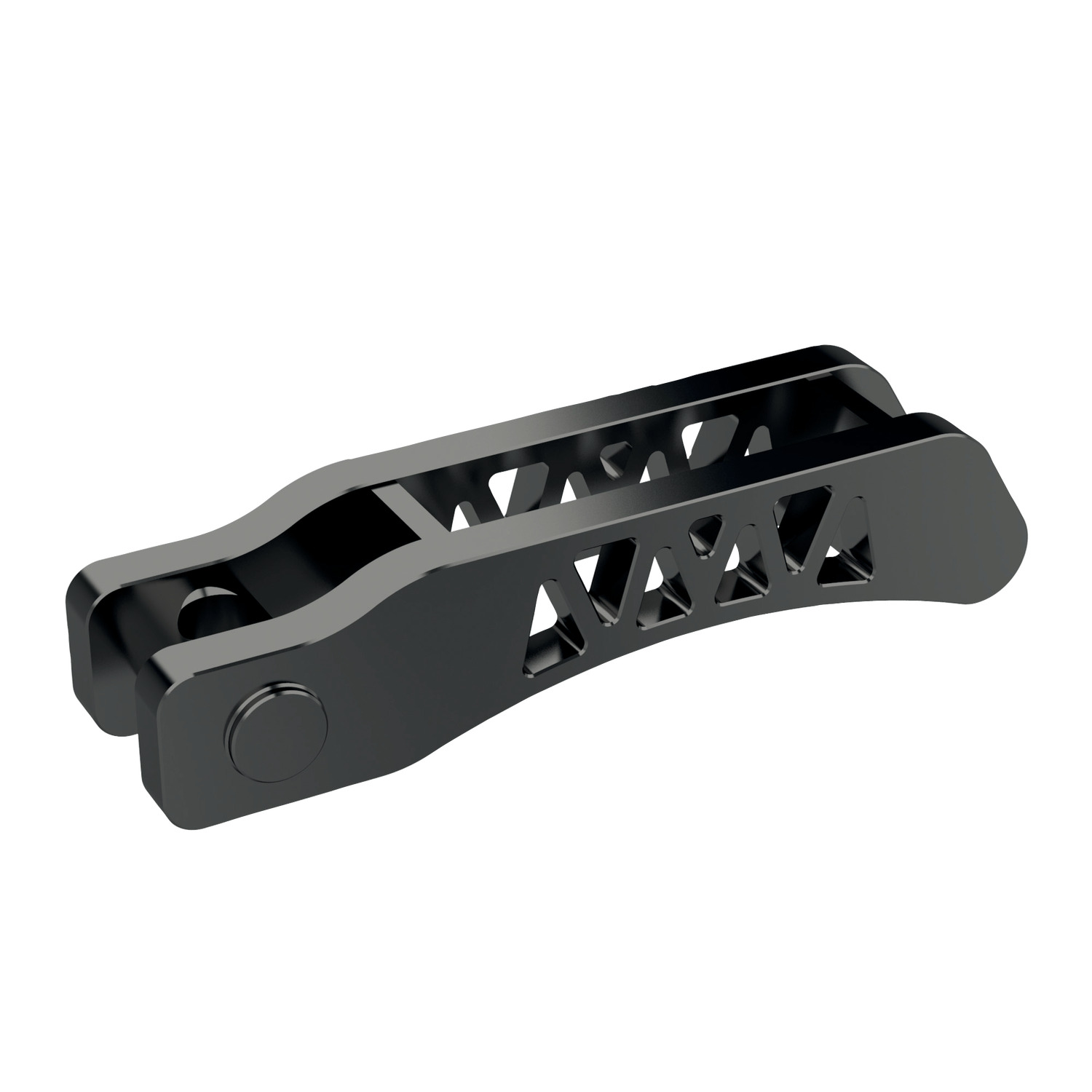

10610.1 Scalloped Clamp
light design, material: Steel
Order No.
10610.W0043
Size
43
For clamping screw
M36, M42

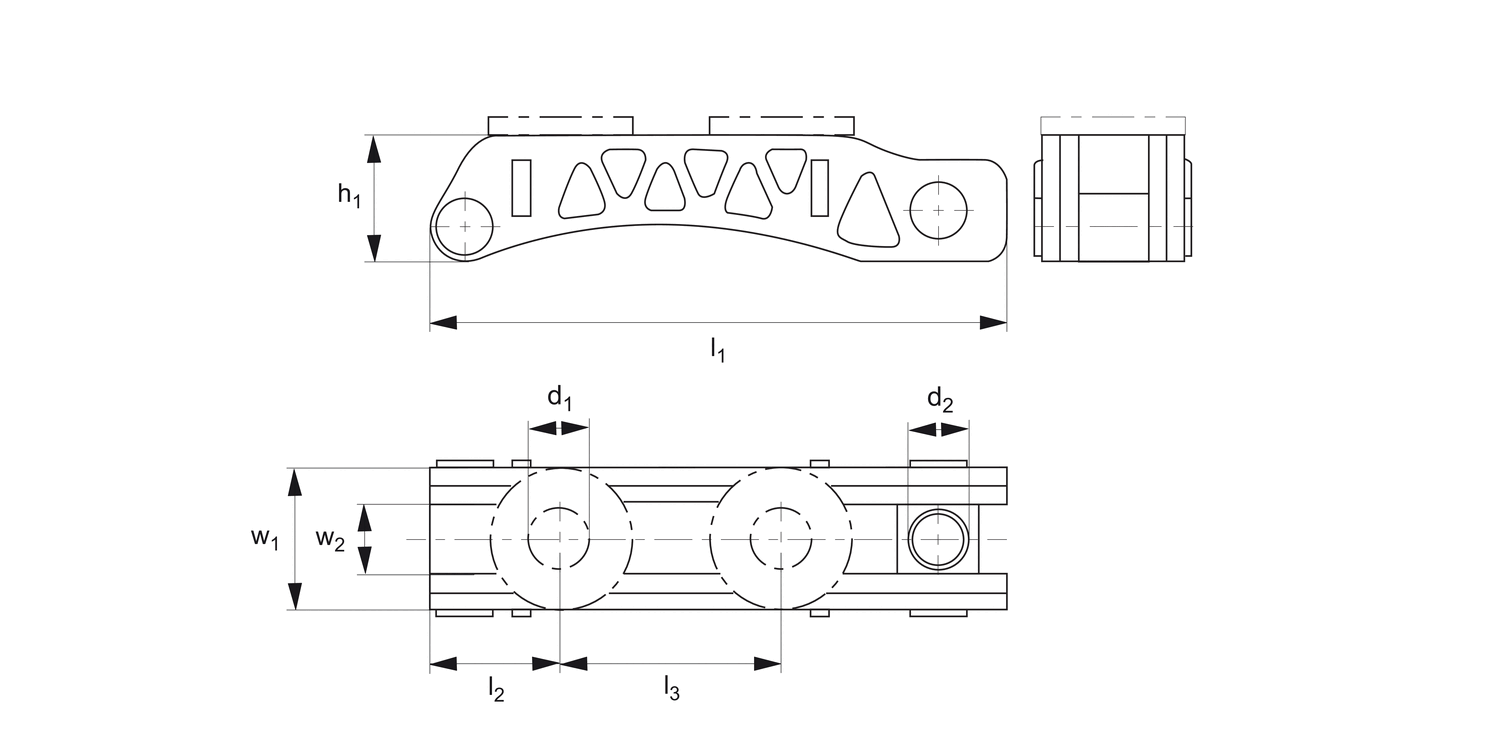

d1
43
d2
M30
h1
80
l1
400
l2
74
l3
209
w1
102
w2
54
Weight
g
9709
£ 316.78 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 316.78 | 0% |
| 10-19 | £ 285.10 | 10% |
| 20-49 | £ 269.26 | 15% |
| 50-99 | £ 253.42 | 20% |
| 100+ | £ 221.75 | 30% |
Technical & Application
Material
Steel, tempered and burnished.
Technical Notes
The weight saving device allows a 50% reduction in weight with no effect on clamping force that can be applied. Useful for rotating applications.
Tips
For clamping, T-bolts no. 21000 (DIN 787), studs no. 21100 (DIN 6379) and cheese head screws (ISO 4762) can be used.
