Coolant Nozzles
pressure max - angled

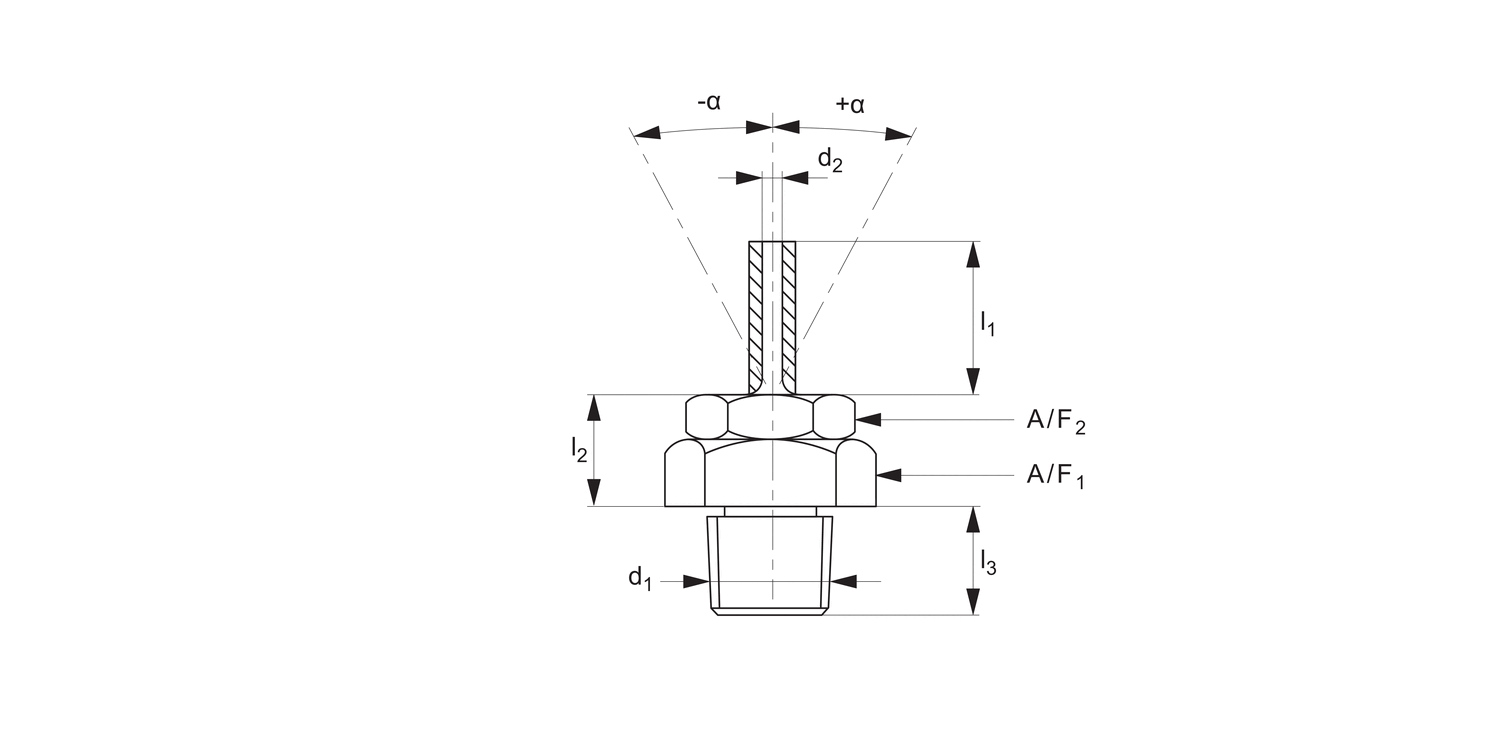

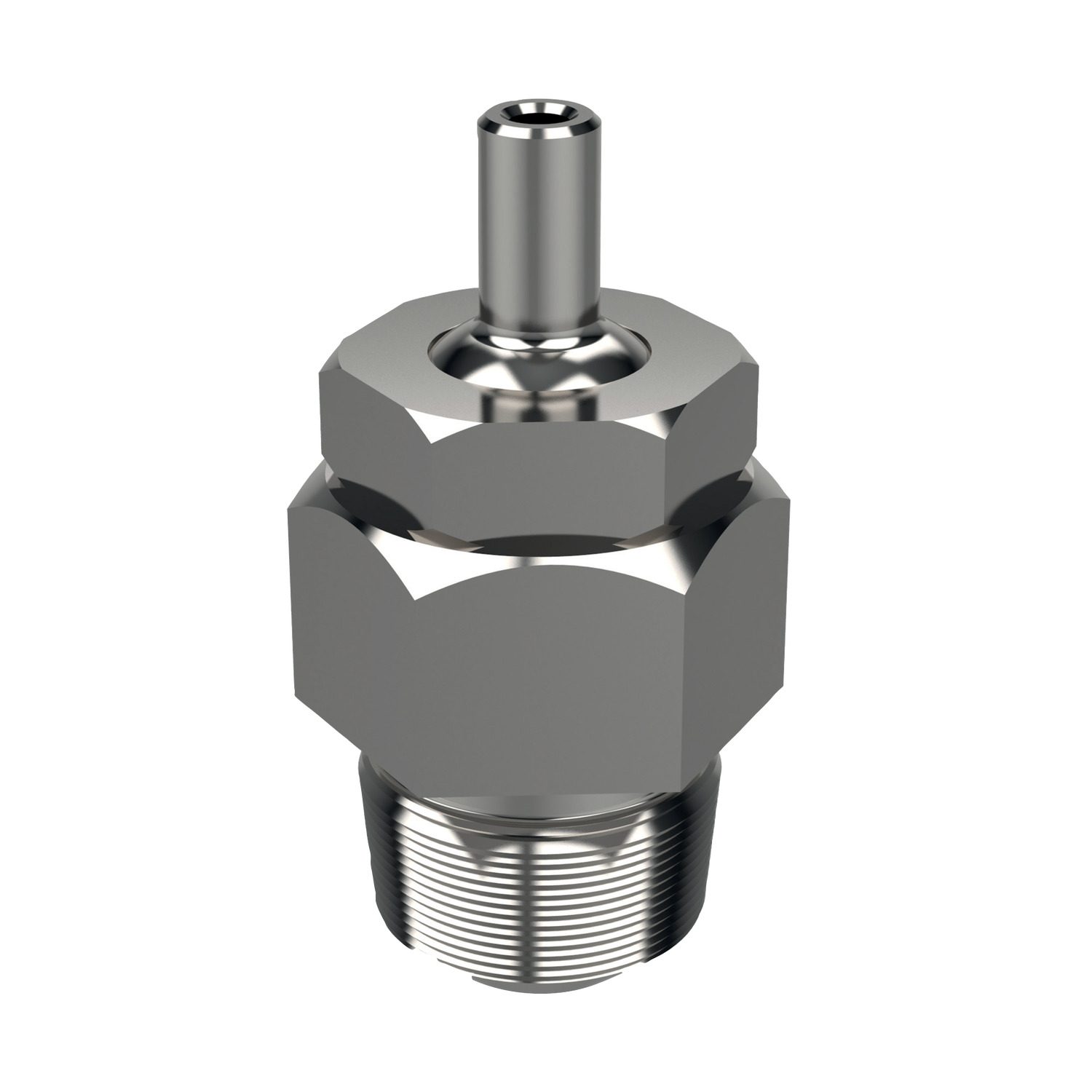

20103 Pressure Max. - Coolant Nozzles
straight - with tube - max. 100 bar, material: Stainless steel
Order No.
20103.W1101
Type
Metric Coarse
A/F1
7/16"
d1
M10x1,50
d2
1.6
l1
6.4
l2
9.5
l3
9.1
A/F2
3/8"
α
°
±34°
£ 76.07 per unit (click for quantity discounts)
Ready to despatch 4
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 76.07 | 0% |
| 5-9 | £ 72.27 | 5% |
| 10-19 | £ 68.46 | 10% |
| 20-49 | £ 64.66 | 15% |
| 50+ | £ 57.05 | 25% |
Technical & Application
Material
Stainless steel body, ball and tube.
Technical Notes
Max. temperature: 70ºC.
Max. pressure: 100 bar.
symbola/symbol is an angle of adjustment either side of centre line.
Tips
Interchangeable spray tips available allowing the orifice diameter and extension length to be easily changed to suit the application.
A high velocity coolant stream increases productivity and tool life.
Also useful for low pressure applications where abrasive swarf can be a problem.
