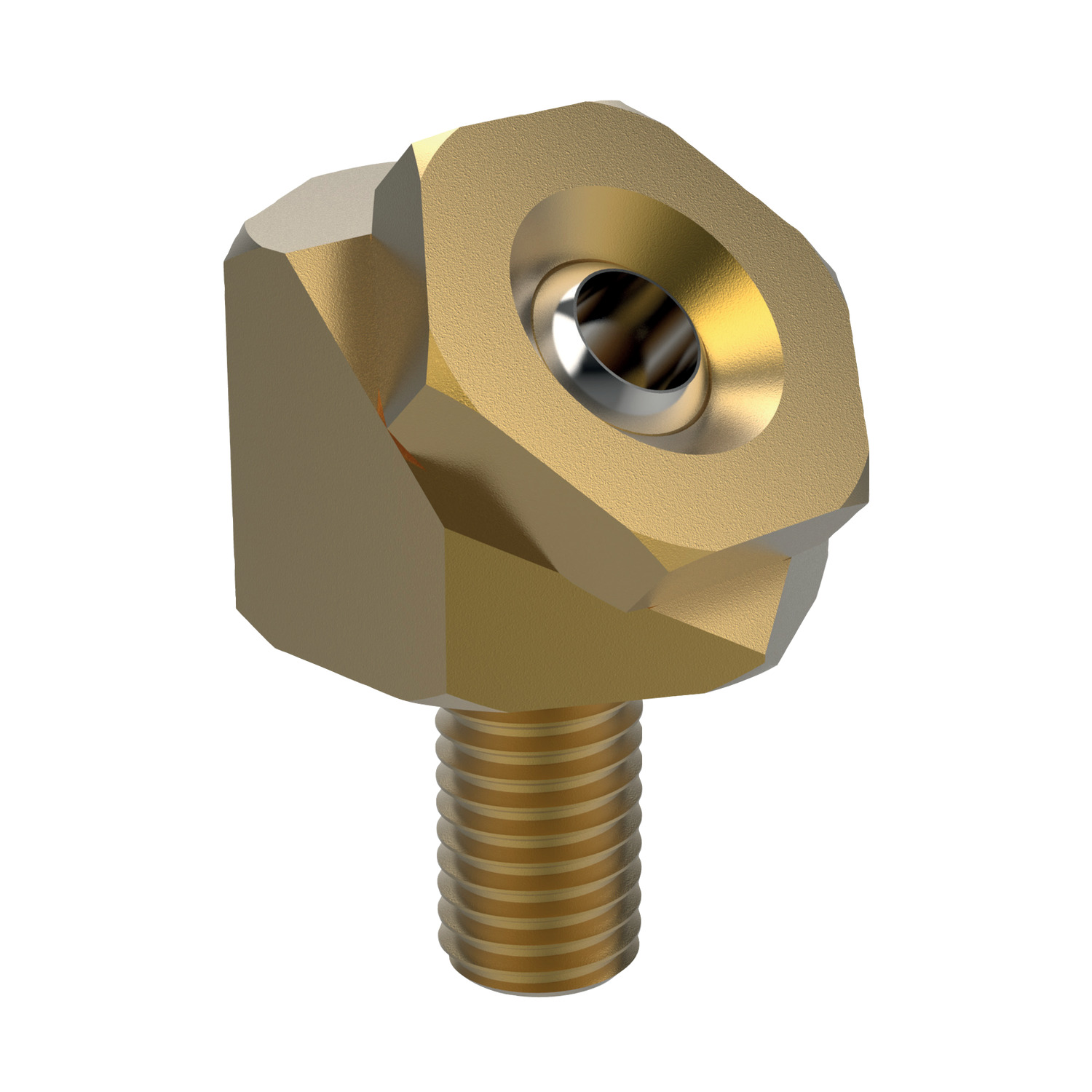

Coolant Nozzles
pressure max - angled

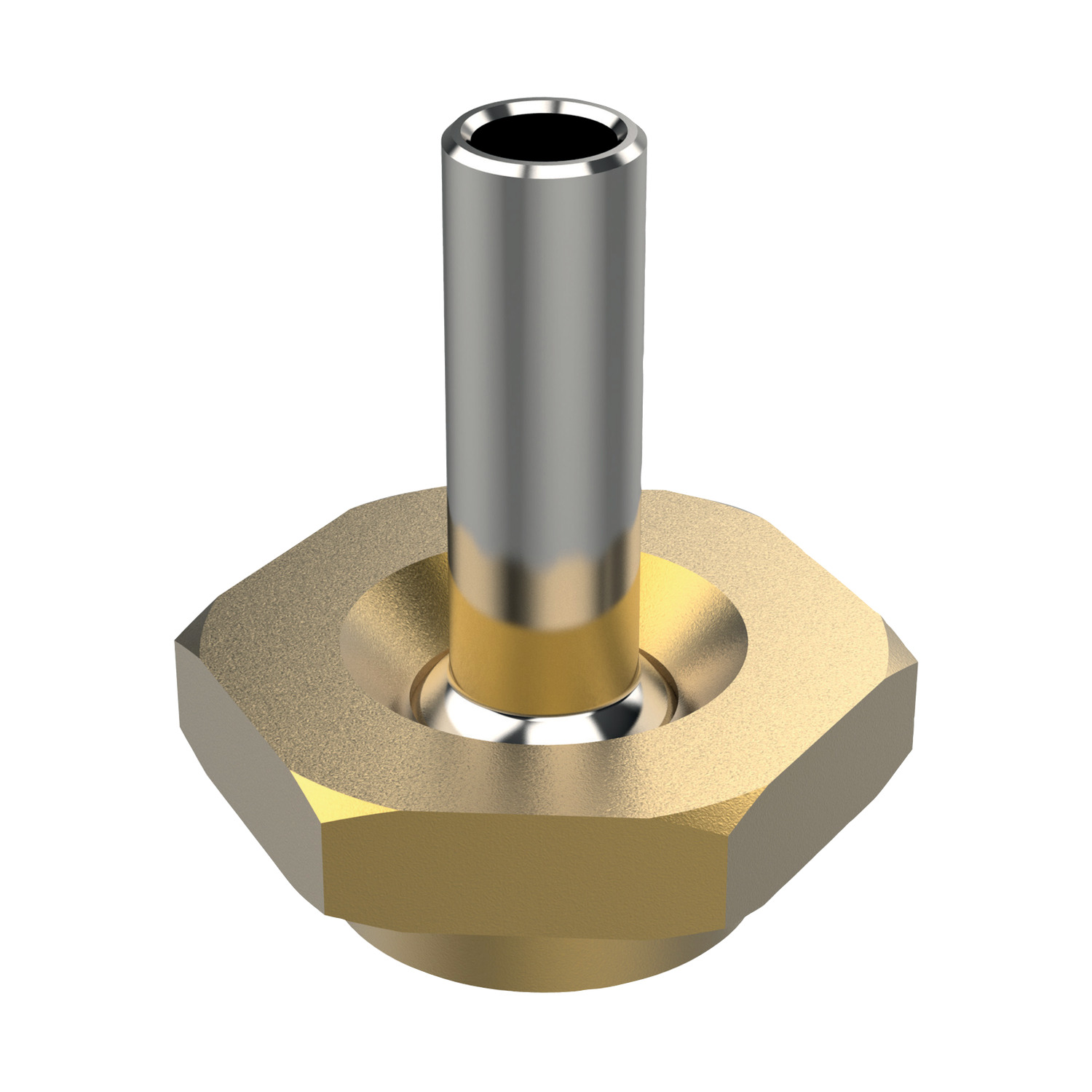

20104 Pressure Max - Spray Tips
max. 100 bar, material: Brass or stainless steel
Order No.
20104.W2310-S
Body material
Stainless Steel
d1
5/16"-24 UNF
d2
1.6
d3
max.
8.8
d4
max.
7.1
d5
5/16"-24
l1
3.5
l2
2.3
A/F
3/8"
α
°
±40°
£ 32.67 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 32.67 | 0% |
| 5-9 | £ 31.04 | 5% |
| 10-19 | £ 29.40 | 10% |
| 20-49 | £ 27.77 | 15% |
| 50+ | £ 24.50 | 25% |
Technical & Application
Material
Body: brass or stainless steel.
Ball and tube: stainless steel.
Technical Notes
Max. temperature: 70ºC.
Max. pressure: 100 bar.
symbola/symbol is an angle of adjustment either side of centre line.
Choose the stainless steel body version when using cutting oils not compatible with brass (such as oils containing active sulphur).
Choose the brass versions for lower cost.
Tips
Interchangeable spray tips available allowing the orifice diameter and extension length to be easily changed to suit the application.
A high velocity coolant stream increases productivity and tool life.
Also useful for low pressure applications where abrasive swarf can be a problem.
Product Datasheets

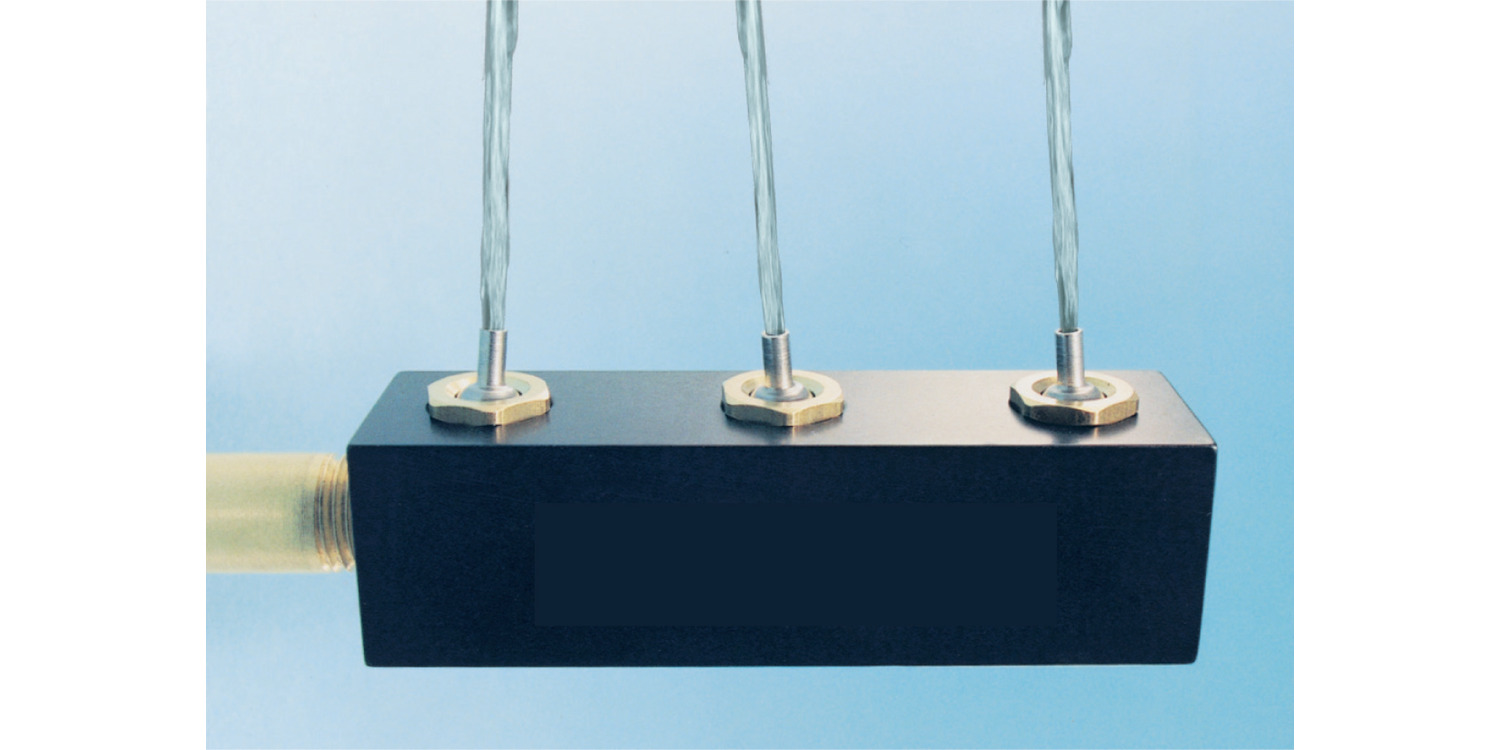

Application images
