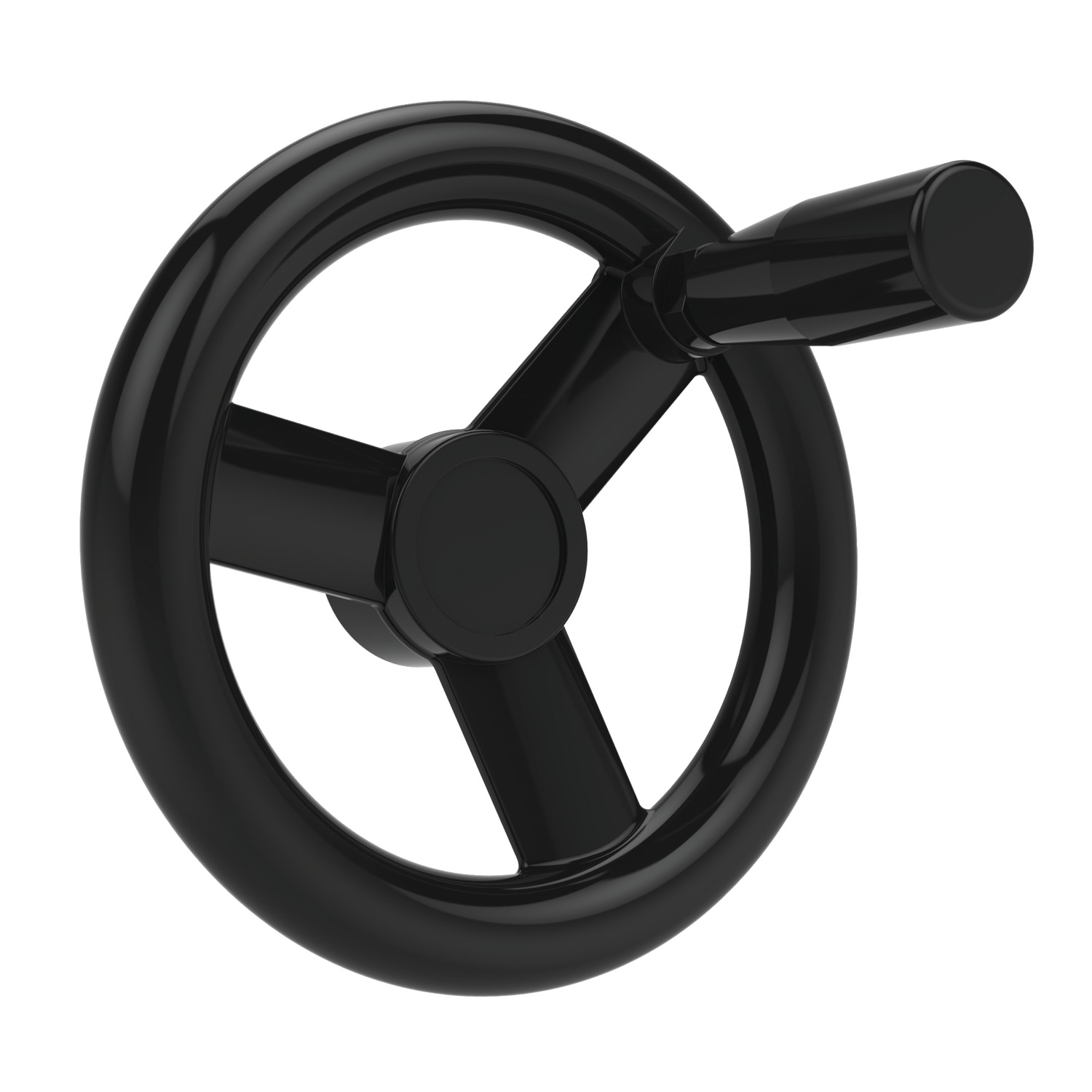

77030 Three Spoked Handwheels

Name: 77030.W0550
Brand: WC
SKU: 77030.W0550
Price: 30.93 EUR
Availability: InStock

with rotating grip, material: Duroplast

Article properties

Order No.

77030.W0550

Type

Reinforced

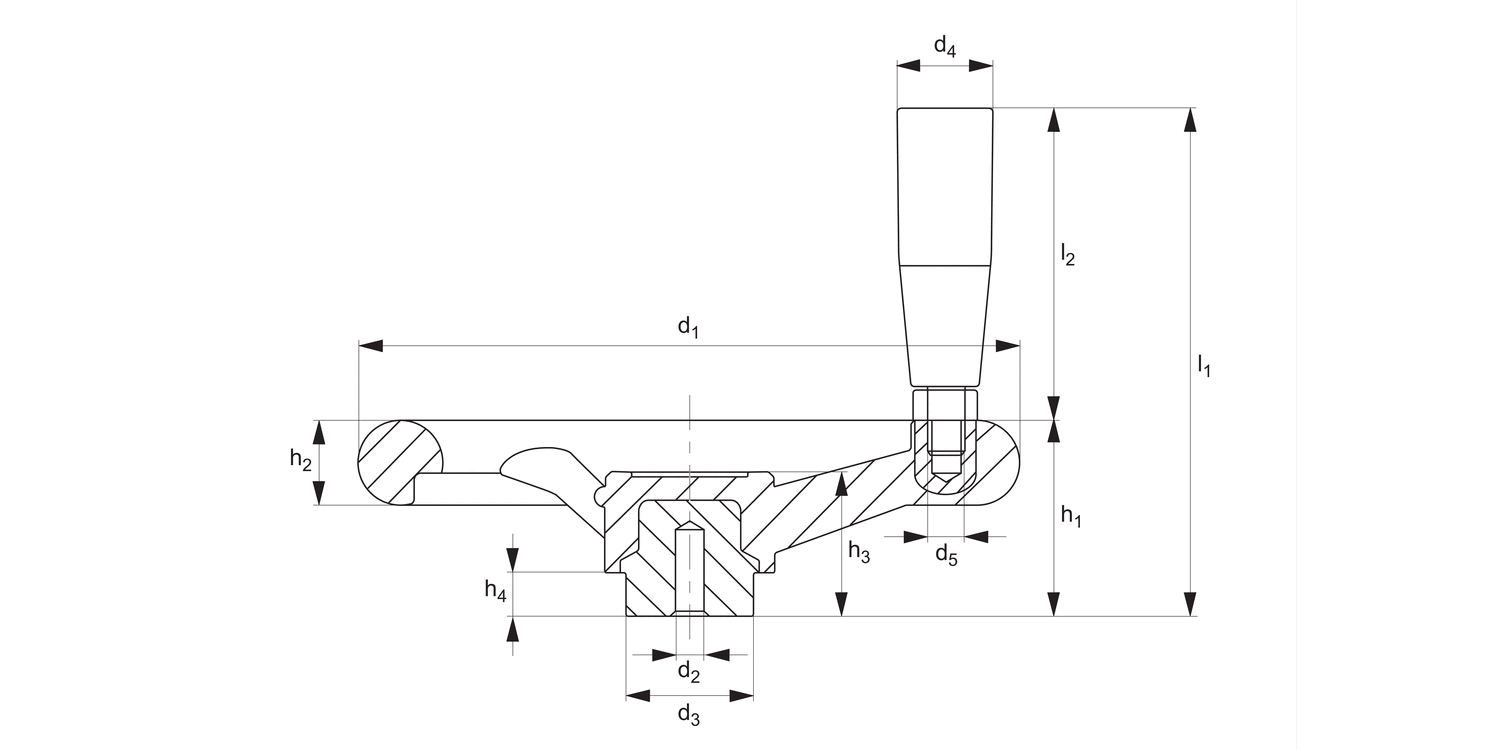

d₁

150

d₂

d₃

l₁

120

l₂

h₁

h₂

h₃

h₄

d₄

d₅

M10

Weight g

484

See full product selection

£ 30.93 per unit (click for quantity discounts)

Ready to despatch 1
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 30.93	0%
5-9	£ 29.38	5%
10-19	£ 27.84	10%
20-49	£ 26.29	15%
50+	£ 23.20	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Standard: Duroplast, black. Zinc plated steel hub. Revolving handle.
Reinforced: Duroplast with glass fibre beads for increased strength, black zinc plated steel auto-revolving handle.

Technical Notes

The pilot hole allows various sizes of holes, keyways etc. to be machined into the hub.
Corresponding rotating handle 75100.
