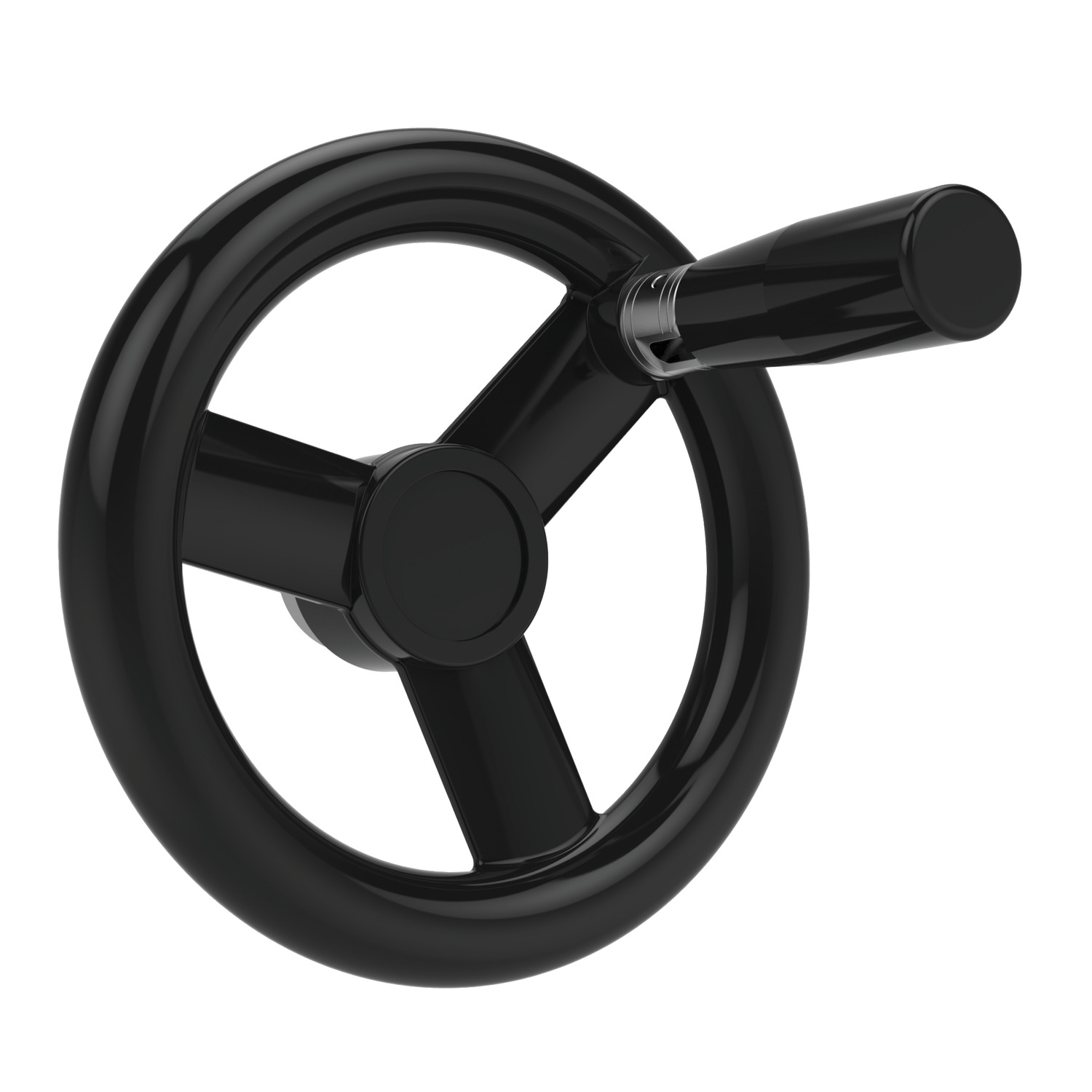

77040 Three Spoked Handwheels

Name: 77040.W0200
Brand: WC
SKU: 77040.W0200
Price: 68.58 EUR
Availability: InStock

with fold-away rotating grip, material: Duroplast

Article properties

Order No.

77040.W0200

d₁

200

d₂

d₃

l₁

166

l₂

h₁

h₂

h₃

h₄

h₅

d₄

d₅

M 6

Weight g

910

See full product selection

£ 68.58 per unit (click for quantity discounts)

Ready to despatch 8
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 68.58	0%
5-9	£ 65.15	5%
10-19	£ 61.72	10%
20-49	£ 58.29	15%
50+	£ 51.44	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Duroplast, black. Zinc plated steel hub. With fold-away revolving grip.

Technical Notes

The pilot hole allows various sizes of holes, keyways etc. to be machined into the hub.
Corresponding rotating handle 75150.
