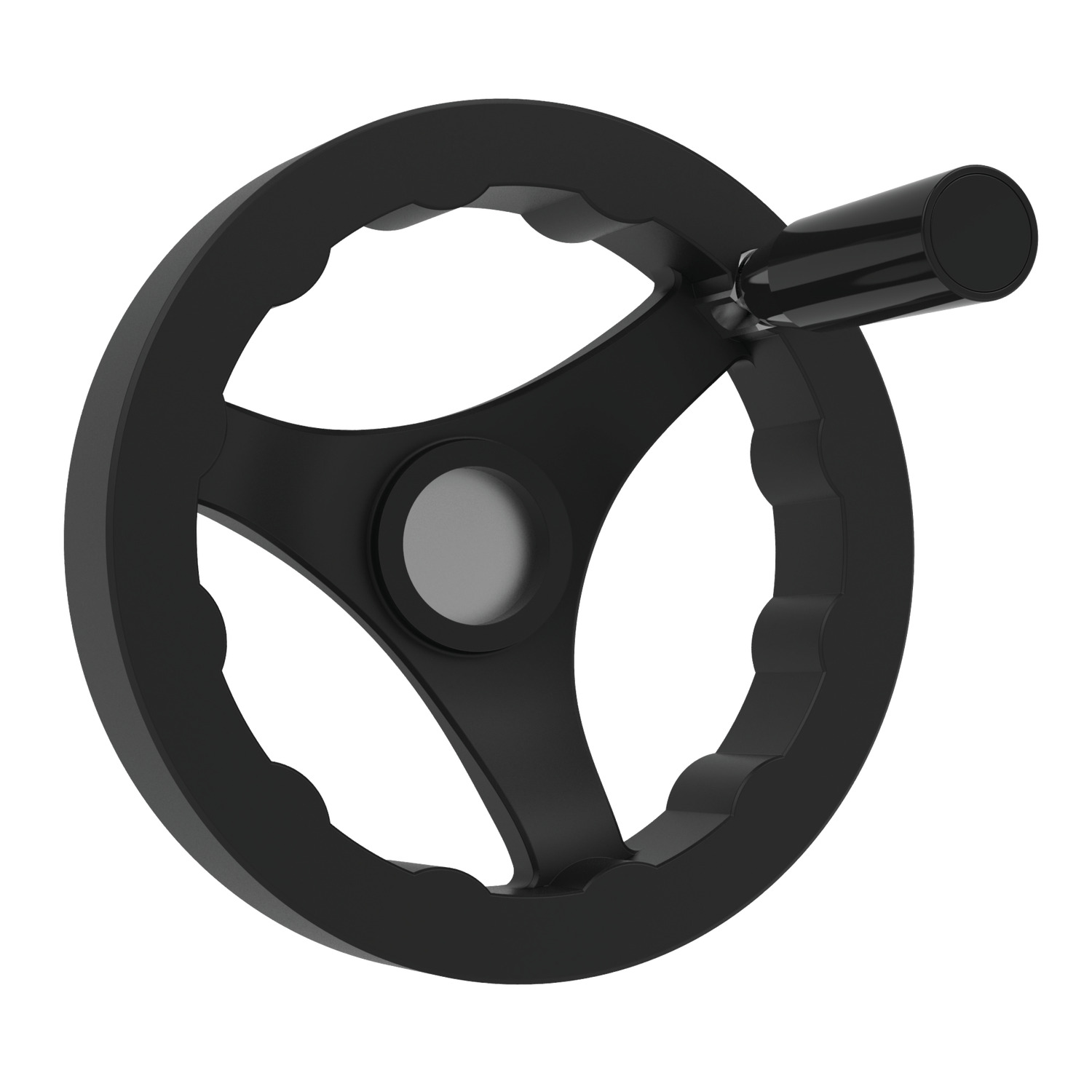

77080 Three Spoked Handwheels

Name: 77080.W0160
Brand: WC
SKU: 77080.W0160
Price: 41.1 EUR
Availability: OutOfStock

with fold-away rotating grip, material: Thermoplastic

Article properties

Order No.

77080.W0160

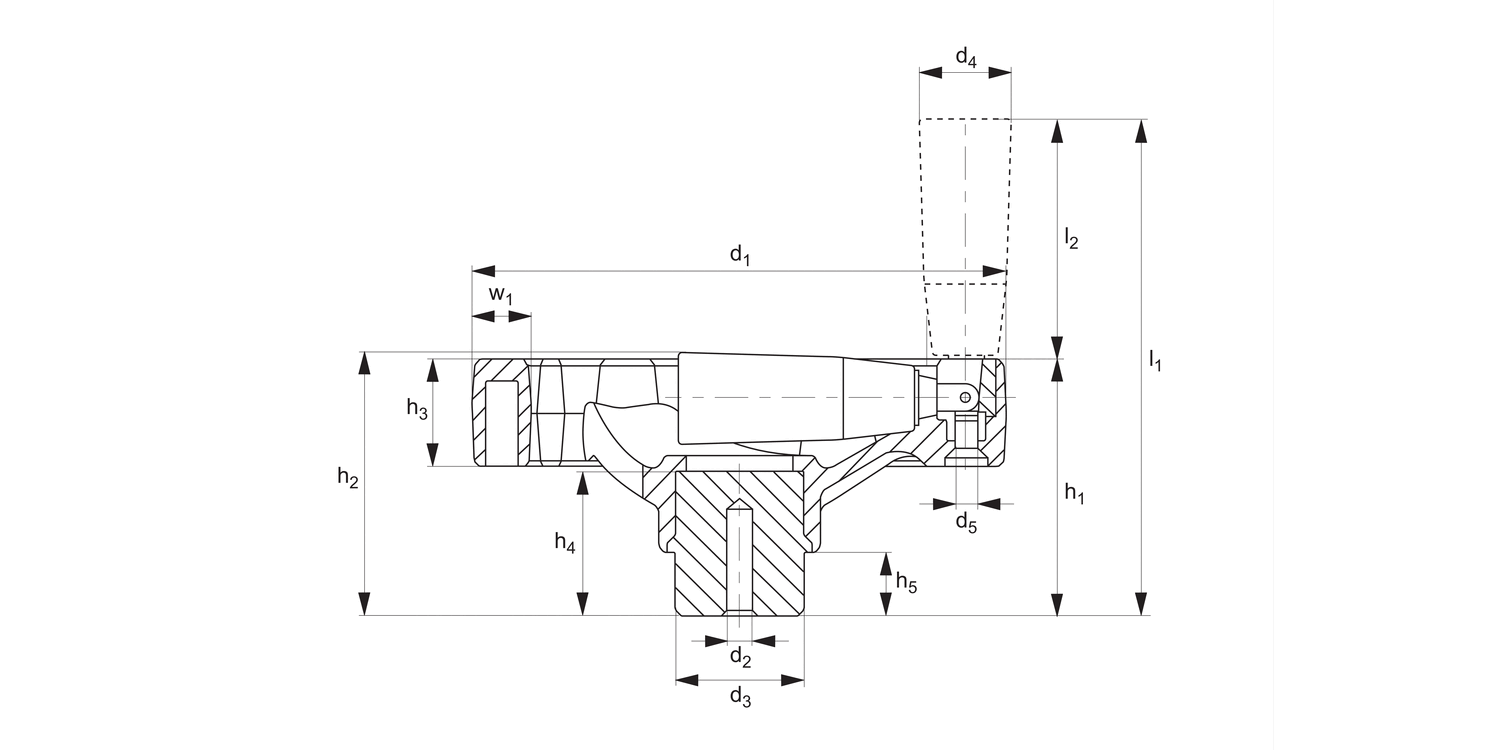

d₁

160

d₂

d₃

l₁

135

l₂

h₁

h₂

h₃

h₄

h₅

d₄

d₅

M 5

w₁

Weight g

503

See full product selection

£ 41.10 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 41.10	0%
5-9	£ 39.05	5%
10-19	£ 36.99	10%
20-49	£ 34.94	15%
50+	£ 30.83	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Thermoplastic, black, matt. Zinc plated steel hub. Fold-away revolving handle.

Technical Notes

The pilot hole allows various sizes of holes, keyways etc. to be machined into the hub.

Product Datasheets

77080 Three Spoked Handwheels3 January 2025, 15:08 / 164.71 kB

Handwheels - 3 Spoke24 June 2025, 15:34 / 2.97 MB

Handwheels24 June 2025, 15:31 / 1.27 MB

Grips, Handles & Handwheels24 June 2025, 15:32 / 11.95 MB

Design Elements24 June 2025, 15:33 / 69.38 MB

CAD files

77080 Acis17 April 2024, 10:06 / 1.02 MB

77080 IGES17 April 2024, 10:06 / 1.26 MB

77080 Parasolid17 April 2024, 10:06 / 369.74 kB

77080 ProE17 April 2024, 10:06 / 3.08 MB

77080 SolidWorks17 April 2024, 10:06 / 1.51 MB

77080 Step17 April 2024, 10:06 / 670.95 kB
