Keys - Flexi-Sys
for cam latches & locks
A0243 Multi Point Locking Adaptor - Flexi-System
for cam latches, locks and swing handles - zinc, material: Steel
Order No.
A0243.AW0430
Type
W/o projection
Application
Two Point Locking Adaptor
£ 1.21 per unit (click for quantity discounts)
Ready to despatch 242
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-49 | £ 1.21 | 0% |
| 50-99 | £ 1.09 | 10% |
| 100-199 | £ 0.97 | 20% |
| 200-499 | £ 0.91 | 25% |
| 500-999 | £ 0.85 | 30% |
| 1000+ | £ 0.73 | 40% |
Technical & Application
Material
Steel, zinc plated.
Technical Notes

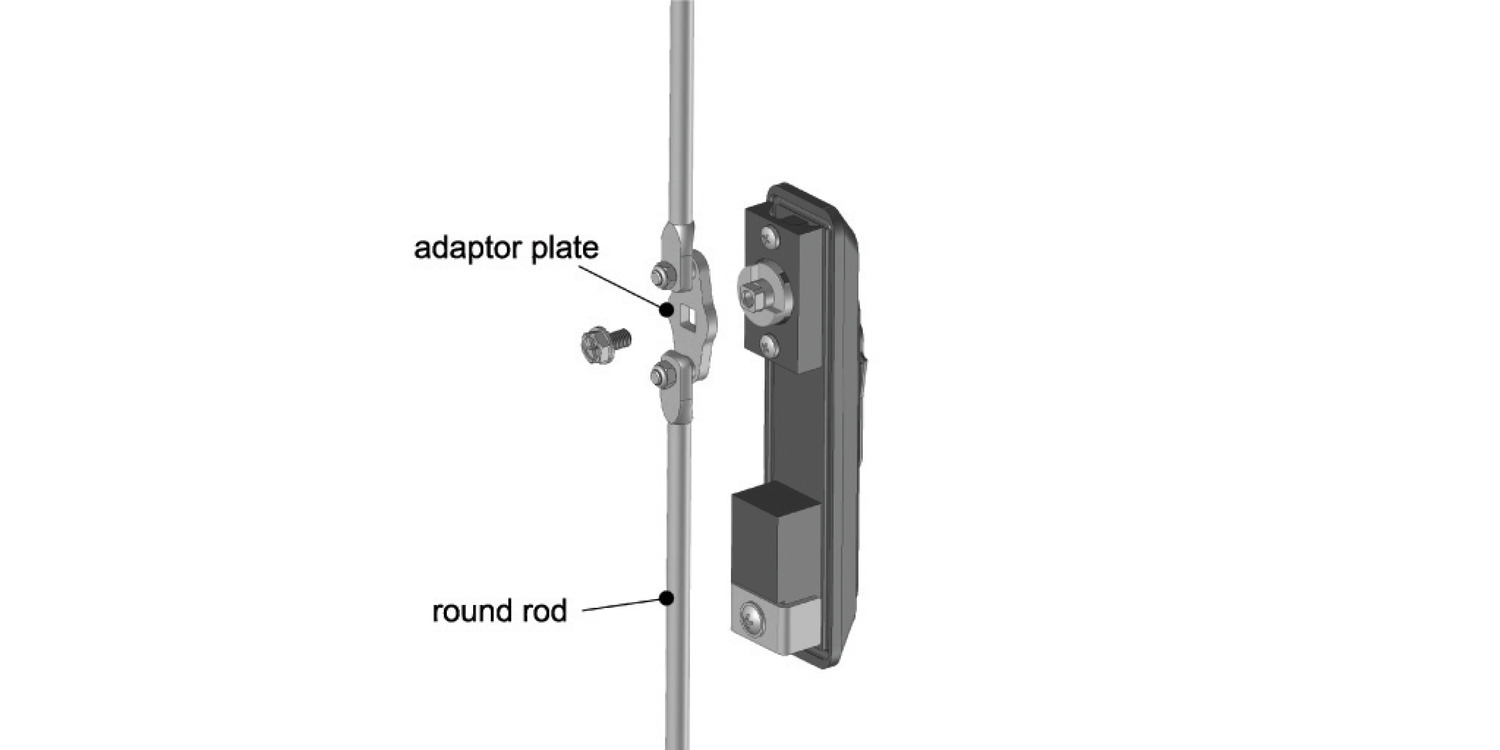

Two point locking adaptor for use with our round rod latching system on cam latches and swing handles, to achieve a comprehensive latching system for tall cabinets and enclosures.
Tips
Use formula to calculate ch (required cam off-set), and refer to cam chart;
ch = h - lh where;
ch = required cam off-set/ height.
h = grip length (distance between inside of latch face and front of cam).
lh = body length of cam latch/lock to be used (see product table below).
Important Notes
Sold subject to pack quantity.
