Lift-Off Hinges
off-set - screw mounting - s/s
S2420 Lift-Off Hinges - In Line
bolt on - zinc, material: Zinc
Order No.
S2420.AW0110
Type
Right

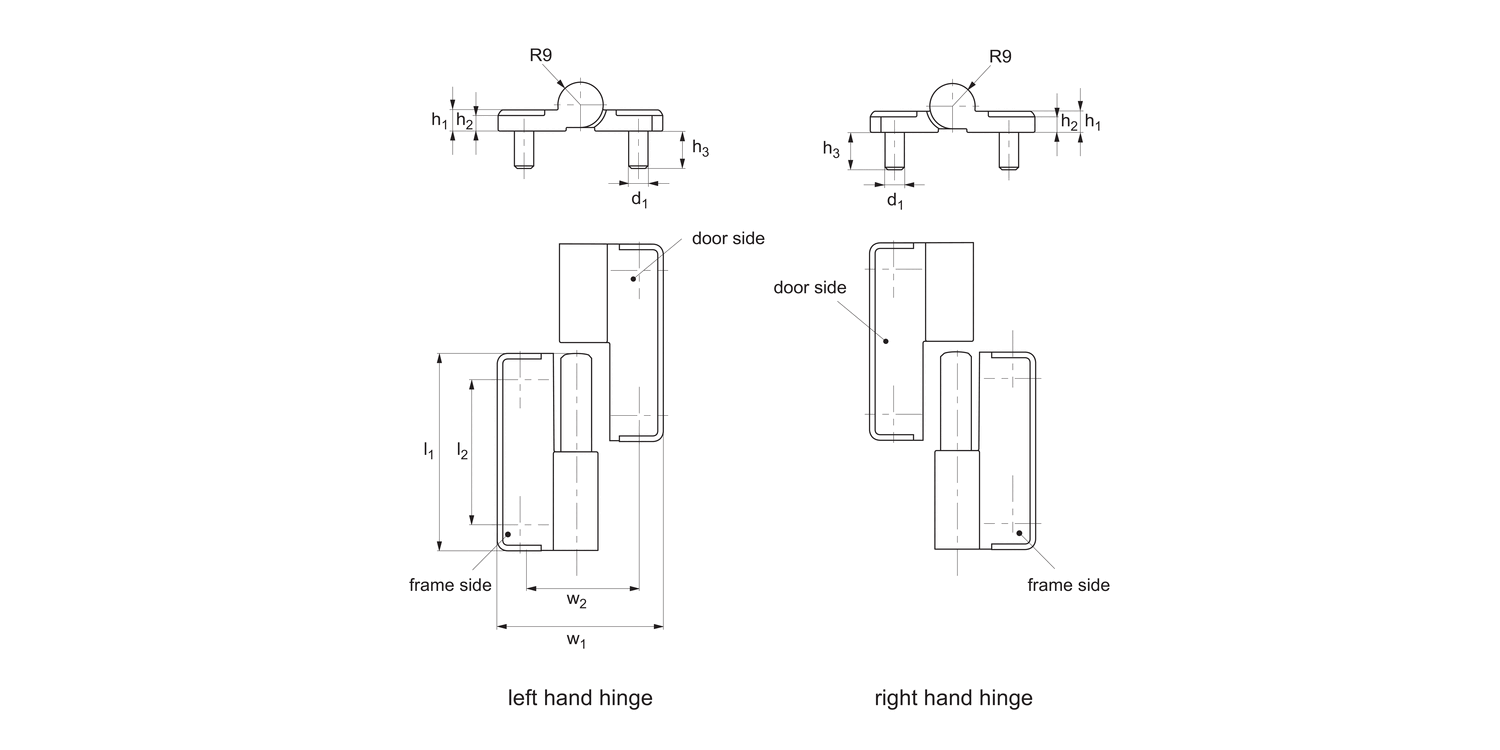

l1
80
w1
64
d1
M 8
h1
10
h2
8
h3
14
l2
60
w2
45
Fx
N
1500
Fy
N
1800
£ 13.05 per unit (click for quantity discounts)
Ready to despatch 1
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 13.05 | 0% |
| 20-49 | £ 11.75 | 10% |
| 50-99 | £ 11.09 | 15% |
| 100-499 | £ 9.79 | 25% |
| 500+ | £ 8.48 | 35% |
Technical & Application
Material
Hinge: die cast zinc, black powder coated.
Screw: stainless steel.
Technical Notes

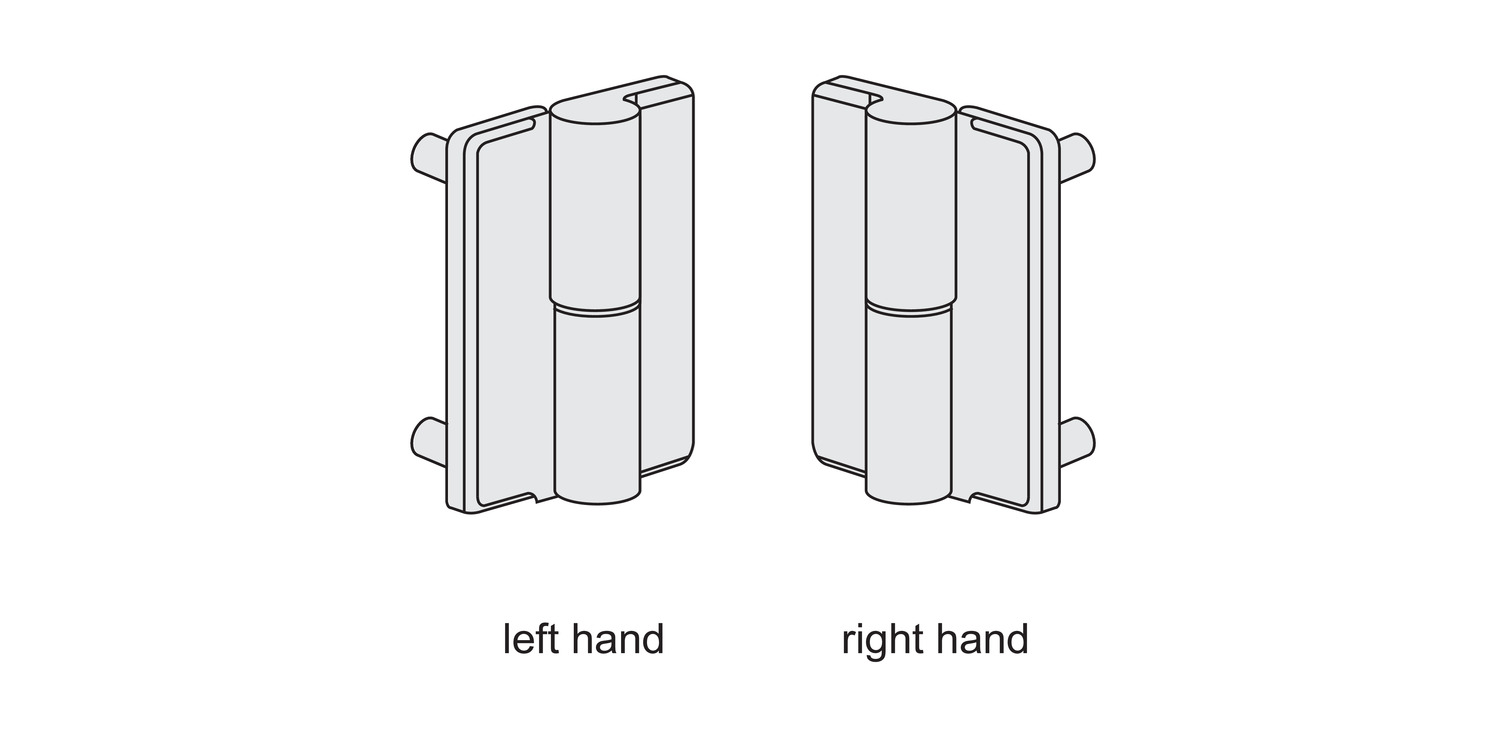

Using a left and a right handed hinge the door will not be removable, where as using two hinges of the same type the door will be removable. Opening angle 180°.
Product Datasheets
Application images
