Lift-Off Hinges
off-set - screw mounting - s/s

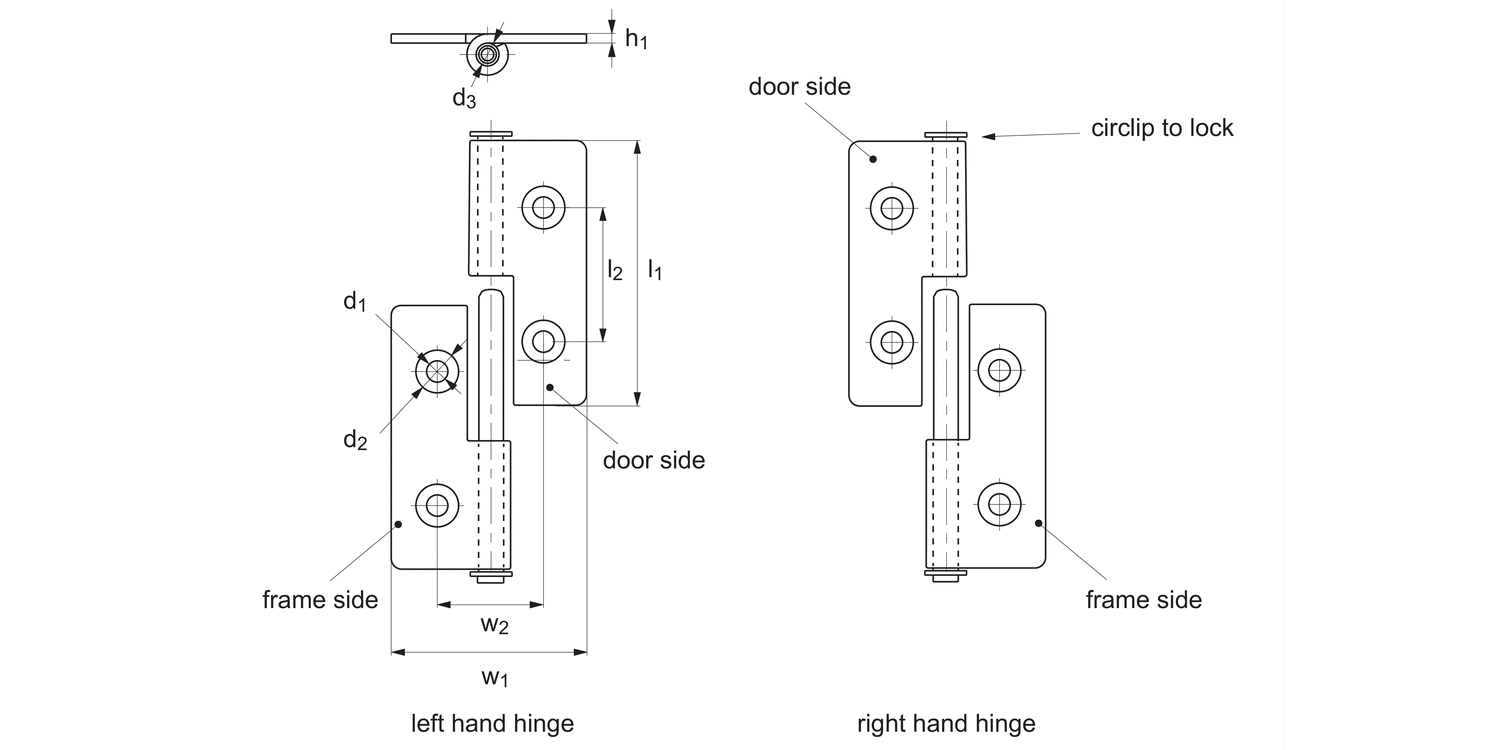

S2314 Lift-Off Hinges - Off set
screw mount - stainless steel, material: Stainless steel
Alternative products you may wish to consider
Type
Left
l1
40
w1
30
d1
3.1
d2
6.1
d3
3.5
h1
1.5
l2
20
w2
16
Fx
N
305
Fy
N
470
£ 2.82 per unit (click for quantity discounts)
Type
Right
l1
40
w1
30
d1
3.1
d2
6.1
d3
3.5
h1
1.5
l2
20
w2
16
Fx
N
305
Fy
N
470
£ 2.70 per unit (click for quantity discounts)
Type
l1
w1
d1
d2
d3
h1
l2
w2
Fx
N
Fy
N
| Price & Availability | Article | Type | l1 | w1 | d1 | d2 | d3 | h1 | l2 | w2 | Fx N | Fy N | ||||||||||||||||||
| S2314.AW0010 | Left | 40 | 30 | 3.1 | 6.1 | 3.5 | 1.5 | 20 | 16 | 305 | 470 | |||||||||||||||||||
£ 2.82 per unit (click for quantity discounts) Ready to despatch 494 Need more? Please call us.
Type Left l1 40 w1 30 d1 3.1 d2 6.1 d3 3.5 h1 1.5 l2 20 w2 16 Fx
N 305 Fy
N 470 | ||||||||||||||||||||||||||||||
| S2314.AW0020 | Right | 40 | 30 | 3.1 | 6.1 | 3.5 | 1.5 | 20 | 16 | 305 | 470 | |||||||||||||||||||
£ 2.70 per unit (click for quantity discounts) Ready to despatch 18 Need more? Please call us.
Type Right l1 40 w1 30 d1 3.1 d2 6.1 d3 3.5 h1 1.5 l2 20 w2 16 Fx
N 305 Fy
N 470 | ||||||||||||||||||||||||||||||
Technical & Application
Material
Body: stainless steel 304.
Technical Notes
Opening angle 180°.
