Glass Door Hinges
inset type - s/s

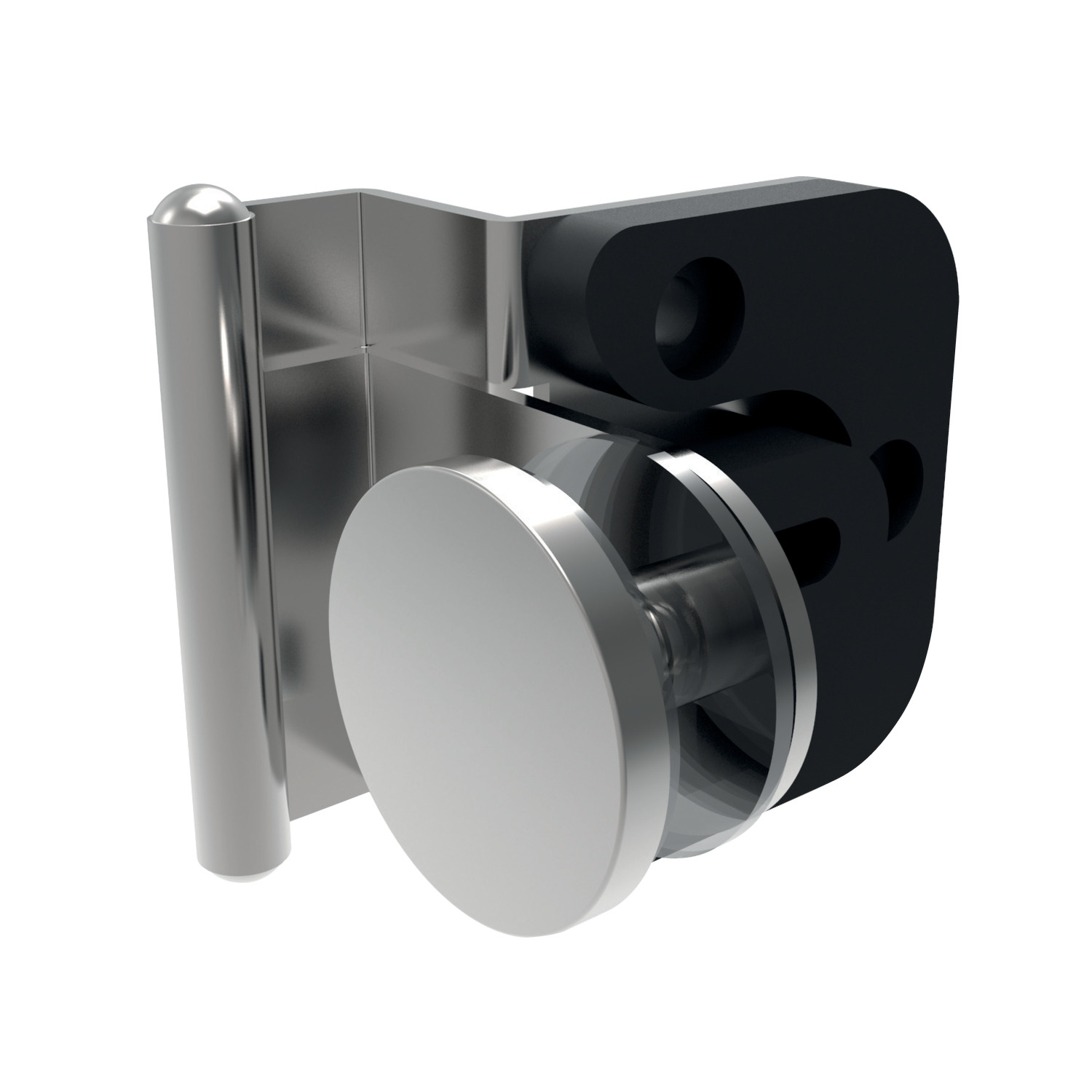

T2040 Glass Door Hinges - Half Overlay Type
with catch, material: Steel or stainless steel
Alternative products you may wish to consider
Glass thickness
mm
4 to 6
Finish
Chrome
Load capacity 2 hinges
kg
4
Body type
Steel
d1
20
d2
6.5
d3
7.0
t
2
Screw
M 3,5 x 6
Weight
g
36
£ 10.23 per unit (click for quantity discounts)
Glass thickness
mm
4 to 6
Finish
Brass
Load capacity 2 hinges
kg
4
Body type
Steel
d1
20
d2
6.5
d3
7.0
t
2
Screw
M 3,5 x 6
Weight
g
36
£ 9.63 per unit (click for quantity discounts)
Glass thickness
mm
4 to 6
Finish
Black
Load capacity 2 hinges
kg
4
Body type
Stainless
d1
21
d2
8.0
d3
8.5
t
3
Screw
M 3,0 x 6
Weight
g
32
£ 10.23 per unit (click for quantity discounts)
Glass thickness
mm
Finish
Load capacity 2 hinges
kg
Body type
d1
d2
d3
t
Screw
Weight
g
| Price & Availability | Article | Glass thickness mm | Finish | Load capacity 2 hinges kg | Body type | d1 | d2 | d3 | t | Screw | Weight g | ||||||||||||||||||
| T2040.AC0020 | 4 to 6 | Chrome | 4 | Steel | 20 | 6.5 | 7.0 | 2 | M 3,5 x 6 | 36 | |||||||||||||||||||
£ 10.23 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Glass thickness
mm 4 to 6 Finish Chrome Load capacity 2 hinges
kg 4 Body type Steel d1 20 d2 6.5 d3 7.0 t 2 Screw M 3,5 x 6 Weight
g 36 | |||||||||||||||||||||||||||||
| T2040.AC0030 | 4 to 6 | Brass | 4 | Steel | 20 | 6.5 | 7.0 | 2 | M 3,5 x 6 | 36 | |||||||||||||||||||
£ 9.63 per unit (click for quantity discounts) Ready to despatch 41 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Glass thickness
mm 4 to 6 Finish Brass Load capacity 2 hinges
kg 4 Body type Steel d1 20 d2 6.5 d3 7.0 t 2 Screw M 3,5 x 6 Weight
g 36 | |||||||||||||||||||||||||||||
| T2040.AC0040 | 4 to 6 | Black | 4 | Stainless | 21 | 8.0 | 8.5 | 3 | M 3,0 x 6 | 32 | |||||||||||||||||||
£ 10.23 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Glass thickness
mm 4 to 6 Finish Black Load capacity 2 hinges
kg 4 Body type Stainless d1 21 d2 8.0 d3 8.5 t 3 Screw M 3,0 x 6 Weight
g 32 | |||||||||||||||||||||||||||||
Technical & Application
Material
Hinge: steel or stainless steel, AISI 304, with ABS plastic body. Refer to table for plating finish.
Technical Notes
For door thickness 4 to 6mm.
Max. door size - 450w x 700h x 5mm thick. Max. door weight - 4Kg per hinge pair.

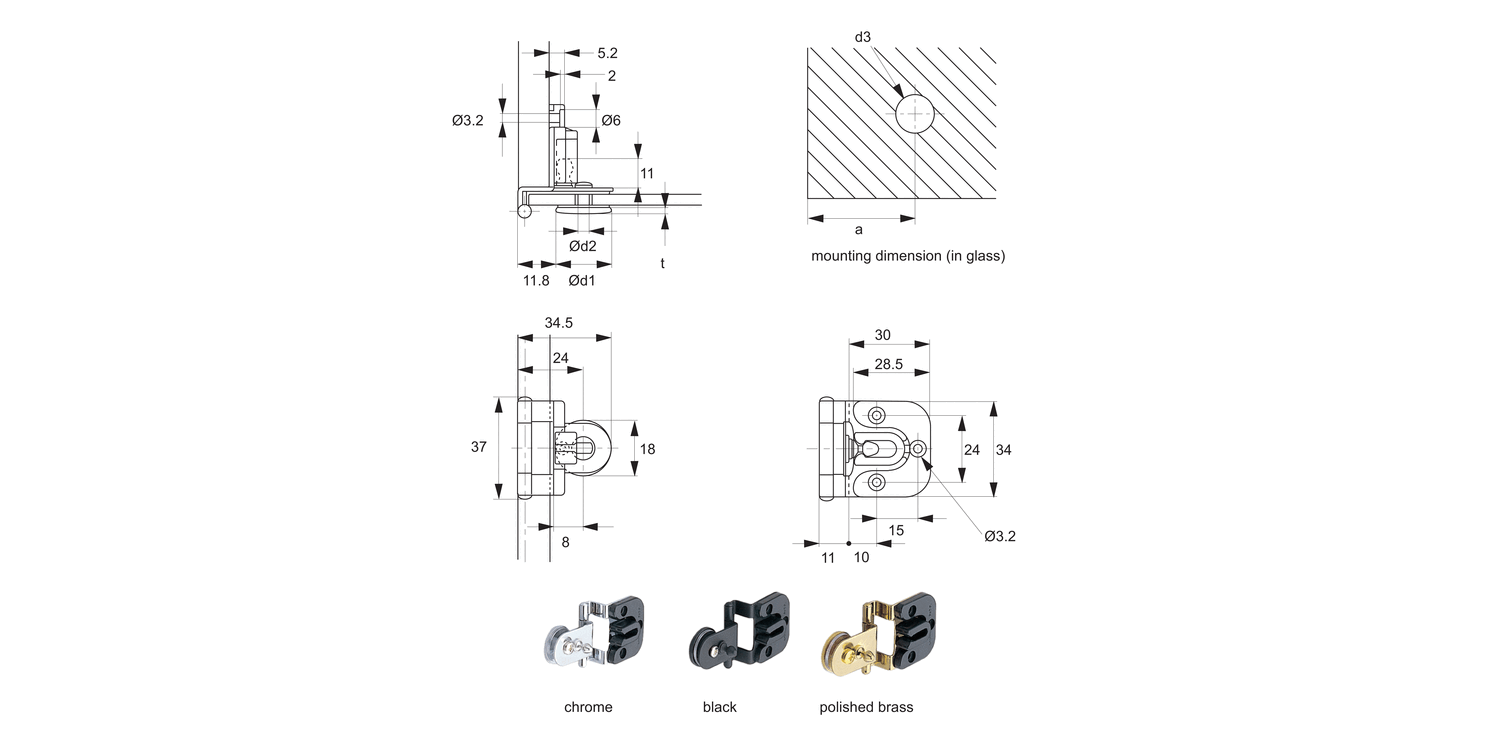

For installation dimensions see table below.
a = distance of mounting holes from glass edge, to ensure smooth door opening.
Plastic body of hinge forms a mechanical catch to hold door in closed position.
Please note, you will need to drill holes in the glass in order to fit these hinges.
Tips
Screws are not included.
Important Notes
For glass thickness:
4mm; a = 19, overlay = 8
5mm; a = 18, overlay = 7
6mm; a = 18, overlay = 6
