Glass Door Hinges
inset type - s/s
T2240 Glass Door Hinges - Overlay Type
with catch, material: Brass
Alternative products you may wish to consider
Glass thickness
mm
5 to 8
Finish
Satin Nickel
Load capacity 2 hinges
kg
15
£ 78.88 per unit (click for quantity discounts)
Glass thickness
mm
5 to 8
Finish
Chrome
Load capacity 2 hinges
kg
15
£ 76.64 per unit (click for quantity discounts)
Glass thickness
mm
5 to 8
Finish
Gold
Load capacity 2 hinges
kg
15
£ 7.54 per unit (click for quantity discounts)
Glass thickness
mm
Finish
Load capacity 2 hinges
kg
| Price & Availability | Article | Glass thickness mm | Finish | Load capacity 2 hinges kg | ||||||||||||||||||
| T2240.AC0010 | 5 to 8 | Satin Nickel | 15 | |||||||||||||||||||
£ 78.88 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Glass thickness
mm 5 to 8 Finish Satin Nickel Load capacity 2 hinges
kg 15 | ||||||||||||||||||||||
| T2240.AC0020 | 5 to 8 | Chrome | 15 | |||||||||||||||||||
£ 76.64 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Glass thickness
mm 5 to 8 Finish Chrome Load capacity 2 hinges
kg 15 | ||||||||||||||||||||||
| T2240.AC0030 | 5 to 8 | Gold | 15 | |||||||||||||||||||
£ 7.54 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Glass thickness
mm 5 to 8 Finish Gold Load capacity 2 hinges
kg 15 | ||||||||||||||||||||||
Technical & Application
Material
Hinge body: brass, in nickel, chrome or gold finish.
Glass adj. roller: polyamide, black.
Bushes & spacers: rubber, black.

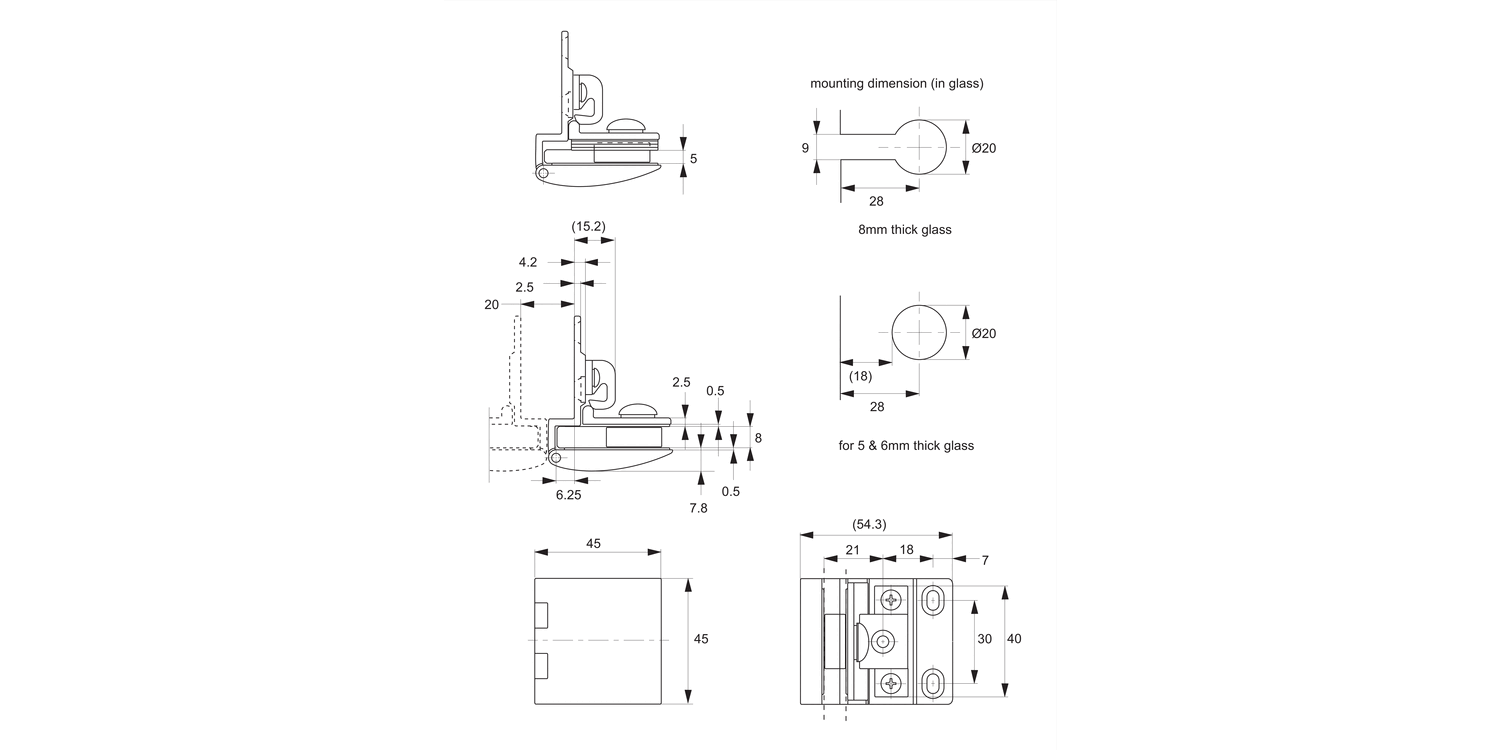

Technical Notes
6mm overlay. For door thickness 5 to 8mm. Horizontally adjustable by 2,5mm, vertical adjustment 2mm.
Max. door size - 600w x 700h x 8mm thick.
Max. door weight - 15Kg per hinge pair.
Plastic body of hinge forms a mechanical catch to hold panel/door in closed position.
Please note, you will need to drill holes in the glass in order to fit these hinges.
Important Notes
Spacers are supplied to accommodate different glass door thicknesses;
5mm glass use 3 spacers
6mm glass use 2 spacers
8mm glass no spacers required.
