Glass Door Hinges
inset type - s/s

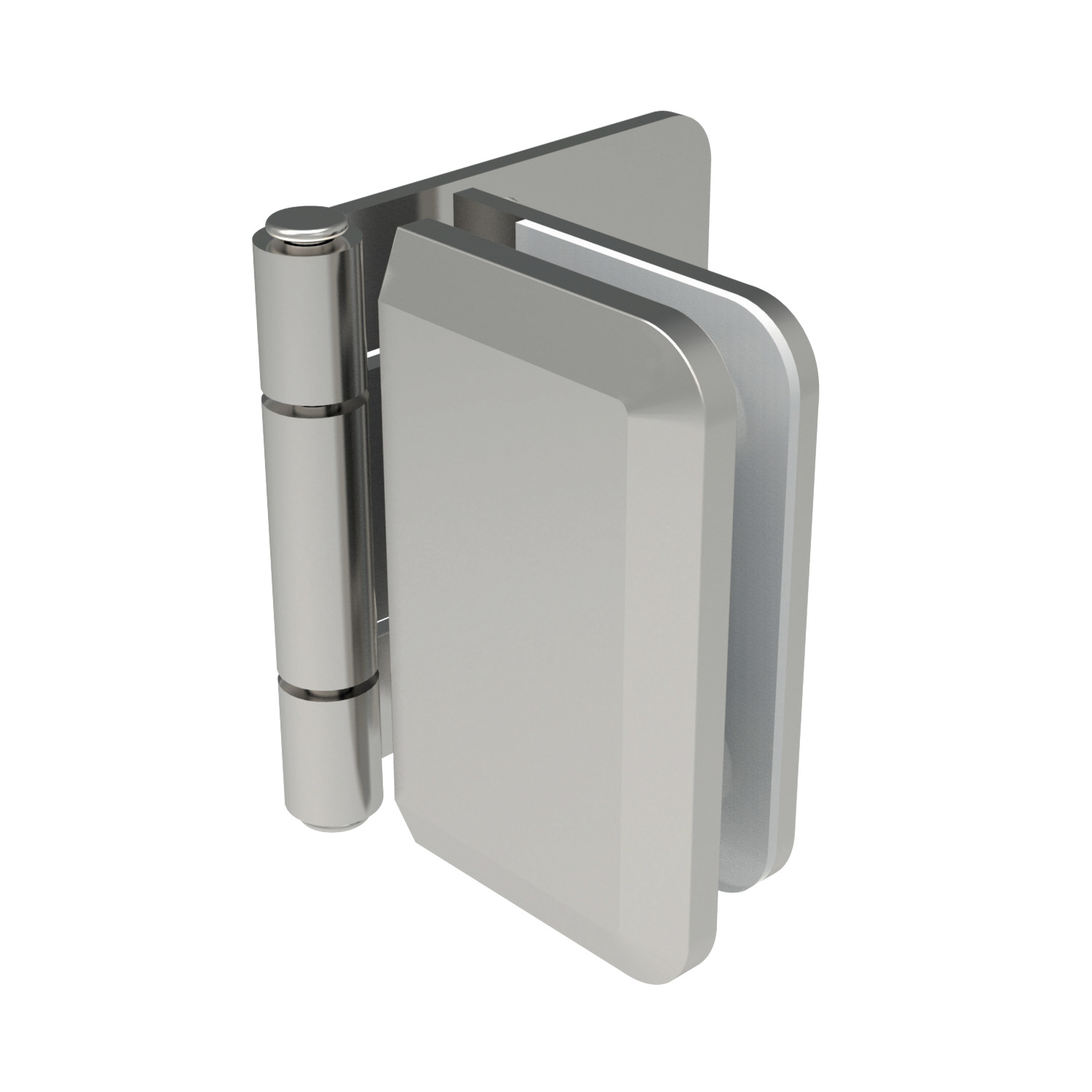

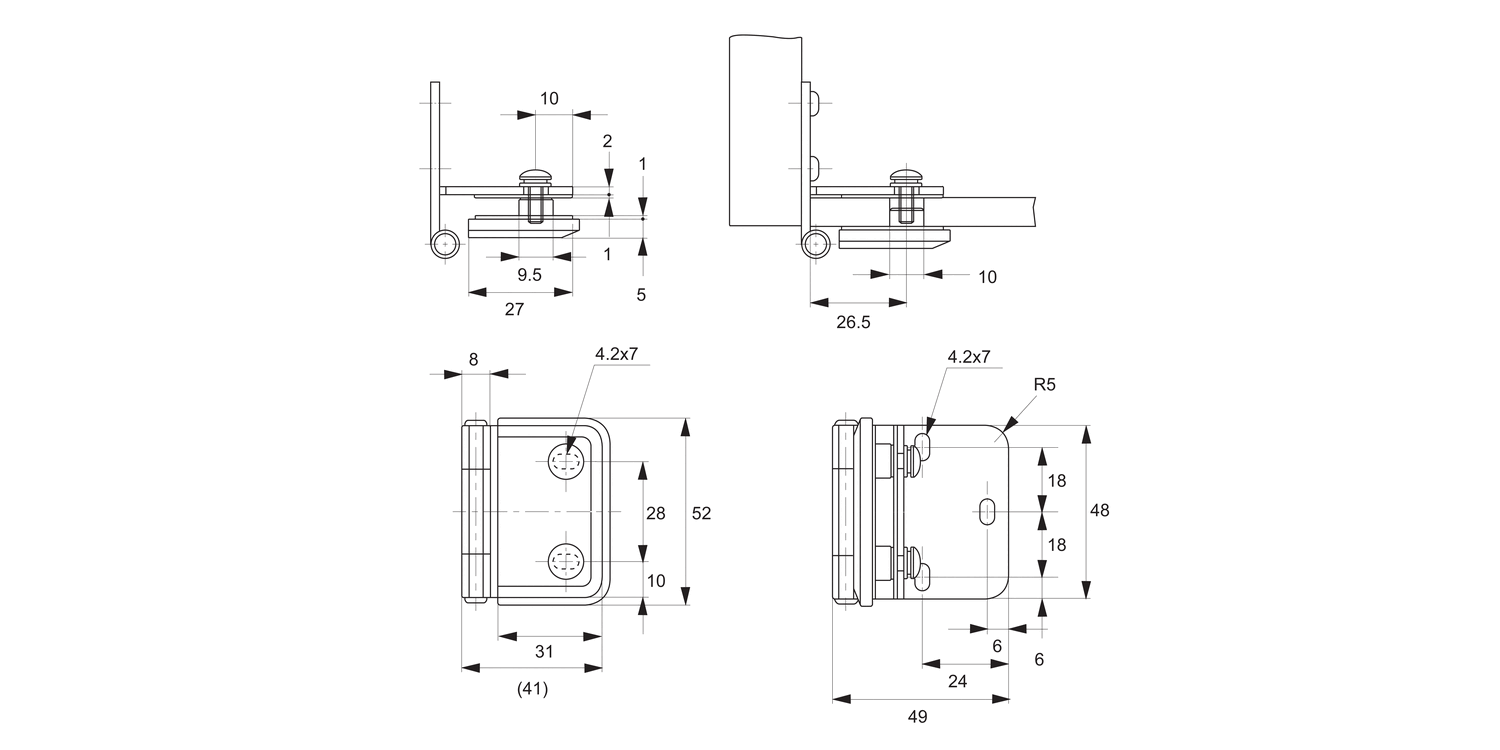

T2300 Glass Door Hinge - Inset Type
stainless steel, material: Stainless steel
Order No.
T2300.AC0010
Glass thickness
mm
5 to 8
Finish
Stainless
Load capacity
kg
12
£ 19.94 per unit (click for quantity discounts)
Ready to despatch 150
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 19.94 | 0% |
| 5-9 | £ 18.94 | 5% |
| 10-19 | £ 17.95 | 10% |
| 20-49 | £ 16.95 | 15% |
| 50+ | £ 14.96 | 25% |
Technical & Application
Material
Hinge body: stainless steel, AISI 304, polished.
Cover plate: zinc alloy, chrome plated.
Technical Notes
For door thicknesses 5 to 8mm.
Max. door size - 650w x 700h x 8mm thick. Max. door weight - 12Kg per hinge pair.
Please note, you will need to drill holes in the glass in order to fit these hinges.
