Rotary Dampers
bi-directional
Q3040 Rotary Dampers
uni- and bi-directional - continuous rotation, material: Polycarbonate
Order No.
Q3040.AW0032
Type
Without Gear
Damping direction
Anti-clockwise
Damping torque
gf·cm
300
Shaft material
Metal
Weight
g
3.2
£ 5.14 per unit (click for quantity discounts)
Ready to despatch 7
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 5.14 | 0% |
| 20-49 | £ 4.63 | 10% |
| 50-99 | £ 4.37 | 15% |
| 100-499 | £ 3.86 | 25% |
| 500+ | £ 3.34 | 35% |
Technical & Application
Material
Body: polycarbonate.
Gear: polyacetal.
Oil: silicone oil.
Technical Notes
Gear specification:
Type - standard spur gear
Tooth - involute (full)
Module - 0.8
Pressure angle - 20°
Number of teeth - 11
Pitch circle diameter - 8.8
Tips

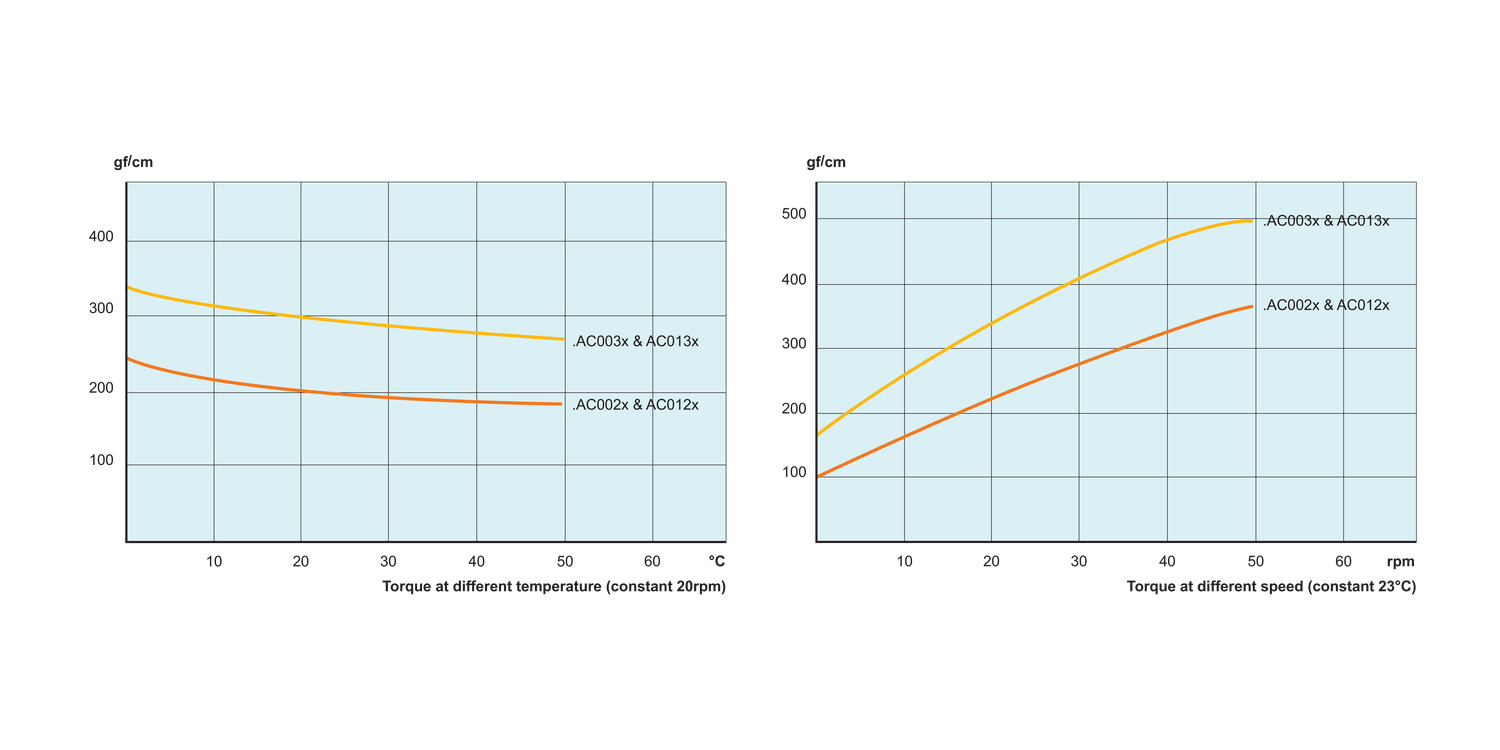

For graphs of torque at varying temperature and speed see torque closing speed graphs.
Important Notes
Rotation speed of 20rpm, at 23°C.
Up to 300gf.cm.
Values ±20%.
Max. rotation speed 50rpm.
Max. cycle rate 10 cycle/min.
Operating temperature, 0° to 50°C.
Design tested to 50,000 cycles.
Meets RoHS standards.
