Rotary Dampers
bi-directional
Q3020 Rotary Dampers
bi-directional - continuous rotation - up to 100 gf.cm, material: Polycarbonate
Alternative products you may wish to consider
Type
Without Gear
Damping torque
gf·cm
20
Weight
g
0.6
£ 4.17 per unit (click for quantity discounts)
Type
Without Gear
Damping torque
gf·cm
30
Weight
g
0.6
£ 4.69 per unit (click for quantity discounts)
Type
Without Gear
Damping torque
gf·cm
45
Weight
g
0.6
£ 4.17 per unit (click for quantity discounts)
Type
Without Gear
Damping torque
gf·cm
60
Weight
g
0.6
£ 4.17 per unit (click for quantity discounts)
Type
Without Gear
Damping torque
gf·cm
100
Weight
g
0.6
£ 4.12 per unit (click for quantity discounts)
£ 4.84 per unit (click for quantity discounts)
£ 4.84 per unit (click for quantity discounts)
£ 4.84 per unit (click for quantity discounts)
£ 4.84 per unit (click for quantity discounts)
Type
With Gear
Damping torque
gf·cm
100
Weight
g
0.8
£ 4.84 per unit (click for quantity discounts)
Type
Damping torque
gf·cm
Weight
g
| Price & Availability | Article | Type | Damping torque gf·cm | Weight g | ||||||||||||||||||
| Q3020.AC0020 | Without Gear | 20 | 0.6 | |||||||||||||||||||
£ 4.17 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Without Gear Damping torque
gf·cm 20 Weight
g 0.6 | ||||||||||||||||||||||
| Q3020.AC0030 | Without Gear | 30 | 0.6 | |||||||||||||||||||
£ 4.69 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Without Gear Damping torque
gf·cm 30 Weight
g 0.6 | ||||||||||||||||||||||
| Q3020.AC0040 | Without Gear | 45 | 0.6 | |||||||||||||||||||
£ 4.17 per unit (click for quantity discounts) Ready to despatch 111 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Without Gear Damping torque
gf·cm 45 Weight
g 0.6 | ||||||||||||||||||||||
| Q3020.AC0060 | Without Gear | 60 | 0.6 | |||||||||||||||||||
£ 4.17 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Without Gear Damping torque
gf·cm 60 Weight
g 0.6 | ||||||||||||||||||||||
| Q3020.AC0100 | Without Gear | 100 | 0.6 | |||||||||||||||||||
£ 4.12 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Without Gear Damping torque
gf·cm 100 Weight
g 0.6 | ||||||||||||||||||||||
| Q3020.AC0120 | With Gear | 20 | 0.8 | |||||||||||||||||||
£ 4.84 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type With Gear Damping torque
gf·cm 20 Weight
g 0.8 | ||||||||||||||||||||||
| Q3020.AC0130 | With Gear | 30 | 0.8 | |||||||||||||||||||
£ 4.84 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type With Gear Damping torque
gf·cm 30 Weight
g 0.8 | ||||||||||||||||||||||
| Q3020.AC0140 | With Gear | 45 | 0.8 | |||||||||||||||||||
£ 4.84 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type With Gear Damping torque
gf·cm 45 Weight
g 0.8 | ||||||||||||||||||||||
| Q3020.AC0160 | With Gear | 60 | 0.8 | |||||||||||||||||||
£ 4.84 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type With Gear Damping torque
gf·cm 60 Weight
g 0.8 | ||||||||||||||||||||||
| Q3020.AC0200 | With Gear | 100 | 0.8 | |||||||||||||||||||
£ 4.84 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type With Gear Damping torque
gf·cm 100 Weight
g 0.8 | ||||||||||||||||||||||
Technical & Application
Material
Body: polycarbonate
Shaft: polyacetal
Gear: polyacetal
Technical Notes
Gear Specification:
Type - Standard Spur Gear
Tooth - Involute (full)
Module - 0.5mm
Pressure Angle - 20°
Number of Teeth - 14
Pitch Circle Diameter - 7mm
Temperature range 0° to +50°c.
Tips
Create smooth movement and dampening in applications such as loading trays, arm rests and storage compartments.

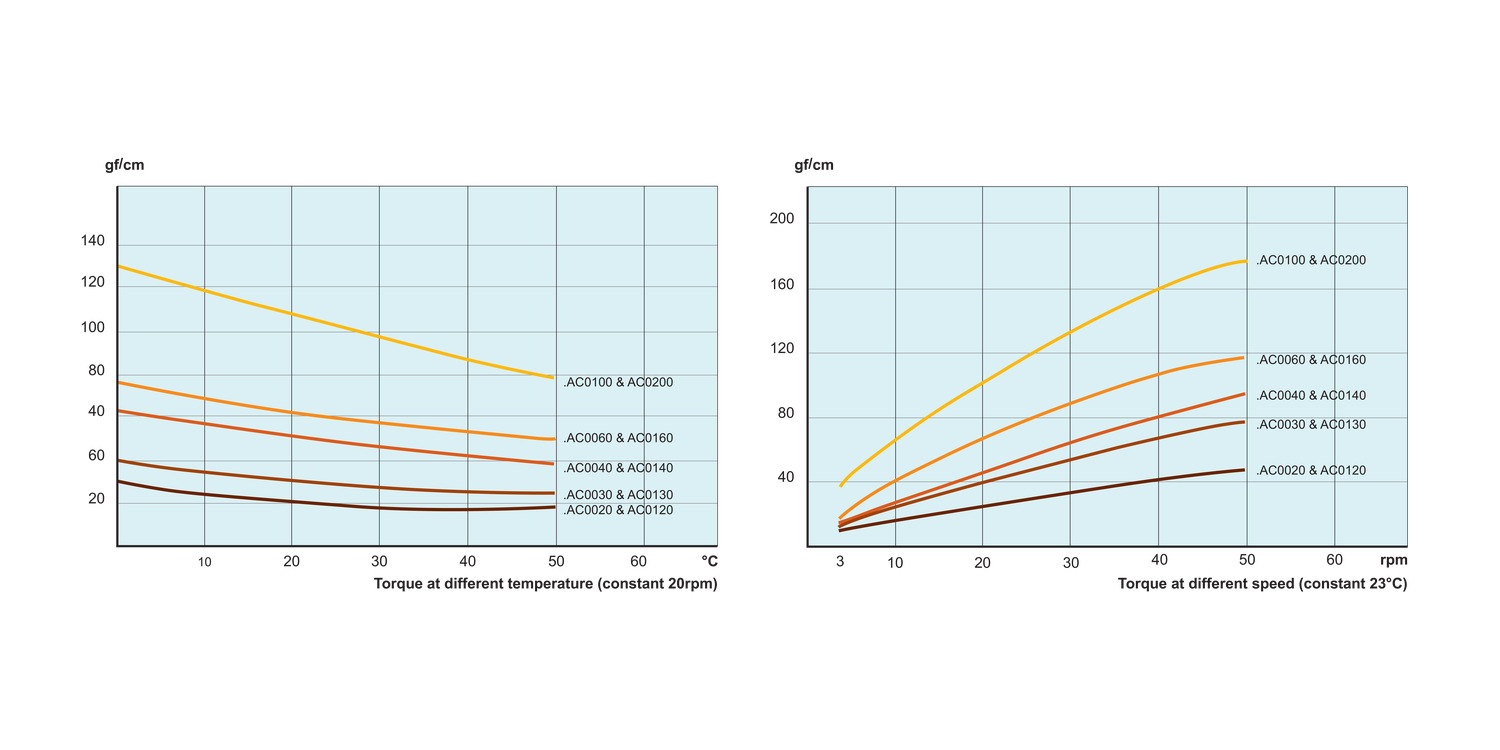

For graphs of torque at varying temperature and speed, see Torque Closing Speed Graphs earlier in this section.
Product Datasheets
CAD files
Application images
