Rotary Dampers
bi-directional
Q3042 Rotary Dampers
bi-directional - continuous rotation - up to 400gf.cm - snap-in, material: Polycetal and polycarbonate
Alternative products you may wish to consider
Damping direction
Anti-clockwise
Torque
gf·cm
80-120
No. of teeth
11
Gear module
0.6
Pitch circle diameter P.C.D
8.8
Pressure angle
20

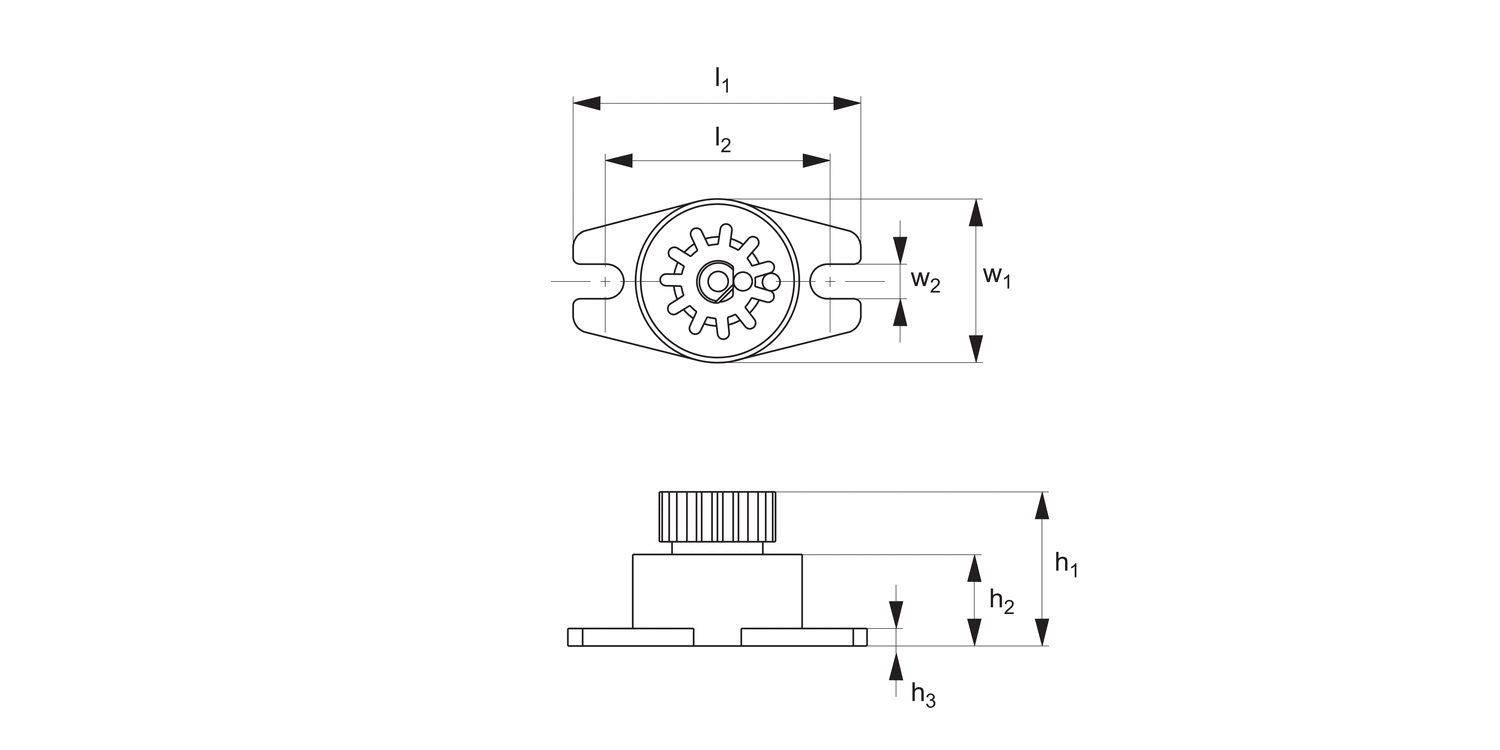

l1
27.5
h1
14
h2
8.5
h3
1.5
w1
15
w2
3.2
£ 5.85 per unit (click for quantity discounts)
Damping direction
Clockwise
Torque
gf·cm
80-120
No. of teeth
11
Gear module
0.6
Pitch circle diameter P.C.D
8.8
Pressure angle
20
l1
27.5
h1
14
h2
8.5
h3
1.5
w1
15
w2
3.2
£ 5.58 per unit (click for quantity discounts)
Damping direction
Anti-clockwise
Torque
gf·cm
60-80
No. of teeth
11
Gear module
0.6
Pitch circle diameter P.C.D
8.8
Pressure angle
20
l1
27.5
h1
14
h2
8.5
h3
1.5
w1
15
w2
3.2
Damping direction
Clockwise
Torque
gf·cm
60-80
No. of teeth
11
Gear module
0.6
Pitch circle diameter P.C.D
8.8
Pressure angle
20
l1
27.5
h1
14
h2
8.5
h3
1.5
w1
15
w2
3.2
Damping direction
Torque
gf·cm
No. of teeth
Gear module
Pitch circle diameter P.C.D
Pressure angle
l1
h1
h2
h3
w1
w2
| Price & Availability | Article | Damping direction | Torque gf·cm | No. of teeth | Gear module | Pitch circle diameter P.C.D | Pressure angle | l1 | h1 | h2 | h3 | w1 | w2 | ||||||||||||||||||
| Q3042.AC0400 | Anti-clockwise | 80-120 | 11 | 0.6 | 8.8 | 20 | 27.5 | 14 | 8.5 | 1.5 | 15 | 3.2 | |||||||||||||||||||
£ 5.85 per unit (click for quantity discounts) Ready to despatch 182 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Damping direction Anti-clockwise Torque
gf·cm 80-120 No. of teeth 11 Gear module 0.6 Pitch circle diameter P.C.D 8.8 Pressure angle 20 l1 27.5 h1 14 h2 8.5 h3 1.5 w1 15 w2 3.2 | |||||||||||||||||||||||||||||||
| Q3042.AC0410 | Clockwise | 80-120 | 11 | 0.6 | 8.8 | 20 | 27.5 | 14 | 8.5 | 1.5 | 15 | 3.2 | |||||||||||||||||||
£ 5.58 per unit (click for quantity discounts) Ready to despatch 199 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Damping direction Clockwise Torque
gf·cm 80-120 No. of teeth 11 Gear module 0.6 Pitch circle diameter P.C.D 8.8 Pressure angle 20 l1 27.5 h1 14 h2 8.5 h3 1.5 w1 15 w2 3.2 | |||||||||||||||||||||||||||||||
| Q3042.AC0420 | Anti-clockwise | 60-80 | 11 | 0.6 | 8.8 | 20 | 27.5 | 14 | 8.5 | 1.5 | 15 | 3.2 | |||||||||||||||||||
Ready to despatch 0 Need more? Please call us.
Damping direction Anti-clockwise Torque
gf·cm 60-80 No. of teeth 11 Gear module 0.6 Pitch circle diameter P.C.D 8.8 Pressure angle 20 l1 27.5 h1 14 h2 8.5 h3 1.5 w1 15 w2 3.2 | |||||||||||||||||||||||||||||||
| Q3042.AC0430 | Clockwise | 60-80 | 11 | 0.6 | 8.8 | 20 | 27.5 | 14 | 8.5 | 1.5 | 15 | 3.2 | |||||||||||||||||||
Ready to despatch 0 Need more? Please call us.
Damping direction Clockwise Torque
gf·cm 60-80 No. of teeth 11 Gear module 0.6 Pitch circle diameter P.C.D 8.8 Pressure angle 20 l1 27.5 h1 14 h2 8.5 h3 1.5 w1 15 w2 3.2 | |||||||||||||||||||||||||||||||
Technical & Application
Material
Polycetal (POM), polycarbonate (PC)
Tips
Create smooth movement and dampening in applications such as loading trays, arm rests and storage compartments. Subject to minimum order quantity.
