Rotary Dampers
bi-directional
Q3060 Rotary Dampers
uni- and bi-directional - continuous rotation - up to 1500 gf.cm, material: Polycarbonate
Alternative products you may wish to consider
Type
w/o Gear
Damping direction
Clockwise
Torque
gf·cm
500
Shaft type
Polyacetal
Weight
g
11.8
£ 37.09 per unit (click for quantity discounts)
Type
w/o Gear
Damping direction
Anti-Clockwise
Torque
gf·cm
500
Shaft type
Polyacetal
Weight
g
11.8
£ 37.09 per unit (click for quantity discounts)
Type
w/o Gear
Damping direction
Bi-Directional
Torque
gf·cm
500
Shaft type
Polyacetal
Weight
g
8.3
£ 32.37 per unit (click for quantity discounts)
Type
w/o Gear
Damping direction
Clockwise
Torque
gf·cm
1000
Shaft type
Polyacetal
Weight
g
11.8
£ 37.09 per unit (click for quantity discounts)
Type
w/o Gear
Damping direction
Anti-Clockwise
Torque
gf·cm
1000
Shaft type
Polyacetal
Weight
g
11.8
£ 37.09 per unit (click for quantity discounts)
Type
w/o Gear
Damping direction
Bi-Directional
Torque
gf·cm
1000
Shaft type
Polyacetal
Weight
g
8.3
£ 32.37 per unit (click for quantity discounts)
Type
w/o Gear
Damping direction
Clockwise
Torque
gf·cm
1500
Shaft type
Polyacetal
Weight
g
11.8
£ 37.09 per unit (click for quantity discounts)
Type
w/o Gear
Damping direction
Anti-Clockwise
Torque
gf·cm
1500
Shaft type
Polyacetal
Weight
g
11.8
£ 37.09 per unit (click for quantity discounts)
Type
w/o Gear
Damping direction
Bi-Directional
Torque
gf·cm
1500
Shaft type
Polyacetal
Weight
g
8.3
£ 32.37 per unit (click for quantity discounts)
Type
with Gear
Damping direction
Clockwise
Torque
gf·cm
500
Shaft type
Polyacetal
Weight
g
11.8
£ 38.83 per unit (click for quantity discounts)
Type
with Gear
Damping direction
Anti-Clockwise
Torque
gf·cm
500
Shaft type
Polyacetal
Weight
g
11.8
£ 38.22 per unit (click for quantity discounts)
Type
with Gear
Damping direction
Bi-Directional
Torque
gf·cm
500
Shaft type
Polyacetal
Weight
g
8.3
£ 33.50 per unit (click for quantity discounts)
Type
with Gear
Damping direction
Clockwise
Torque
gf·cm
1000
Shaft type
Polyacetal
Weight
g
11.8
£ 38.22 per unit (click for quantity discounts)
Type
with Gear
Damping direction
Anti-Clockwise
Torque
gf·cm
1000
Shaft type
Polyacetal
Weight
g
11.8
£ 38.22 per unit (click for quantity discounts)
Type
with Gear
Damping direction
Bi-Directional
Torque
gf·cm
1000
Shaft type
Polyacetal
Weight
g
8.3
£ 33.50 per unit (click for quantity discounts)
Type
with Gear
Damping direction
Clockwise
Torque
gf·cm
1500
Shaft type
Polyacetal
Weight
g
11.8
£ 38.83 per unit (click for quantity discounts)
Type
with Gear
Damping direction
Anti-Clockwise
Torque
gf·cm
1500
Shaft type
Polyacetal
Weight
g
11.8
£ 38.83 per unit (click for quantity discounts)
Type
with Gear
Damping direction
Bi-Directional
Torque
gf·cm
1500
Shaft type
Polyacetal
Weight
g
8.3
£ 33.50 per unit (click for quantity discounts)
Type
Damping direction
Torque
gf·cm
Shaft type
Weight
g
| Price & Availability | Article | Type | Damping direction | Torque gf·cm | Shaft type | Weight g | ||||||||||||||||||
| Q3060.AC0005 | w/o Gear | Clockwise | 500 | Polyacetal | 11.8 | |||||||||||||||||||
£ 37.09 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type w/o Gear Damping direction Clockwise Torque
gf·cm 500 Shaft type Polyacetal Weight
g 11.8 | ||||||||||||||||||||||||
| Q3060.AC0006 | w/o Gear | Anti-Clockwise | 500 | Polyacetal | 11.8 | |||||||||||||||||||
£ 37.09 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type w/o Gear Damping direction Anti-Clockwise Torque
gf·cm 500 Shaft type Polyacetal Weight
g 11.8 | ||||||||||||||||||||||||
| Q3060.AC0007 | w/o Gear | Bi-Directional | 500 | Polyacetal | 8.3 | |||||||||||||||||||
£ 32.37 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type w/o Gear Damping direction Bi-Directional Torque
gf·cm 500 Shaft type Polyacetal Weight
g 8.3 | ||||||||||||||||||||||||
| Q3060.AC0010 | w/o Gear | Clockwise | 1000 | Polyacetal | 11.8 | |||||||||||||||||||
£ 37.09 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type w/o Gear Damping direction Clockwise Torque
gf·cm 1000 Shaft type Polyacetal Weight
g 11.8 | ||||||||||||||||||||||||
| Q3060.AC0011 | w/o Gear | Anti-Clockwise | 1000 | Polyacetal | 11.8 | |||||||||||||||||||
£ 37.09 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type w/o Gear Damping direction Anti-Clockwise Torque
gf·cm 1000 Shaft type Polyacetal Weight
g 11.8 | ||||||||||||||||||||||||
| Q3060.AC0012 | w/o Gear | Bi-Directional | 1000 | Polyacetal | 8.3 | |||||||||||||||||||
£ 32.37 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type w/o Gear Damping direction Bi-Directional Torque
gf·cm 1000 Shaft type Polyacetal Weight
g 8.3 | ||||||||||||||||||||||||
| Q3060.AC0015 | w/o Gear | Clockwise | 1500 | Polyacetal | 11.8 | |||||||||||||||||||
£ 37.09 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type w/o Gear Damping direction Clockwise Torque
gf·cm 1500 Shaft type Polyacetal Weight
g 11.8 | ||||||||||||||||||||||||
| Q3060.AC0016 | w/o Gear | Anti-Clockwise | 1500 | Polyacetal | 11.8 | |||||||||||||||||||
£ 37.09 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type w/o Gear Damping direction Anti-Clockwise Torque
gf·cm 1500 Shaft type Polyacetal Weight
g 11.8 | ||||||||||||||||||||||||
| Q3060.AC0017 | w/o Gear | Bi-Directional | 1500 | Polyacetal | 8.3 | |||||||||||||||||||
£ 32.37 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type w/o Gear Damping direction Bi-Directional Torque
gf·cm 1500 Shaft type Polyacetal Weight
g 8.3 | ||||||||||||||||||||||||
| Q3060.AC0405 | with Gear | Clockwise | 500 | Polyacetal | 11.8 | |||||||||||||||||||
£ 38.83 per unit (click for quantity discounts) Ready to despatch 884 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type with Gear Damping direction Clockwise Torque
gf·cm 500 Shaft type Polyacetal Weight
g 11.8 | ||||||||||||||||||||||||
| Q3060.AC0406 | with Gear | Anti-Clockwise | 500 | Polyacetal | 11.8 | |||||||||||||||||||
£ 38.22 per unit (click for quantity discounts) Ready to despatch 6 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type with Gear Damping direction Anti-Clockwise Torque
gf·cm 500 Shaft type Polyacetal Weight
g 11.8 | ||||||||||||||||||||||||
| Q3060.AC0407 | with Gear | Bi-Directional | 500 | Polyacetal | 8.3 | |||||||||||||||||||
£ 33.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type with Gear Damping direction Bi-Directional Torque
gf·cm 500 Shaft type Polyacetal Weight
g 8.3 | ||||||||||||||||||||||||
| Q3060.AC0410 | with Gear | Clockwise | 1000 | Polyacetal | 11.8 | |||||||||||||||||||
£ 38.22 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type with Gear Damping direction Clockwise Torque
gf·cm 1000 Shaft type Polyacetal Weight
g 11.8 | ||||||||||||||||||||||||
| Q3060.AC0411 | with Gear | Anti-Clockwise | 1000 | Polyacetal | 11.8 | |||||||||||||||||||
£ 38.22 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type with Gear Damping direction Anti-Clockwise Torque
gf·cm 1000 Shaft type Polyacetal Weight
g 11.8 | ||||||||||||||||||||||||
| Q3060.AC0412 | with Gear | Bi-Directional | 1000 | Polyacetal | 8.3 | |||||||||||||||||||
£ 33.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type with Gear Damping direction Bi-Directional Torque
gf·cm 1000 Shaft type Polyacetal Weight
g 8.3 | ||||||||||||||||||||||||
| Q3060.AC0415 | with Gear | Clockwise | 1500 | Polyacetal | 11.8 | |||||||||||||||||||
£ 38.83 per unit (click for quantity discounts) Ready to despatch 259 Need more? Please call us.
Type with Gear Damping direction Clockwise Torque
gf·cm 1500 Shaft type Polyacetal Weight
g 11.8 | ||||||||||||||||||||||||
| Q3060.AC0416 | with Gear | Anti-Clockwise | 1500 | Polyacetal | 11.8 | |||||||||||||||||||
£ 38.83 per unit (click for quantity discounts) Ready to despatch 259 Need more? Please call us.
Type with Gear Damping direction Anti-Clockwise Torque
gf·cm 1500 Shaft type Polyacetal Weight
g 11.8 | ||||||||||||||||||||||||
| Q3060.AC0417 | with Gear | Bi-Directional | 1500 | Polyacetal | 8.3 | |||||||||||||||||||
£ 33.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type with Gear Damping direction Bi-Directional Torque
gf·cm 1500 Shaft type Polyacetal Weight
g 8.3 | ||||||||||||||||||||||||
Technical & Application
Material
Body: polycarbonate
Shaft: polyacetal
Gear: polyacetal
Technical Notes
Gear specification:
Type - Modified Spur Gear
Tooth - Involute (full)
Module - 1.0mm
Pressure Angle - 20°
Number of Teeth - 12
Pitch Circle Diameter - 12mm
Temperature Range 0° to +50°C.
Tips

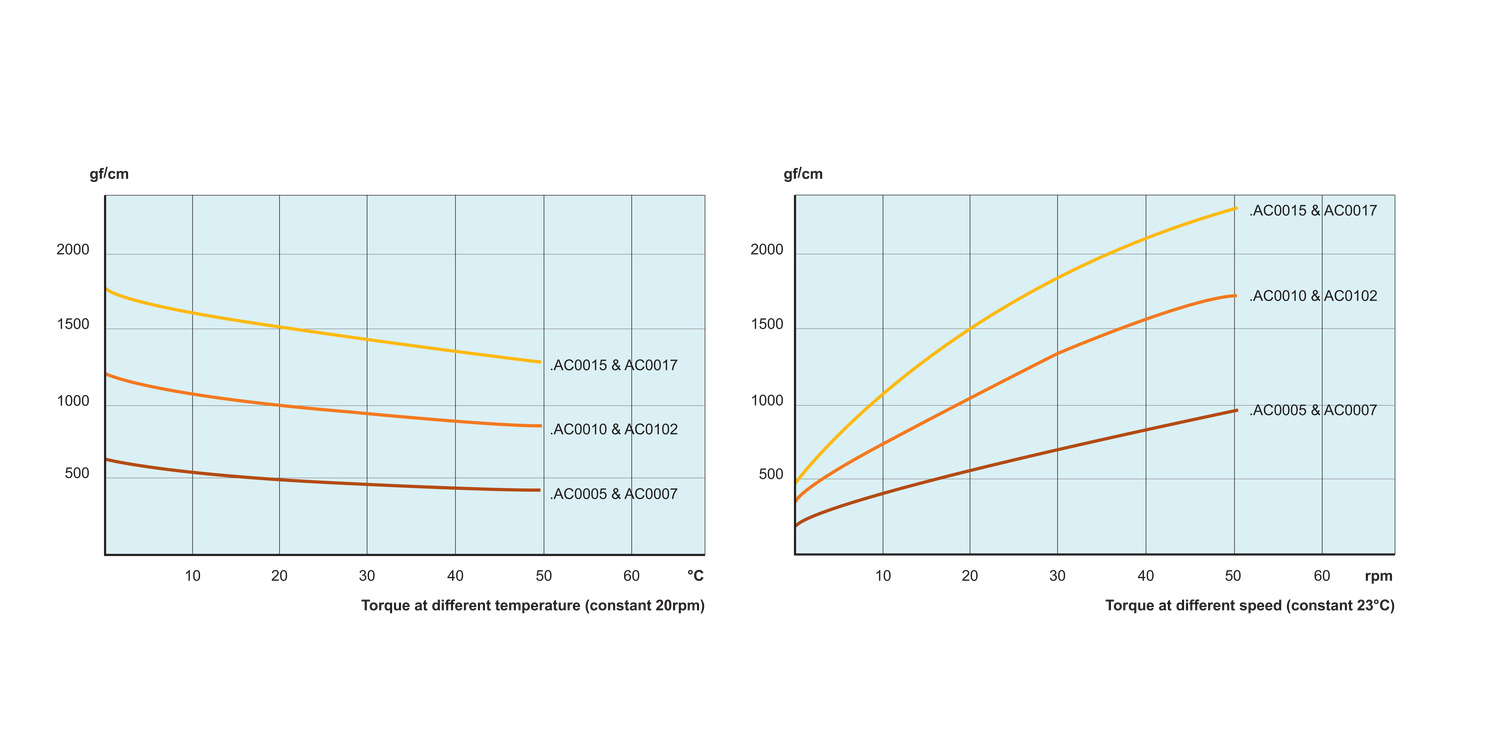

For graphs of torque at varying temperature and speed, see Torque Closing Speed Graphs earlier in this section.
