Rotary Dampers
bi-directional
Q3028 Rotary Dampers
bi-directional - continuous rotation - up to 50gf.cm, material: Polycetal and polycarbonate
Alternative products you may wish to consider
Type
Torque
gf·cm
No. of teeth
Gear module
Pitch circle diameter P.C.D
| Price & Availability | Article | Type | Torque gf·cm | No. of teeth | Gear module | Pitch circle diameter P.C.D | ||||||||||||||||||
| Q3028.AC0050 | With gear | 15-50 | 11 | 0.6 | 6.6 | |||||||||||||||||||
£ 2.73 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type With gear Torque
gf·cm 15-50 No. of teeth 11 Gear module 0.6 Pitch circle diameter P.C.D 6.6 | ||||||||||||||||||||||||

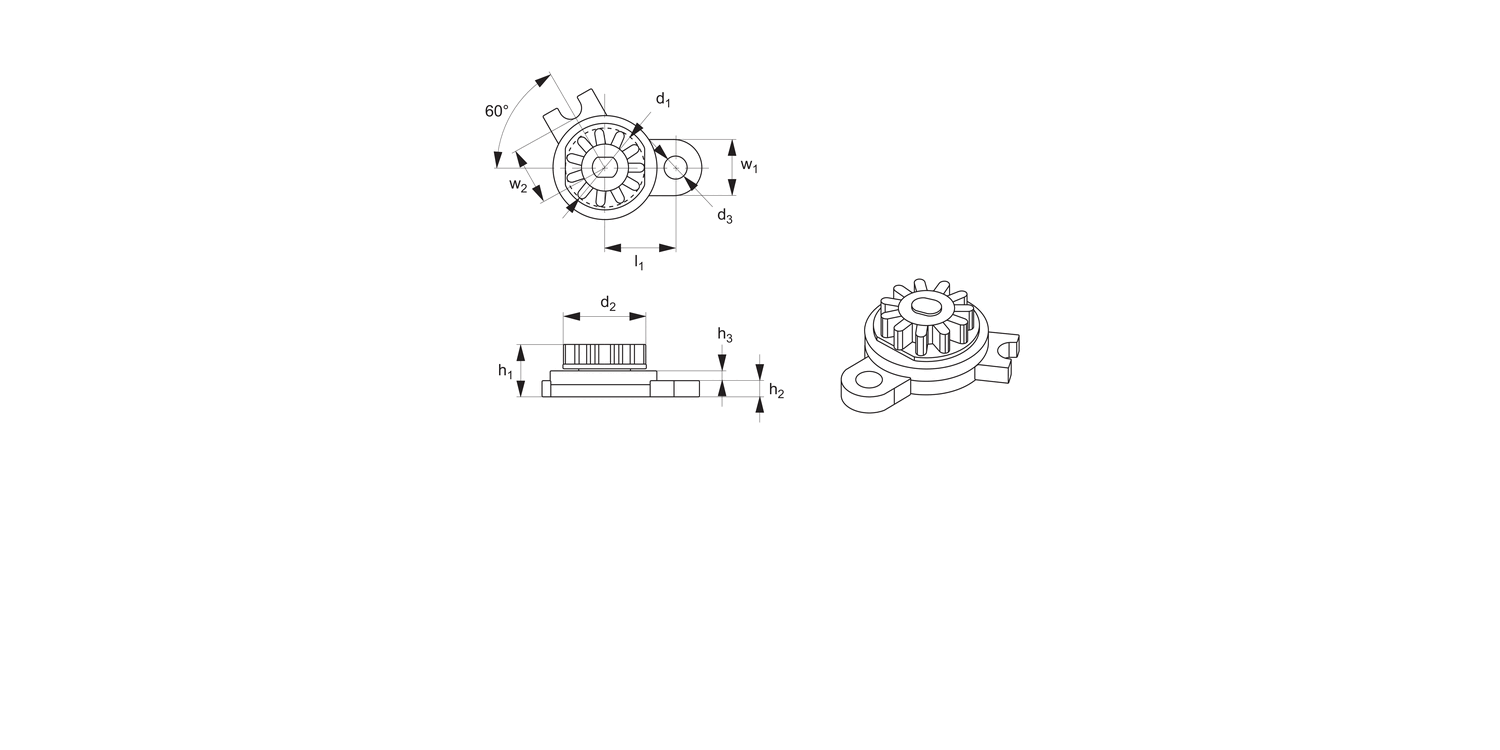

Pressure angle
l1
d1
d2
d3
h1
h2
h3
w1
w2
Angle
| Price & Availability | Article | Pressure angle | l1 | d1 | d2 | d3 | h1 | h2 | h3 | w1 | w2 | Angle | ||||||||||||||||||
| Q3028.AC0050 | 20° | 7 | 7.8 | 10.2 | 2.2 | 5 | 2.5 | 1.5 | 5.0 | 5.8 | 60° | |||||||||||||||||||
£ 2.73 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Pressure angle 20° l1 7 d1 7.8 d2 10.2 d3 2.2 h1 5 h2 2.5 h3 1.5 w1 5.0 w2 5.8 Angle 60° | ||||||||||||||||||||||||||||||
Technical & Application
Material
Polycarbonate (PC), polycetal (POM).
Tips
Create smooth movement and dampening in applications such as loading trays, arm rests and storage compartments. Subject to minimum order quantity.
