Q3044 Rotary Dampers

bi-directional - continuous rotation - up to 400gf.cm - snap-in, material: Thermoplastic and polycetal

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Rotary Dampers
bi-directional

Rotary Dampers
bi-directional

Rotary Dampers
bi-directional

Rotary Dampers
bi-directional

Rotary Dampers
bi-directional

Rotary Dampers
bi-directional

Rotary Dampers
bi-directional

Rotary Dampers
bi-directional

Rotary Dampers
bi-directional

Rotary Dampers
bi-directional

Rotary Dampers
bi-directional

Rotary Dampers
uni- and bi-directional

Rotary Dampers
bi-directional

Rotary Dampers
bi-directional

Rotary Dampers
uni- and bi-directional

Toothed Rack
for use with rotary dampers



Select all

Type

Torque gf·cm

No. of teeth

Gear module

Pitch circle diameter P.C.D

Price & Availability	Article	Type	Torque gf·cm	No. of teeth	Gear module	Pitch circle diameter P.C.D
	Q3044.AC0400	With gear	100-400	11	0.8	8.8
£ 3.13 per unit (click for quantity discounts) Ready to despatch 67 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 3.13 0% 10-19 £ 2.82 10% 20-49 £ 2.66 15% 50-99 £ 2.50 20% 100+ £ 2.35 25% Type With gear Torque gf·cm 100-400 No. of teeth 11 Gear module 0.8 Pitch circle diameter P.C.D 8.8 more info »

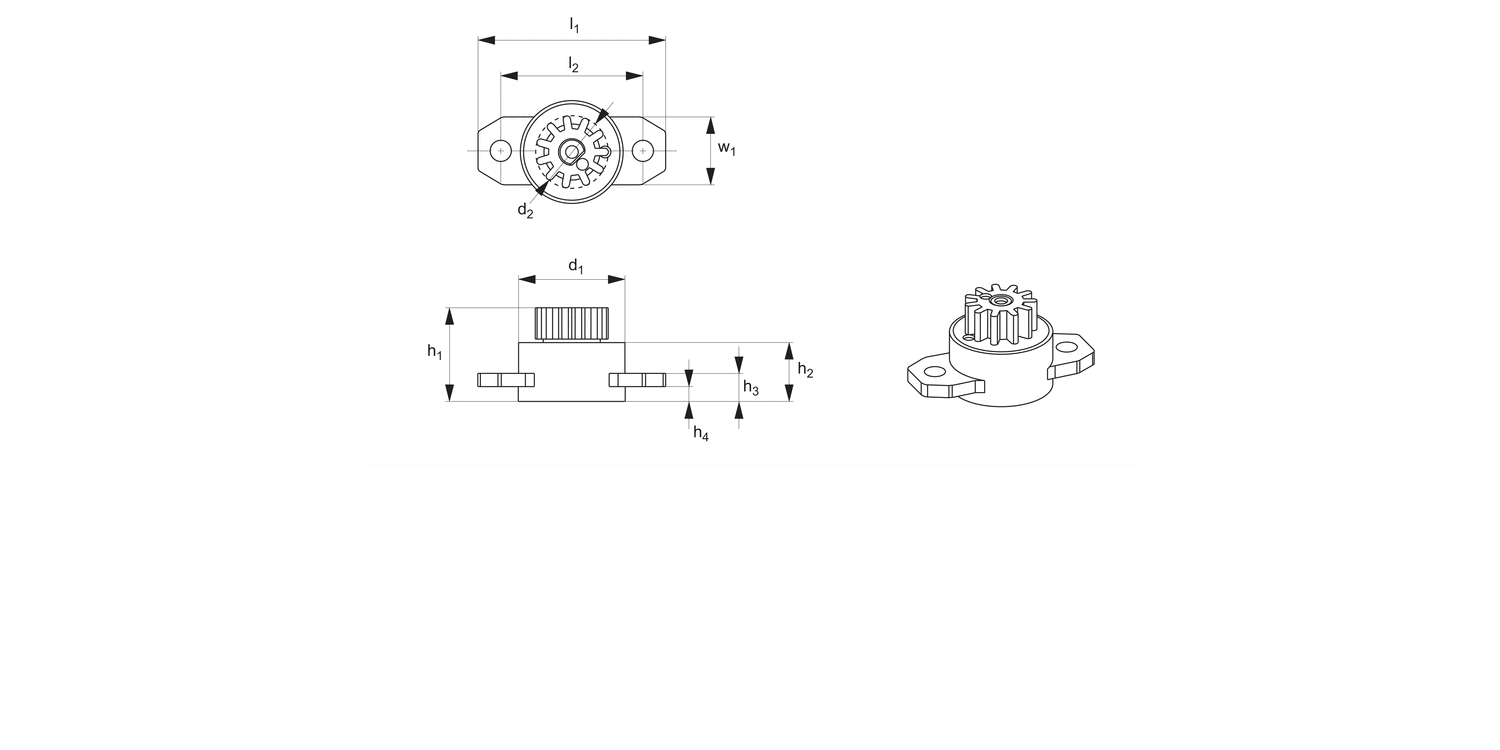

Select all

Pressure angle

l₁

d₁

d₂

h₁

h₂

h₃

h₄

l₂

w₁

Price & Availability	Article	Pressure angle	l1	d1	d2	h1	h2	h3	h4	l2	w1
	Q3044.AC0400	20°	27.5	15	10.4	13.6	8.6	4	2	21	10
£ 3.13 per unit (click for quantity discounts) Ready to despatch 67 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 3.13 0% 10-19 £ 2.82 10% 20-49 £ 2.66 15% 50-99 £ 2.50 20% 100+ £ 2.35 25% Pressure angle 20° l1 27.5 d1 15 d2 10.4 h1 13.6 h2 8.6 h3 4 h4 2 l2 21 w1 10 more info »
