Rotary Dampers
bi-directional

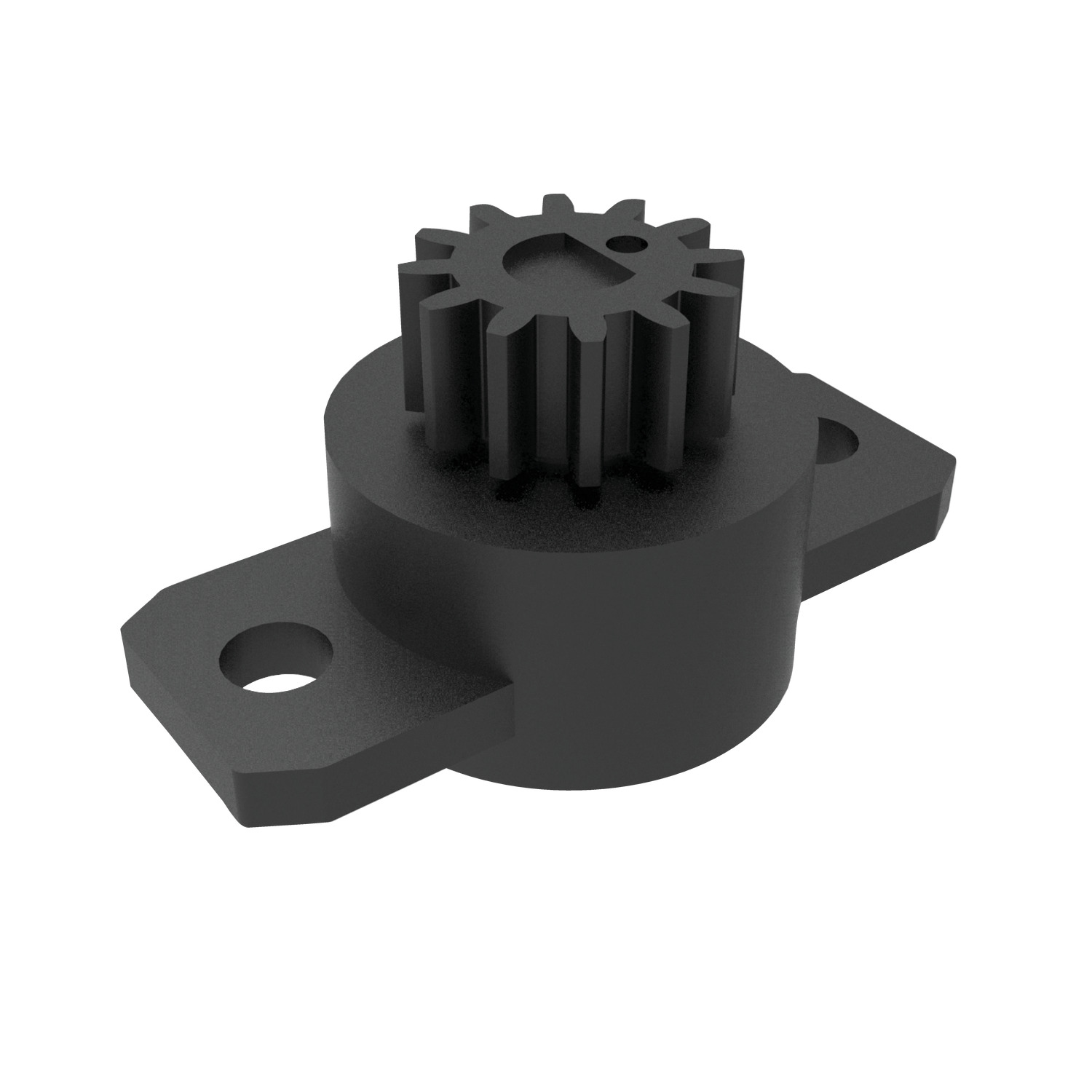

Q3044 Rotary Dampers
bi-directional - continuous rotation - up to 400gf.cm - snap-in, material: Thermoplastic and polycetal
Order No.
Q3044.AC0400
Type
With gear
Torque
gf·cm
100-400
No. of teeth
11
Gear module
0.8
Pitch circle diameter P.C.D
8.8
Pressure angle
20°
l1
27.5
d1
15
d2
10.4
h1
13.6
h2
8.6
h3
4
h4
2
l2
21
w1
10
£ 3.13 per unit (click for quantity discounts)
Ready to despatch 67
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 3.13 | 0% |
| 10-19 | £ 2.82 | 10% |
| 20-49 | £ 2.66 | 15% |
| 50-99 | £ 2.50 | 20% |
| 100+ | £ 2.35 | 25% |
Technical & Application
Material
Thermoplastic (ABS), polycetal (POM).
Technical Notes
Temperatue range +30 -80°C.
Expected life span greater than 50k cycles.
Tips
Create smooth movement and dampening in applications such as loading trays, arm rests and storage compartments. Subject to minimum order quantity.
Product Datasheets
CAD files
