Double Swivel Rings

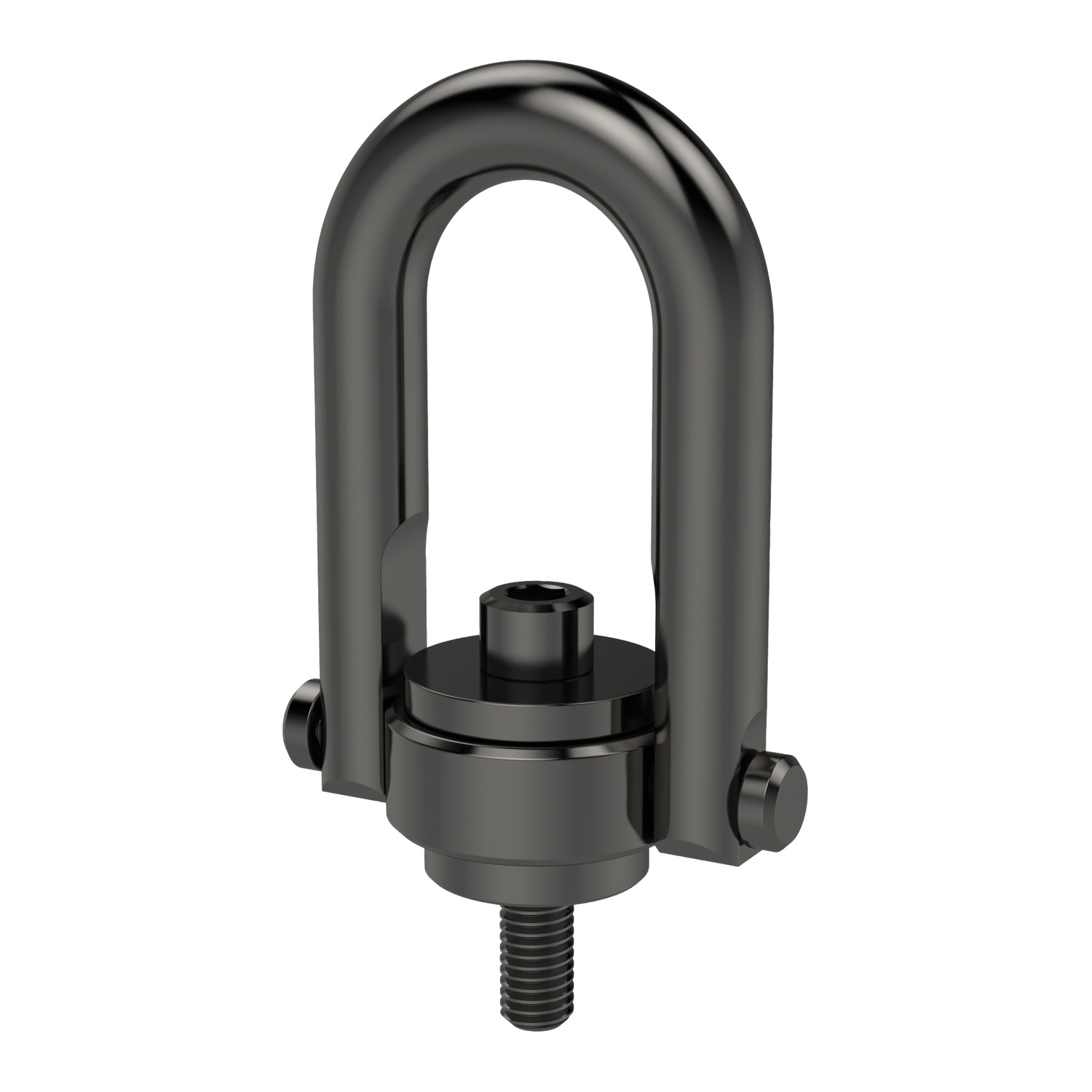

63532 Lifting Points - Double Swivel - Male
long bar - UNC thread, material: Forged alloy
Alternative products you may wish to consider

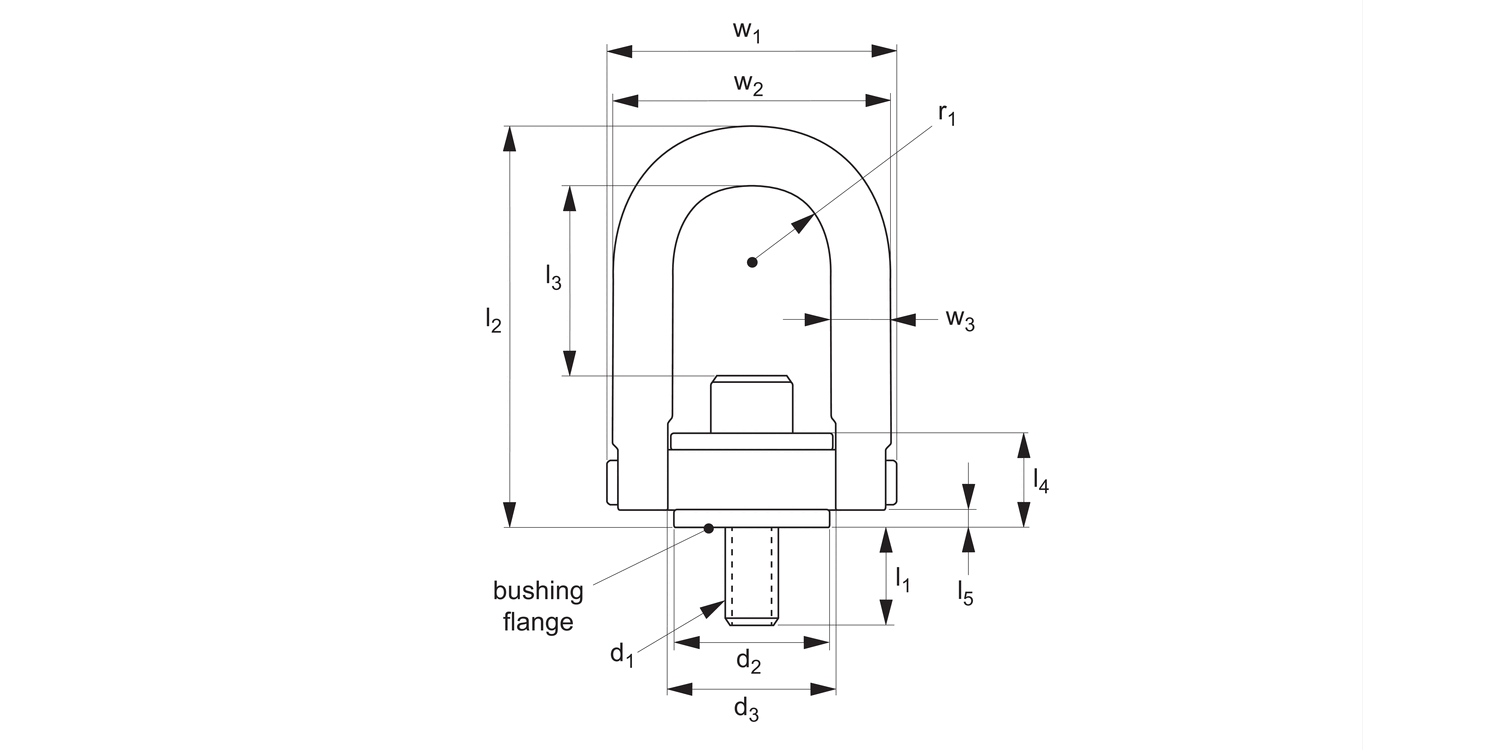

Rated load
lb
d1
d2
d3
l1
l2
l3
| Price & Availability | Article | Rated load lb | d1 | d2 | d3 | l1 | l2 | l3 | ||||||||||||||||||
| 63532.W0501I | 2500 | 1/2-13 | 1.50 | 1.99 | 0.780 | 6.72 | 4.25 | |||||||||||||||||||
£ 273.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Rated load
lb 2500 d1 1/2-13 d2 1.50 d3 1.99 l1 0.780 l2 6.72 l3 4.25 | ||||||||||||||||||||||||||
| 63532.W0502I | 2500 | 1/2-13 | 1.50 | 1.99 | 0.103 | 6.72 | 4.25 | |||||||||||||||||||
£ 273.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Rated load
lb 2500 d1 1/2-13 d2 1.50 d3 1.99 l1 0.103 l2 6.72 l3 4.25 | ||||||||||||||||||||||||||
| 63532.W0503I | 2500 | 1/2-13 | 1.50 | 1.99 | 1.280 | 6.72 | 4.25 | |||||||||||||||||||
£ 273.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Rated load
lb 2500 d1 1/2-13 d2 1.50 d3 1.99 l1 1.280 l2 6.72 l3 4.25 | ||||||||||||||||||||||||||
| 63532.W0631I | 4000 | 5/8-11 | 1.50 | 1.99 | 1.030 | 4.38 | 4.12 | |||||||||||||||||||
£ 273.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Rated load
lb 4000 d1 5/8-11 d2 1.50 d3 1.99 l1 1.030 l2 4.38 l3 4.12 | ||||||||||||||||||||||||||
| 63532.W0632I | 4000 | 5/8-11 | 1.50 | 1.99 | 1.280 | 4.38 | 4.12 | |||||||||||||||||||
£ 273.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Rated load
lb 4000 d1 5/8-11 d2 1.50 d3 1.99 l1 1.280 l2 4.38 l3 4.12 | ||||||||||||||||||||||||||
| 63532.W0751I | 5000 | 3/4-10 | 1.50 | 1.99 | 1.030 | 4.38 | 4.00 | |||||||||||||||||||
£ 273.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Rated load
lb 5000 d1 3/4-10 d2 1.50 d3 1.99 l1 1.030 l2 4.38 l3 4.00 | ||||||||||||||||||||||||||
| 63532.W0752I | 5000 | 3/4-10 | 1.50 | 1.99 | 1.530 | 4.38 | 4.00 | |||||||||||||||||||
£ 273.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Rated load
lb 5000 d1 3/4-10 d2 1.50 d3 1.99 l1 1.530 l2 4.38 l3 4.00 | ||||||||||||||||||||||||||
| 63532.W0753I | 7000 | 3/4-10 | 2.37 | 3.00 | 1.040 | 8.11 | 4.65 | |||||||||||||||||||
£ 571.89 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Rated load
lb 7000 d1 3/4-10 d2 2.37 d3 3.00 l1 1.040 l2 8.11 l3 4.65 | ||||||||||||||||||||||||||
| 63532.W0754I | 7000 | 3/4-10 | 2.37 | 3.00 | 1.540 | 8.11 | 4.65 | |||||||||||||||||||
£ 571.89 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Rated load
lb 7000 d1 3/4-10 d2 2.37 d3 3.00 l1 1.540 l2 8.11 l3 4.65 | ||||||||||||||||||||||||||
| 63532.W0881I | 8000 | 7/8-9 | 2.37 | 3.00 | 1.040 | 8.11 | 4.52 | |||||||||||||||||||
£ 571.89 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Rated load
lb 8000 d1 7/8-9 d2 2.37 d3 3.00 l1 1.040 l2 8.11 l3 4.52 | ||||||||||||||||||||||||||
| 63532.W1001I | 10000 | 1-8 | 2.37 | 3.00 | 1.290 | 8.11 | 4.40 | |||||||||||||||||||
£ 571.89 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Rated load
lb 10000 d1 1-8 d2 2.37 d3 3.00 l1 1.290 l2 8.11 l3 4.40 | ||||||||||||||||||||||||||
| 63532.W1002I | 10000 | 1-8 | 2.37 | 3.00 | 1.540 | 8.11 | 4.40 | |||||||||||||||||||
£ 571.89 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Rated load
lb 10000 d1 1-8 d2 2.37 d3 3.00 l1 1.540 l2 8.11 l3 4.40 | ||||||||||||||||||||||||||
| 63532.W1003I | 10000 | 1-8 | 2.37 | 3.00 | 2.290 | 8.11 | 4.40 | |||||||||||||||||||
£ 571.89 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Rated load
lb 10000 d1 1-8 d2 2.37 d3 3.00 l1 2.290 l2 8.11 l3 4.40 | ||||||||||||||||||||||||||
Weight
lb
l4
l5
r1
w1
w2
w3
tl
ft·lb
| Price & Availability | Article | Weight lb | l4 | l5 | r1 | w1 | w2 | w3 | tl ft·lb | ||||||||||||||||||
| 63532.W0501I | 2.75 | 1.22 | 0.16 | 0.88 | 3.52 | 3.25 | 3/4 | 28 | |||||||||||||||||||
£ 273.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
lb 2.75 l4 1.22 l5 0.16 r1 0.88 w1 3.52 w2 3.25 w3 3/4 tl
ft·lb 28 | |||||||||||||||||||||||||||
| 63532.W0502I | 2.00 | 1.22 | 0.16 | 0.88 | 3.52 | 3.25 | 3/4 | 28 | |||||||||||||||||||
£ 273.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
lb 2.00 l4 1.22 l5 0.16 r1 0.88 w1 3.52 w2 3.25 w3 3/4 tl
ft·lb 28 | |||||||||||||||||||||||||||
| 63532.W0503I | 2.75 | 1.22 | 0.16 | 0.88 | 3.52 | 3.25 | 3/4 | 28 | |||||||||||||||||||
£ 273.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
lb 2.75 l4 1.22 l5 0.16 r1 0.88 w1 3.52 w2 3.25 w3 3/4 tl
ft·lb 28 | |||||||||||||||||||||||||||
| 63532.W0631I | 2.87 | 1.22 | 0.16 | 0.88 | 3.52 | 3.25 | 3/4 | 60 | |||||||||||||||||||
£ 273.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
lb 2.87 l4 1.22 l5 0.16 r1 0.88 w1 3.52 w2 3.25 w3 3/4 tl
ft·lb 60 | |||||||||||||||||||||||||||
| 63532.W0632I | 2.87 | 1.22 | 0.16 | 0.88 | 3.52 | 3.25 | 3/4 | 60 | |||||||||||||||||||
£ 273.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
lb 2.87 l4 1.22 l5 0.16 r1 0.88 w1 3.52 w2 3.25 w3 3/4 tl
ft·lb 60 | |||||||||||||||||||||||||||
| 63532.W0751I | 3.00 | 1.22 | 0.16 | 0.88 | 3.52 | 3.25 | 3/4 | 100 | |||||||||||||||||||
£ 273.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
lb 3.00 l4 1.22 l5 0.16 r1 0.88 w1 3.52 w2 3.25 w3 3/4 tl
ft·lb 100 | |||||||||||||||||||||||||||
| 63532.W0752I | 3.00 | 1.22 | 0.16 | 0.88 | 3.52 | 3.25 | 3/4 | 100 | |||||||||||||||||||
£ 273.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
lb 3.00 l4 1.22 l5 0.16 r1 0.88 w1 3.52 w2 3.25 w3 3/4 tl
ft·lb 100 | |||||||||||||||||||||||||||
| 63532.W0753I | 7.25 | 1.71 | 0.24 | 1.40 | 5.14 | 4.80 | 1 | 100 | |||||||||||||||||||
£ 571.89 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
lb 7.25 l4 1.71 l5 0.24 r1 1.40 w1 5.14 w2 4.80 w3 1 tl
ft·lb 100 | |||||||||||||||||||||||||||
| 63532.W0754I | 6.62 | 1.71 | 0.24 | 1.40 | 5.14 | 4.80 | 1 | 100 | |||||||||||||||||||
£ 571.89 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
lb 6.62 l4 1.71 l5 0.24 r1 1.40 w1 5.14 w2 4.80 w3 1 tl
ft·lb 100 | |||||||||||||||||||||||||||
| 63532.W0881I | 6.75 | 1.71 | 0.24 | 1.40 | 5.14 | 4.80 | 1 | 160 | |||||||||||||||||||
£ 571.89 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
lb 6.75 l4 1.71 l5 0.24 r1 1.40 w1 5.14 w2 4.80 w3 1 tl
ft·lb 160 | |||||||||||||||||||||||||||
| 63532.W1001I | 7.00 | 1.71 | 0.24 | 1.40 | 5.14 | 4.80 | 1 | 230 | |||||||||||||||||||
£ 571.89 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
lb 7.00 l4 1.71 l5 0.24 r1 1.40 w1 5.14 w2 4.80 w3 1 tl
ft·lb 230 | |||||||||||||||||||||||||||
| 63532.W1002I | 7.00 | 1.71 | 0.24 | 1.40 | 5.14 | 4.80 | 1 | 230 | |||||||||||||||||||
£ 571.89 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
lb 7.00 l4 1.71 l5 0.24 r1 1.40 w1 5.14 w2 4.80 w3 1 tl
ft·lb 230 | |||||||||||||||||||||||||||
| 63532.W1003I | 7.00 | 1.71 | 0.24 | 1.40 | 5.14 | 4.80 | 1 | 230 | |||||||||||||||||||
£ 571.89 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
lb 7.00 l4 1.71 l5 0.24 r1 1.40 w1 5.14 w2 4.80 w3 1 tl
ft·lb 230 | |||||||||||||||||||||||||||
Technical & Application
Material
Forged alloy steel (4140), min. tensile strength 180,000psi. Black oxide coated.
Technical Notes
Meets manufacturing and design requirements of ASME -B30.26 and MIL-STD 209. Magnetic particle inspected per ASTM 1444.
Tips
Min. design safety factor 5:1. 360° swivel and 180° pivot underload. Each part individually serial numbered.
tl = recommended torque load (ft - lbs)
Important Notes
All dimensions in imperial.
Always follow safety instructions.
