Double Swivel Rings

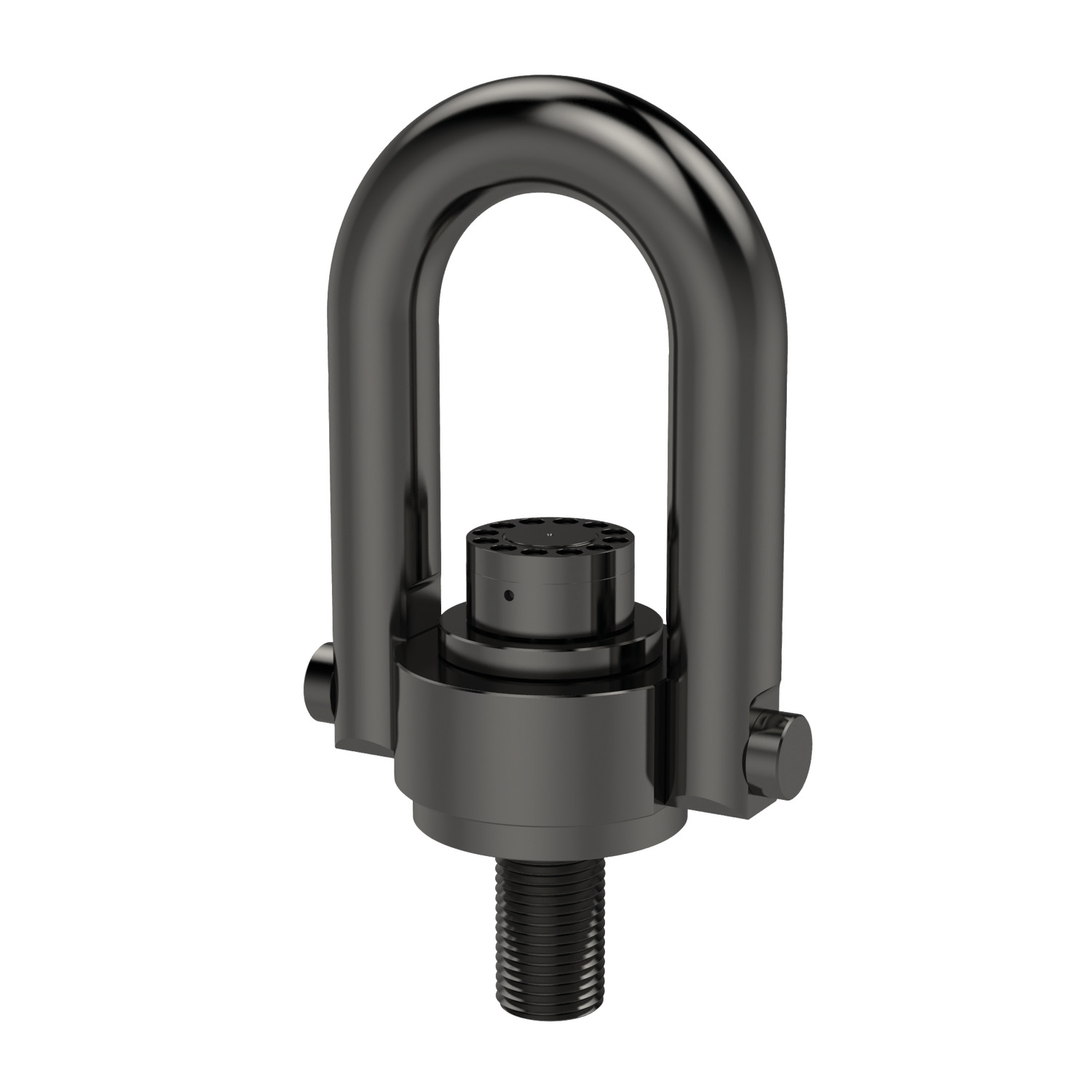

63592 Lifting Points - Double Swivel - Male
easy torque - UNC thread, material: Forged alloy
Alternative products you may wish to consider

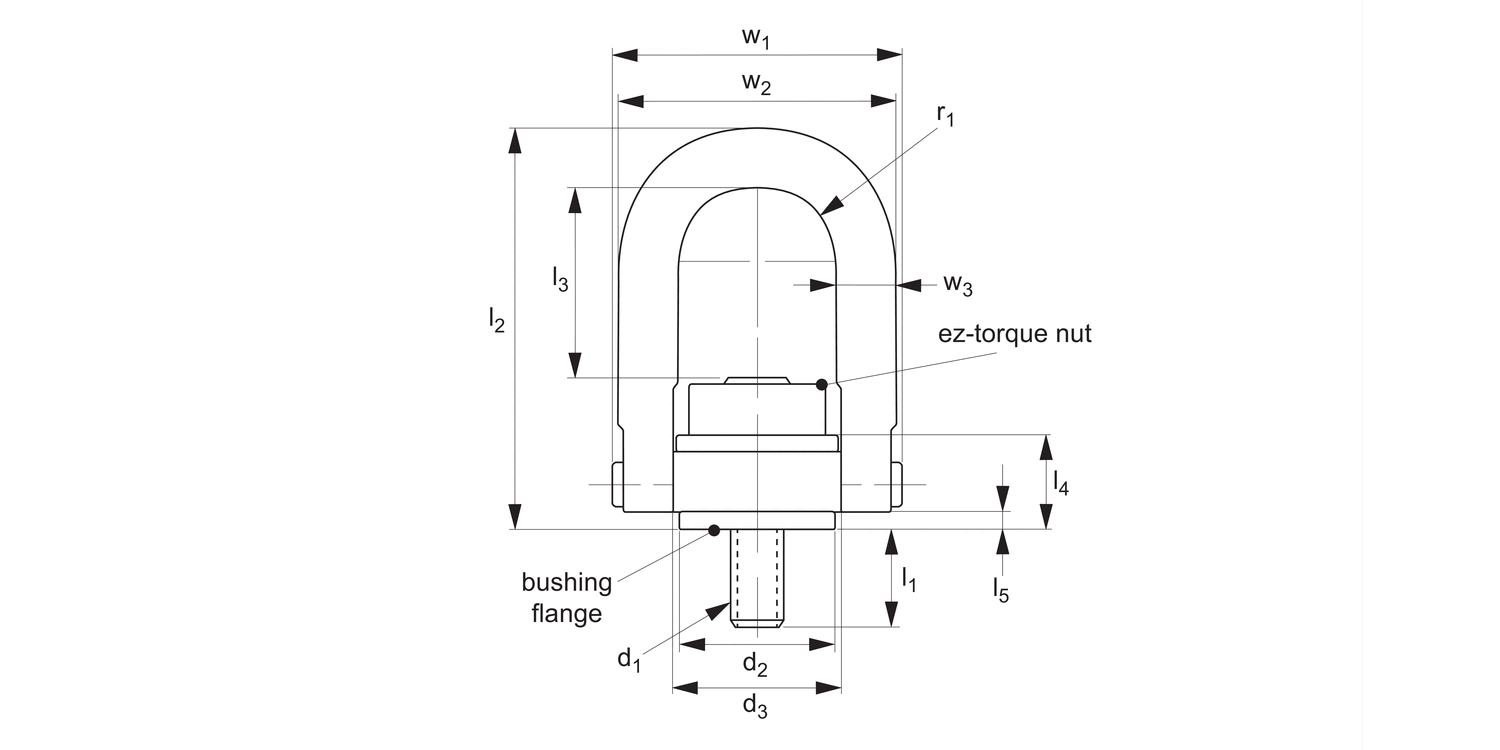

Rated load
lb
d1
UNC
d2
d3
l1
l2
l3
| Price & Availability | Article | Rated load lb | d1 UNC | d2 | d3 | l1 | l2 | l3 | ||||||||||||||||||
| 63592.W1251I | 15000 | 1-1/4-7 | 3.20 | 3.76 | 1.89 | 8.73 | 3.88 | |||||||||||||||||||
£ 1,168.74 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Rated load
lb 15000 d1
UNC 1-1/4-7 d2 3.20 d3 3.76 l1 1.89 l2 8.73 l3 3.88 | ||||||||||||||||||||||||||
| 63592.W1501I | 24000 | 1-1/2-6 | 4.20 | 4.87 | 2.70 | 12.47 | 6.12 | |||||||||||||||||||
£ 1,476.58 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Rated load
lb 24000 d1
UNC 1-1/2-6 d2 4.20 d3 4.87 l1 2.70 l2 12.47 l3 6.12 | ||||||||||||||||||||||||||
| 63592.W2001I | 30000 | 2-4-1/2 | 4.20 | 4.87 | 2.96 | 12.47 | 6.12 | |||||||||||||||||||
£ 1,659.04 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Rated load
lb 30000 d1
UNC 2-4-1/2 d2 4.20 d3 4.87 l1 2.96 l2 12.47 l3 6.12 | ||||||||||||||||||||||||||
| 63592.W2501I | 50000 | 2-1/2-8 | 5.75 | 6.52 | 4.00 | 16.87 | 7.73 | |||||||||||||||||||
£ 3,999.31 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Rated load
lb 50000 d1
UNC 2-1/2-8 d2 5.75 d3 6.52 l1 4.00 l2 16.87 l3 7.73 | ||||||||||||||||||||||||||
| 63592.W2502I | 50000 | 2-1/2-4 | 5.75 | 6.52 | 4.00 | 16.87 | 7.73 | |||||||||||||||||||
£ 3,999.31 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Rated load
lb 50000 d1
UNC 2-1/2-4 d2 5.75 d3 6.52 l1 4.00 l2 16.87 l3 7.73 | ||||||||||||||||||||||||||
| 63592.W3001I | 75000 | 3-4 | 7.25 | 8.10 | 5.20 | 19.50 | 8.53 | |||||||||||||||||||
£ 6,733.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Rated load
lb 75000 d1
UNC 3-4 d2 7.25 d3 8.10 l1 5.20 l2 19.50 l3 8.53 | ||||||||||||||||||||||||||
| 63592.W3501I | 100000 | 3-1/2-4 | 7.75 | 8.60 | 7.00 | 22.09 | 9.28 | |||||||||||||||||||
£ 19,857.22 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Rated load
lb 100000 d1
UNC 3-1/2-4 d2 7.75 d3 8.60 l1 7.00 l2 22.09 l3 9.28 | ||||||||||||||||||||||||||
| 63592.W4251I | 150000 | 4 1/4-4 | 9.87 | 10.75 | 8.50 | 27.38 | 12.93 | |||||||||||||||||||
£ 30,679.40 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Rated load
lb 150000 d1
UNC 4 1/4-4 d2 9.87 d3 10.75 l1 8.50 l2 27.38 l3 12.93 | ||||||||||||||||||||||||||
| 63592.W5001I | 200000 | 5-4 | 12.38 | 13.00 | 9.00 | 33.00 | 15.00 | |||||||||||||||||||
£ 65,562.28 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Rated load
lb 200000 d1
UNC 5-4 d2 12.38 d3 13.00 l1 9.00 l2 33.00 l3 15.00 | ||||||||||||||||||||||||||
| 63592.W6001I | 250000 | 6-4 | 12.38 | 13.00 | 9.00 | 33.00 | 15.00 | |||||||||||||||||||
£ 71,263.34 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Rated load
lb 250000 d1
UNC 6-4 d2 12.38 d3 13.00 l1 9.00 l2 33.00 l3 15.00 | ||||||||||||||||||||||||||
Weight
lb
l4
l5
r1
w1
w2
w3
tl
ft·lb
| Price & Availability | Article | Weight lb | l4 | l5 | r1 | w1 | w2 | w3 | tl ft·lb | ||||||||||||||||||
| 63592.W1251I | 16.00 | 2.11 | 0.35 | 1.75 | 6.50 | 6.0 | 1-1/4 | 10 | |||||||||||||||||||
£ 1,168.74 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
lb 16.00 l4 2.11 l5 0.35 r1 1.75 w1 6.50 w2 6.0 w3 1-1/4 tl
ft·lb 10 | |||||||||||||||||||||||||||
| 63592.W1501I | 37.37 | 2.81 | 0.47 | 2.25 | 8.55 | 8.0 | 1-3/4 | 18 | |||||||||||||||||||
£ 1,476.58 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
lb 37.37 l4 2.81 l5 0.47 r1 2.25 w1 8.55 w2 8.0 w3 1-3/4 tl
ft·lb 18 | |||||||||||||||||||||||||||
| 63592.W2001I | 39.00 | 2.81 | 0.47 | 2.25 | 8.55 | 8.0 | 1-3/4 | 23 | |||||||||||||||||||
£ 1,659.04 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
lb 39.00 l4 2.81 l5 0.47 r1 2.25 w1 8.55 w2 8.0 w3 1-3/4 tl
ft·lb 23 | |||||||||||||||||||||||||||
| 63592.W2501I | 92.00 | 4.09 | 1.12 | 3.00 | 11.67 | 10.5 | 2-1/4 | 49 | |||||||||||||||||||
£ 3,999.31 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
lb 92.00 l4 4.09 l5 1.12 r1 3.00 w1 11.67 w2 10.5 w3 2-1/4 tl
ft·lb 49 | |||||||||||||||||||||||||||
| 63592.W2502I | 92.00 | 4.09 | 1.12 | 3.00 | 11.67 | 10.5 | 2-1/4 | 49 | |||||||||||||||||||
£ 3,999.31 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
lb 92.00 l4 4.09 l5 1.12 r1 3.00 w1 11.67 w2 10.5 w3 2-1/4 tl
ft·lb 49 | |||||||||||||||||||||||||||
| 63592.W3001I | 174.60 | 5.27 | 1.00 | 3.75 | 14.15 | 13.0 | 2-3/4 | 92 | |||||||||||||||||||
£ 6,733.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
lb 174.60 l4 5.27 l5 1.00 r1 3.75 w1 14.15 w2 13.0 w3 2-3/4 tl
ft·lb 92 | |||||||||||||||||||||||||||
| 63592.W3501I | 246.94 | 6.06 | 1.09 | 4.00 | 15.90 | 14.5 | 3-1/4 | 98 | |||||||||||||||||||
£ 19,857.22 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
lb 246.94 l4 6.06 l5 1.09 r1 4.00 w1 15.90 w2 14.5 w3 3-1/4 tl
ft·lb 98 | |||||||||||||||||||||||||||
| 63592.W4251I | 527.00 | 7.50 | 1.33 | 5.00 | 19.69 | 18.0 | 4 | 123 | |||||||||||||||||||
£ 30,679.40 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
lb 527.00 l4 7.50 l5 1.33 r1 5.00 w1 19.69 w2 18.0 w3 4 tl
ft·lb 123 | |||||||||||||||||||||||||||
| 63592.W5001I | 763.00 | 9.00 | 1.88 | 6.00 | 24.00 | 22.0 | 5 | 193 | |||||||||||||||||||
£ 65,562.28 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
lb 763.00 l4 9.00 l5 1.88 r1 6.00 w1 24.00 w2 22.0 w3 5 tl
ft·lb 193 | |||||||||||||||||||||||||||
| 63592.W6001I | 841.00 | 9.00 | 1.88 | 6.00 | 24.00 | 22.0 | 5 | 207 | |||||||||||||||||||
£ 71,263.34 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
lb 841.00 l4 9.00 l5 1.88 r1 6.00 w1 24.00 w2 22.0 w3 5 tl
ft·lb 207 | |||||||||||||||||||||||||||
Technical & Application
Material
Forged alloy steel (4140) min. tensile strength 180,000 psi. Black oxide coated.
Technical Notes
Min. design safety factor 5:1. 360° swivel 180° pivot under load.
Individually serial numbered.
tl- recommended torque load (Nm) for installation.
Tips
EZ-torque hoist rings greatly reduce the required torque load (tl) for installation. Unique EZ-torque nut means hoist ring requires only a standard torque wrench for installation, e.g EZ-torque hoist ring M30x3,5 requires only 13,5 ft - lbs of torque, while a comparable standard hoist ring would require over 637 ft - lbs.
Important Notes
All dimensions in imperial.
Always follow safety instructions.
