Chain Clamping Set
with lanyard

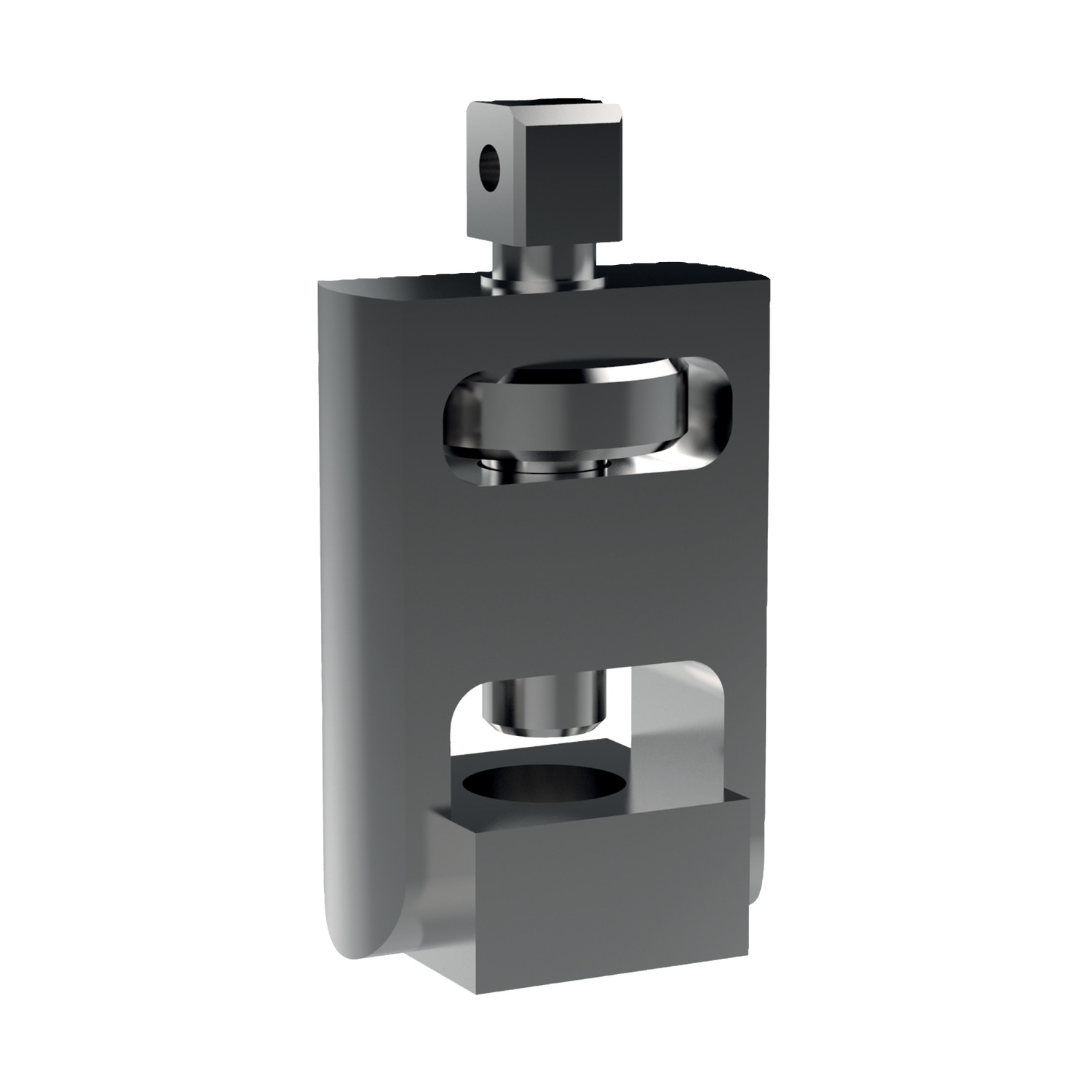

12703 Counter Catch Hook
for chain clamping set 12700, material: Alloy steel
Alternative products you may wish to consider
Size
12
For T-slot
14, 16 or 18

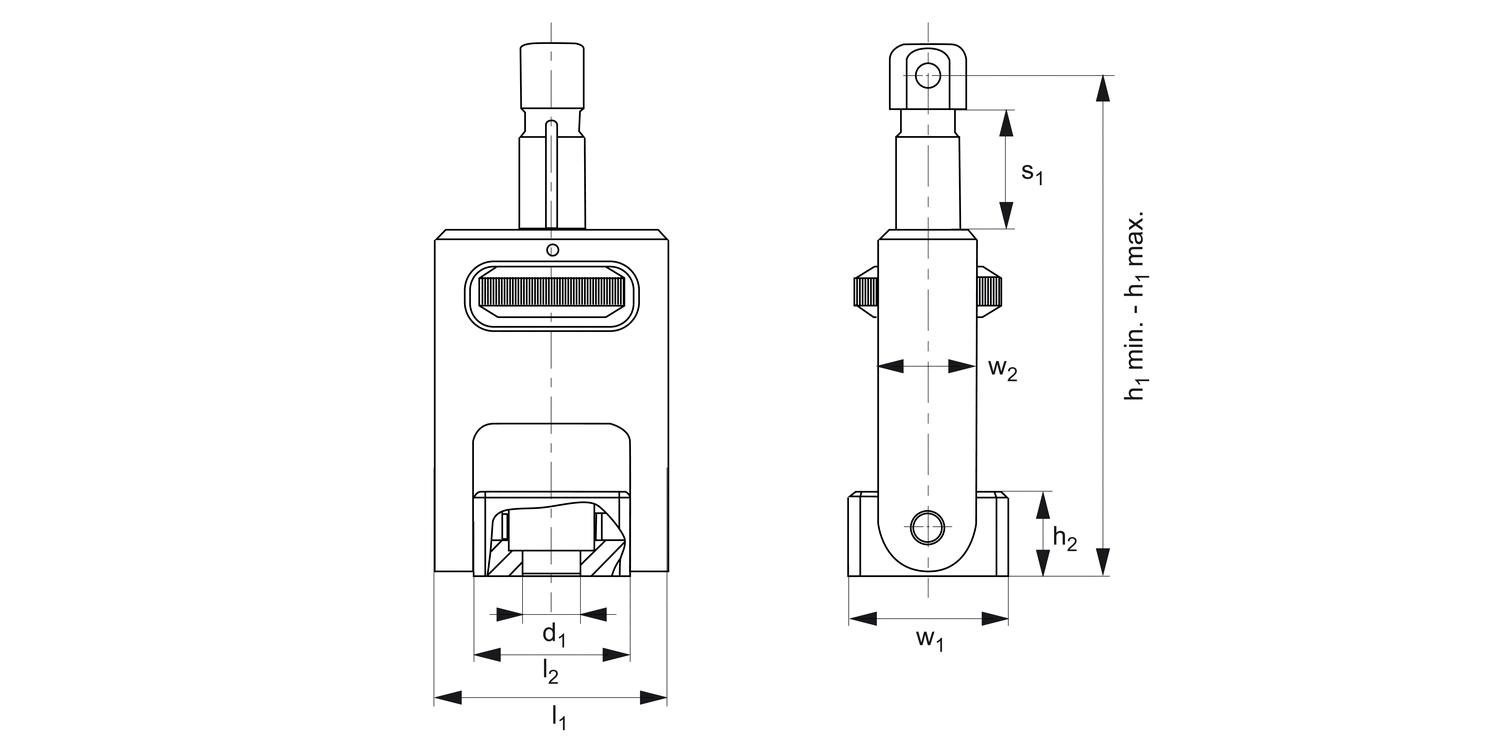

d1
M12
h1
min.
83
h1
max.
108.0
h2
18
l1
50
l2
34
w1
34
w2
21
Stroke s1
25.0
Clamping force
max.
kN
15
Weight
g
553
£ 295.30 per unit (click for quantity discounts)
Size
16
For T-slot
18, 20, 22 or 24
d1
M16
h1
min.
110
h1
max.
146.0
h2
25
l1
64
l2
44
w1
37
w2
29
Stroke s1
36.0
Clamping force
max.
kN
40
Weight
g
1235
£ 360.50 per unit (click for quantity discounts)
Size
20
For T-slot
22 to 28
d1
M20
h1
min.
162
h1
max.
205.5
h2
41
l1
91
l2
64
w1
58
w2
48
Stroke s1
43.5
Clamping force
max.
kN
75
Weight
g
4088
£ 890.07 per unit (click for quantity discounts)
Size
24
For T-slot
28 to 36
d1
M24
h1
min.
166
h1
max.
209.0
h2
41
l1
91
l2
64
w1
58
w2
48
Stroke s1
43.0
Clamping force
max.
kN
120
Weight
g
4145
£ 1,040.46 per unit (click for quantity discounts)
Size
For T-slot
d1
h1
min.
h1
max.
h2
l1
l2
w1
w2
Stroke s1
Clamping force
max.
kN
Weight
g
| Price & Availability | Article | Size | For T-slot | d1 | h1 min. | h1 max. | h2 | l1 | l2 | w1 | w2 | Stroke s1 | Clamping force max. kN | Weight g | ||||||||||||
| 12703.W0012 | 12 | 14, 16 or 18 | M12 | 83 | 108.0 | 18 | 50 | 34 | 34 | 21 | 25.0 | 15 | 553 | |||||||||||||
£ 295.30 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 12 For T-slot 14, 16 or 18 d1 M12 h1
min. 83 h1
max. 108.0 h2 18 l1 50 l2 34 w1 34 w2 21 Stroke s1 25.0 Clamping force
max.
kN 15 Weight
g 553 | ||||||||||||||||||||||||||
| 12703.W0016 | 16 | 18, 20, 22 or 24 | M16 | 110 | 146.0 | 25 | 64 | 44 | 37 | 29 | 36.0 | 40 | 1235 | |||||||||||||
£ 360.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 16 For T-slot 18, 20, 22 or 24 d1 M16 h1
min. 110 h1
max. 146.0 h2 25 l1 64 l2 44 w1 37 w2 29 Stroke s1 36.0 Clamping force
max.
kN 40 Weight
g 1235 | ||||||||||||||||||||||||||
| 12703.W0020 | 20 | 22 to 28 | M20 | 162 | 205.5 | 41 | 91 | 64 | 58 | 48 | 43.5 | 75 | 4088 | |||||||||||||
£ 890.07 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 20 For T-slot 22 to 28 d1 M20 h1
min. 162 h1
max. 205.5 h2 41 l1 91 l2 64 w1 58 w2 48 Stroke s1 43.5 Clamping force
max.
kN 75 Weight
g 4088 | ||||||||||||||||||||||||||
| 12703.W0024 | 24 | 28 to 36 | M24 | 166 | 209.0 | 41 | 91 | 64 | 58 | 48 | 43.0 | 120 | 4145 | |||||||||||||
£ 1,040.46 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 24 For T-slot 28 to 36 d1 M24 h1
min. 166 h1
max. 209.0 h2 41 l1 91 l2 64 w1 58 w2 48 Stroke s1 43.0 Clamping force
max.
kN 120 Weight
g 4145 | ||||||||||||||||||||||||||
Technical & Application
Material
Alloy steel.
Technical Notes

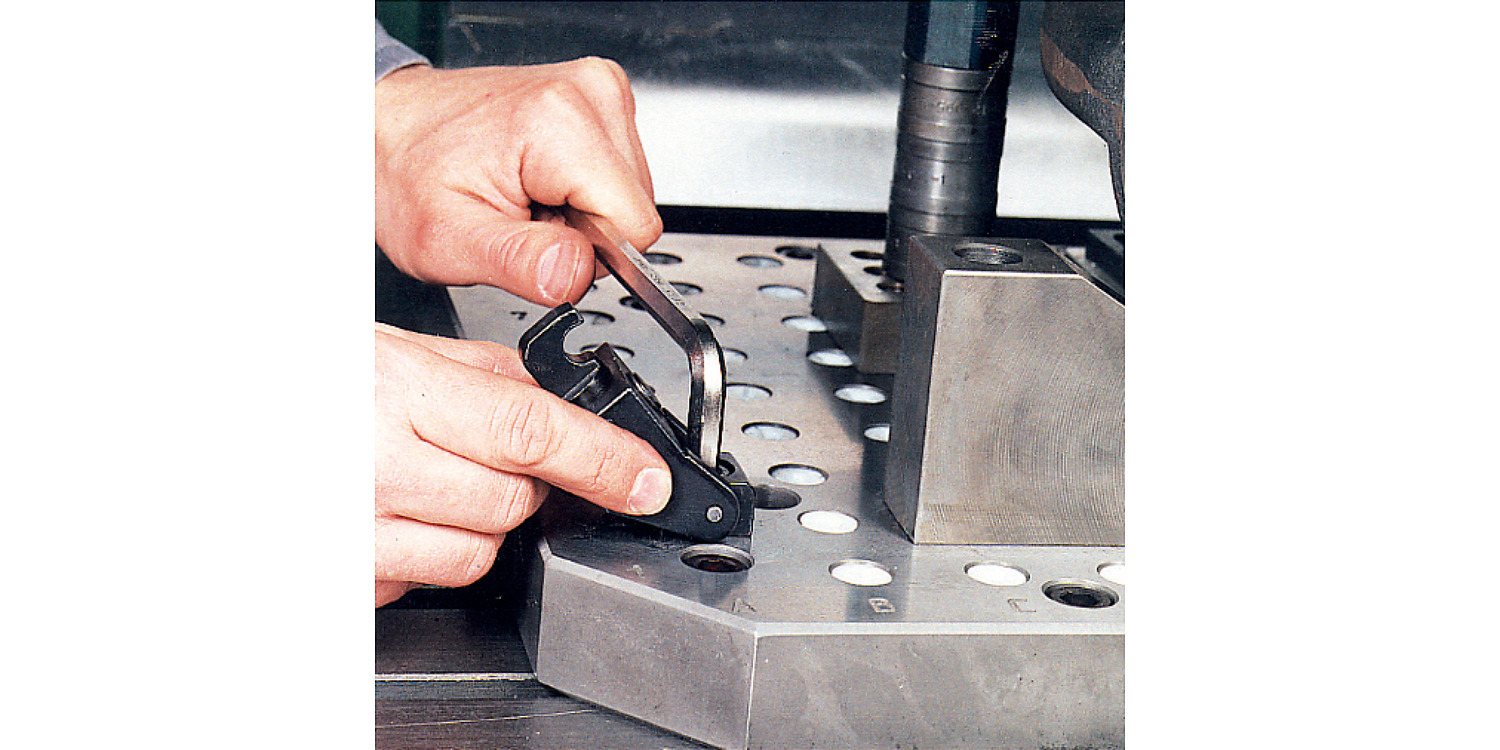

For use with chain clamp set 12700. Counter catch hook is for the pre-tightening of chain prior to final clamping.
