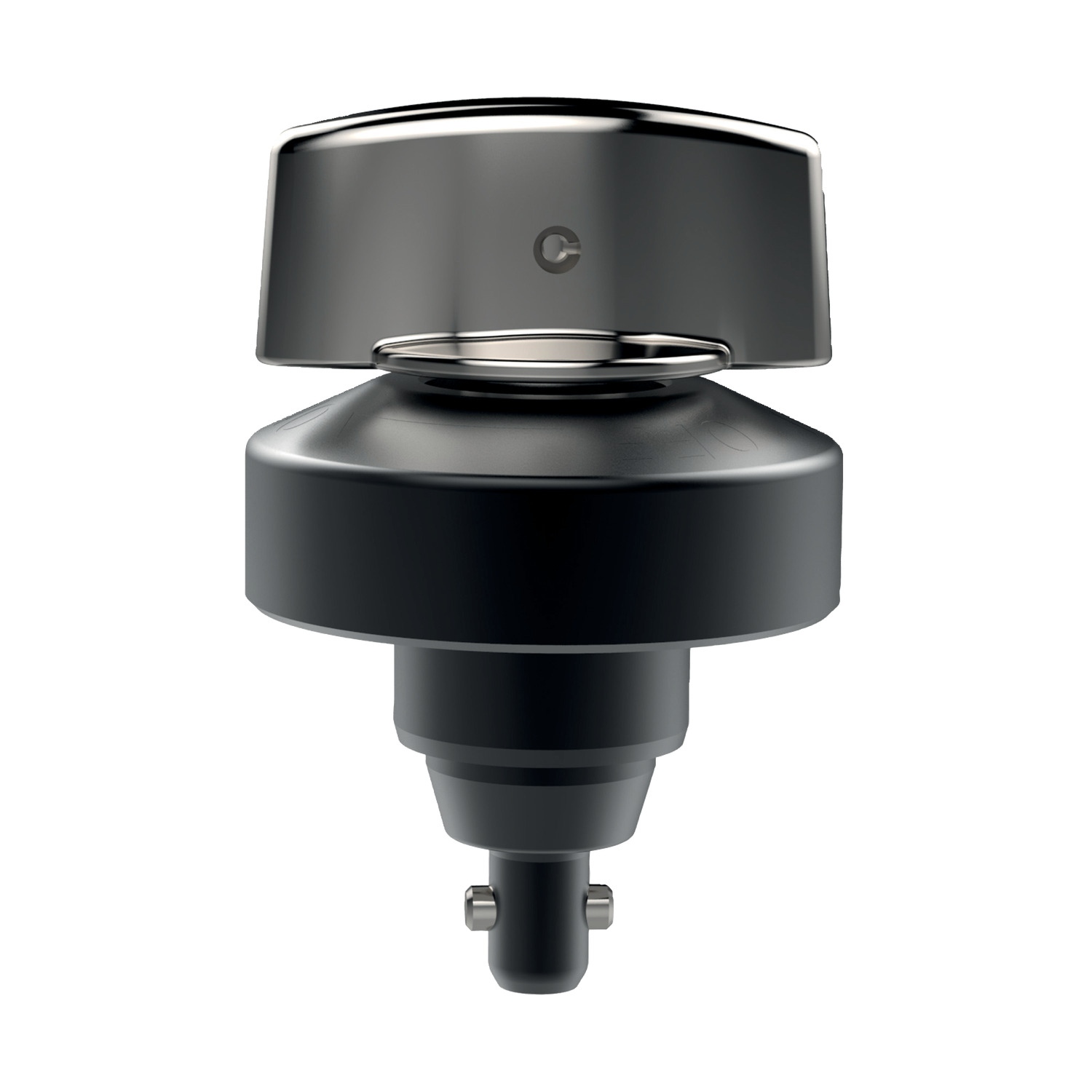

12085.2 One-Touch Flex Locator Clampers
knob, material: Steel
Order No.
12085.W0208
Size
8
Clamping force
N
600

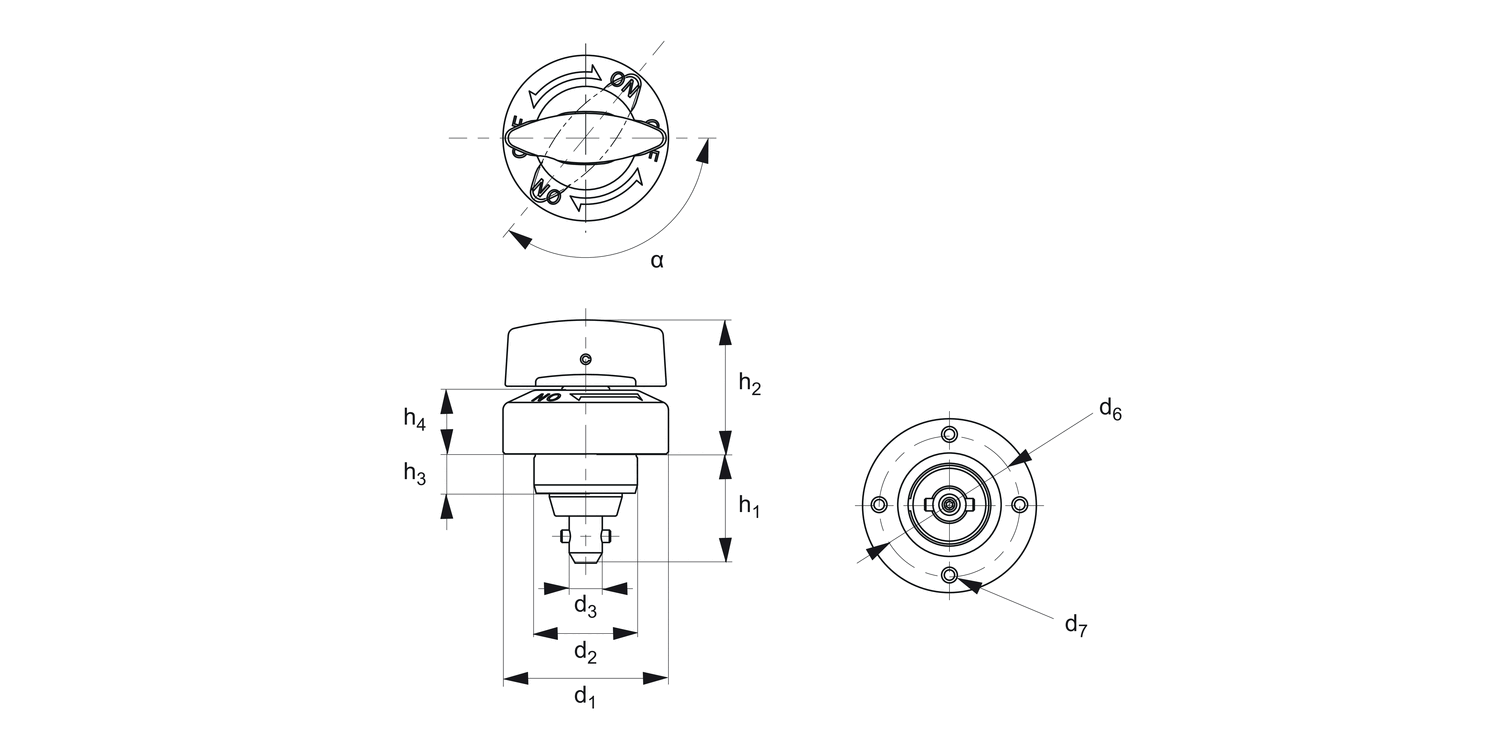

d1
40
d2
25
d3
8.0
d4
25
d5
41
d6
34.0
d7
-
h1
26
h2
32
h3
9.5
h4
15.5
h5
10
h6
6
Lifting force
N
100
α
130°
Weight
g
211
£ 267.19 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 267.19 | 0% |
| 10-19 | £ 240.47 | 10% |
| 20-49 | £ 227.11 | 15% |
| 50-99 | £ 213.75 | 20% |
| 100+ | £ 187.03 | 30% |
Technical & Application
Material
Body/shank: steel (AISI 4140, 42CrMo4), black oxide finish.
Tapered pin: steel (AISI 4140, 42CrMo4), nitrocarburised.
Knob: stainless steel (AISI 304, 1.4308).
Pin: stainless steel (AISI 303, 1.4305).
Technical Notes
The lifting force is the power of the inner spring of the body to push up the moveable tapered pin.
Tips
Flex locator bushing: for .W0206, see part no. 12085.W0506. For .W0208, see part no. 12085.W0508.
