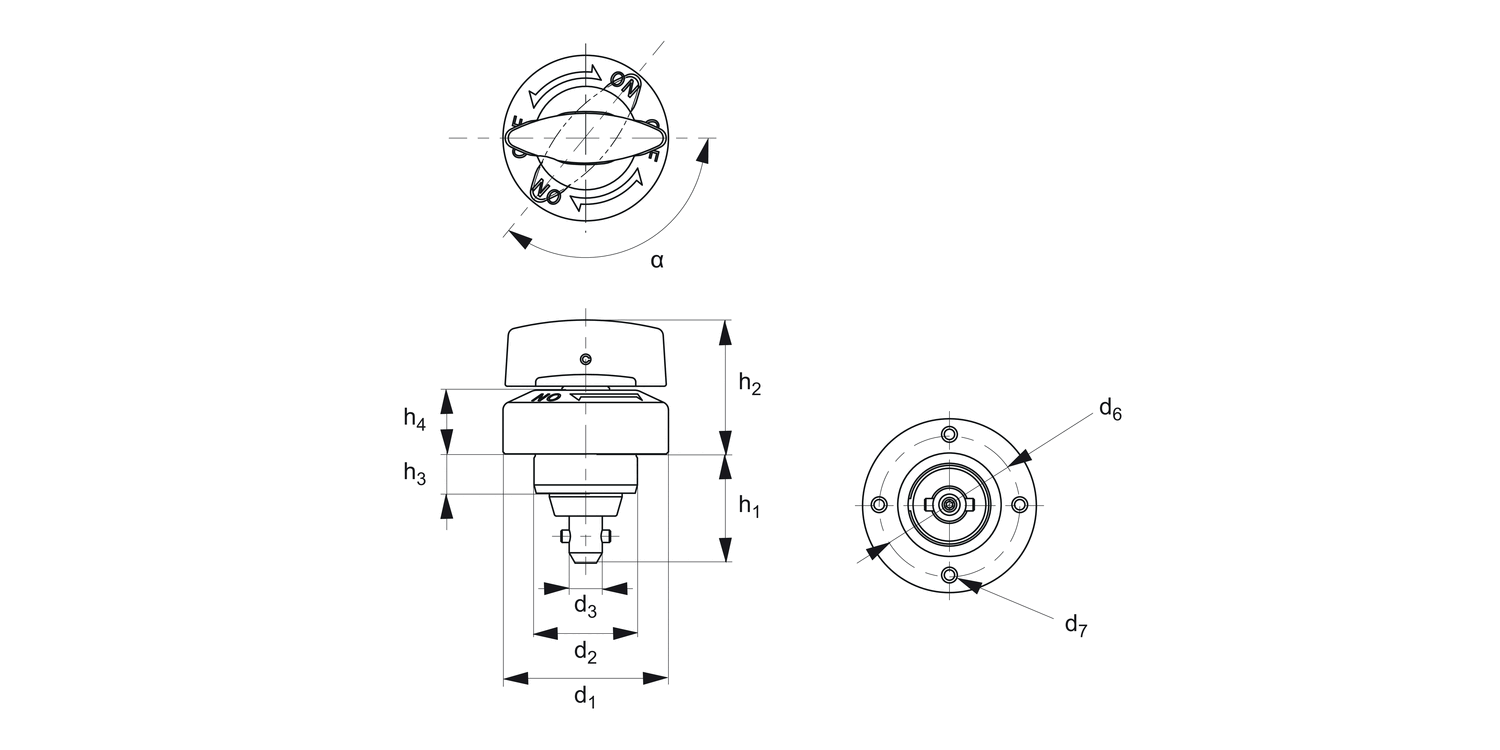

12085.2 One-Touch Flex Locator Clampers
knob, material: Steel
Alternative products you may wish to consider
Size
6
Clamping force
N
350
d1
32
d2
16
d3
5.5
d4
16
d5
33
d6
25.5
d7
M 3x0,5
h1
22
h2
27
h3
7.5
h4
12.0
h5
8
h6
4
Lifting force
N
30
α
120°
Weight
g
96
£ 240.57 per unit (click for quantity discounts)
Size
8
Clamping force
N
600
d1
40
d2
25
d3
8.0
d4
25
d5
41
d6
34.0
d7
-
h1
26
h2
32
h3
9.5
h4
15.5
h5
10
h6
6
Lifting force
N
100
α
130°
Weight
g
211
£ 256.91 per unit (click for quantity discounts)
Size
Clamping force
N
d1
d2
d3
d4
d5
d6
d7
h1
h2
h3
h4
h5
h6
Lifting force
N
α
Weight
g
| Price & Availability | Article | Size | Clamping force N | d1 | d2 | d3 | d4 | d5 | d6 | d7 | h1 | h2 | h3 | h4 | h5 | h6 | Lifting force N | α | Weight g | ||||||||||||||||||
| 12085.W0206 | 6 | 350 | 32 | 16 | 5.5 | 16 | 33 | 25.5 | M 3x0,5 | 22 | 27 | 7.5 | 12.0 | 8 | 4 | 30 | 120° | 96 | |||||||||||||||||||
£ 240.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 6 Clamping force
N 350 d1 32 d2 16 d3 5.5 d4 16 d5 33 d6 25.5 d7 M 3x0,5 h1 22 h2 27 h3 7.5 h4 12.0 h5 8 h6 4 Lifting force
N 30 α 120° Weight
g 96 | |||||||||||||||||||||||||||||||||||||
| 12085.W0208 | 8 | 600 | 40 | 25 | 8.0 | 25 | 41 | 34.0 | - | 26 | 32 | 9.5 | 15.5 | 10 | 6 | 100 | 130° | 211 | |||||||||||||||||||
£ 256.91 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 8 Clamping force
N 600 d1 40 d2 25 d3 8.0 d4 25 d5 41 d6 34.0 d7 - h1 26 h2 32 h3 9.5 h4 15.5 h5 10 h6 6 Lifting force
N 100 α 130° Weight
g 211 | |||||||||||||||||||||||||||||||||||||
Technical & Application
Material
Body/shank: steel (AISI 4140, 42CrMo4), black oxide finish.
Tapered pin: steel (AISI 4140, 42CrMo4), nitrocarburised.
Knob: stainless steel (AISI 304, 1.4308).
Pin: stainless steel (AISI 303, 1.4305).
Technical Notes
The lifting force is the power of the inner spring of the body to push up the moveable tapered pin.
Tips
Flex locator bushing: for .W0206, see part no. 12085.W0506. For .W0208, see part no. 12085.W0508.
Product Datasheets

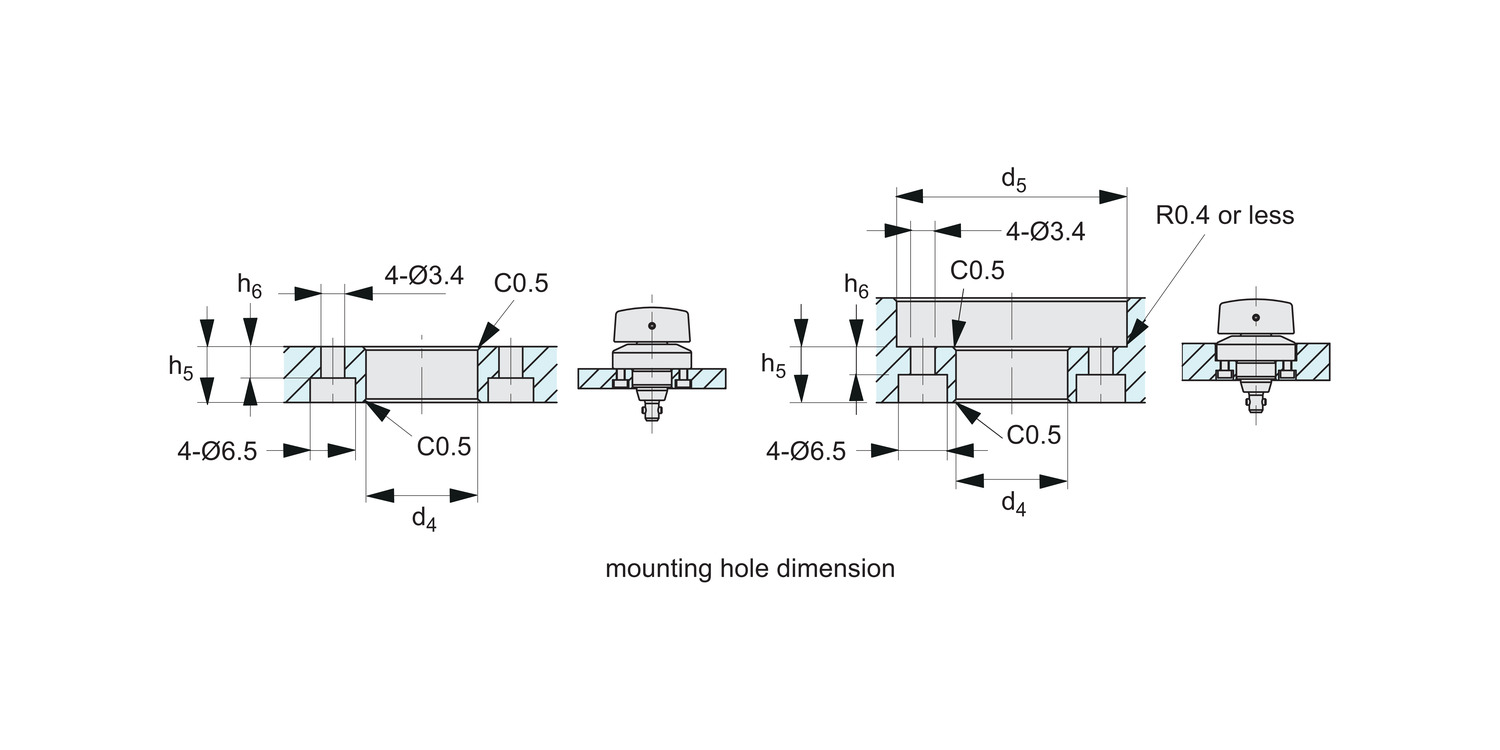

Application images
