12085.1 One-Touch Flex Locator Clampers
material: Steel
Alternative products you may wish to consider
Tapered pin
With
Size
8
Clamping force
N
600

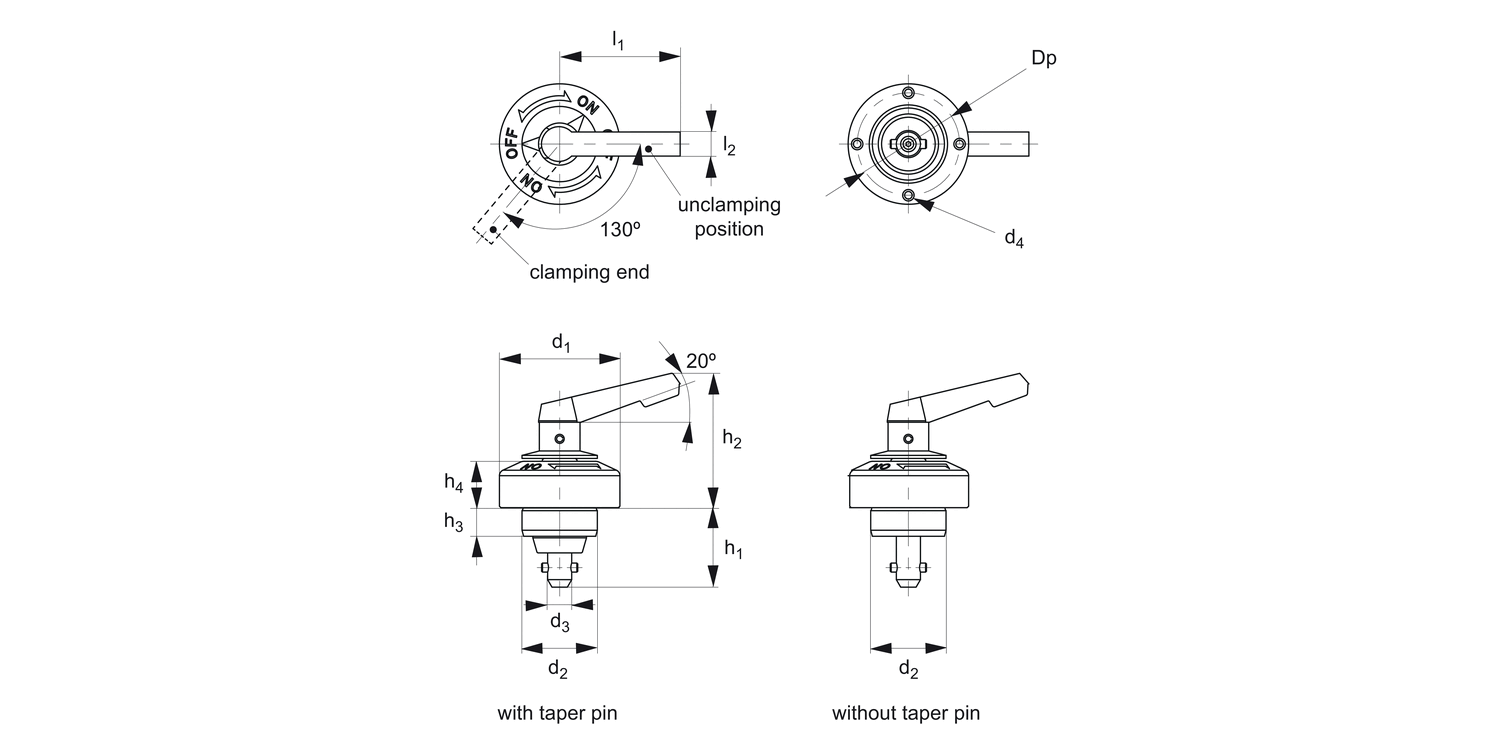

l1
40
l2
8
Dp
34
d1
40
d2
tol. G6
25
d3
8
d4
M 3x0,5
h1
26
h2
45
h3
9.5
h4
15.5
Lifting force
N
100
Weight
g
220
£ 225.40 per unit (click for quantity discounts)
Tapered pin
Without
Size
8
Clamping force
N
700
l1
40
l2
8
Dp
34
d1
40
d2
tol. G6
25
d3
8
d4
M 3x0,5
h1
26
h2
45
h3
9.5
h4
15.5
Lifting force
N
-
Weight
g
215
£ 192.69 per unit (click for quantity discounts)
Tapered pin
Size
Clamping force
N
l1
l2
Dp
d1
d2
tol. G6
d3
d4
h1
h2
h3
h4
Lifting force
N
Weight
g
| Price & Availability | Article | Tapered pin | Size | Clamping force N | l1 | l2 | Dp | d1 | d2 tol. G6 | d3 | d4 | h1 | h2 | h3 | h4 | Lifting force N | Weight g | ||||||||||||||||||
| 12085.W0008 | With | 8 | 600 | 40 | 8 | 34 | 40 | 25 | 8 | M 3x0,5 | 26 | 45 | 9.5 | 15.5 | 100 | 220 | |||||||||||||||||||
£ 225.40 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 5 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tapered pin With Size 8 Clamping force
N 600 l1 40 l2 8 Dp 34 d1 40 d2
tol. G6 25 d3 8 d4 M 3x0,5 h1 26 h2 45 h3 9.5 h4 15.5 Lifting force
N 100 Weight
g 220 | |||||||||||||||||||||||||||||||||||
| 12085.W0108 | Without | 8 | 700 | 40 | 8 | 34 | 40 | 25 | 8 | M 3x0,5 | 26 | 45 | 9.5 | 15.5 | - | 215 | |||||||||||||||||||
£ 192.69 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tapered pin Without Size 8 Clamping force
N 700 l1 40 l2 8 Dp 34 d1 40 d2
tol. G6 25 d3 8 d4 M 3x0,5 h1 26 h2 45 h3 9.5 h4 15.5 Lifting force
N - Weight
g 215 | |||||||||||||||||||||||||||||||||||
Technical & Application
Material
Body/shank: steel (SCM440), black oxide finish.
Tapered pin: steel (SCM440), nitrocarburised.
Handle: die-cast zinc (ZDC1), silver-grey painted.
Pin: stainless steel (AISI 303, 1.4305).
Technical Notes
The lifting force is the power of the inner spring of the body to push up the moveable tapered pin.
