XYZ Xpansion Pins
press-fit
12091 Manual Handles

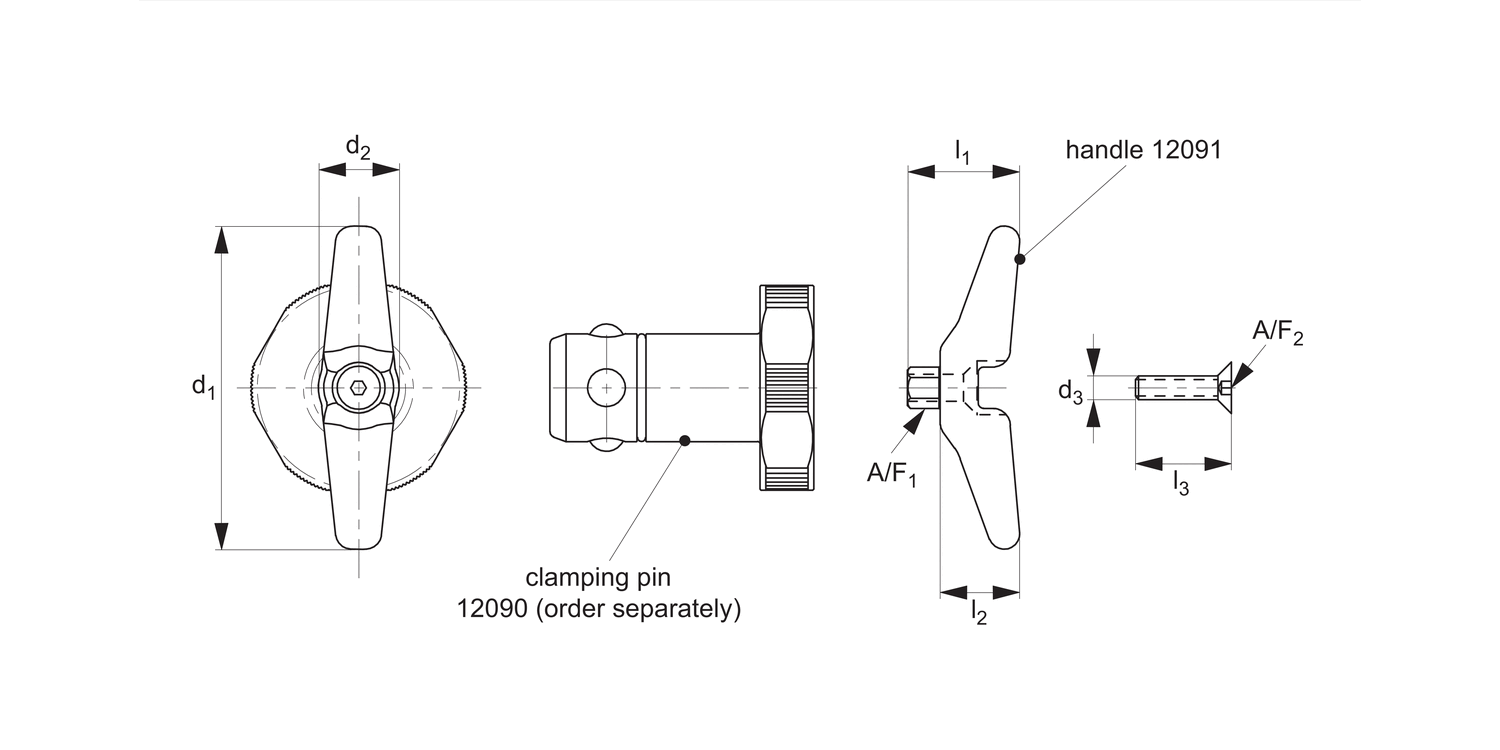

for positioning clamping pins 12090, material: Stainless steel
Alternative products you may wish to consider
For pin dia.
16/20
l1
20
l2
15
l3
16
d1
60
d2
15
d3
M 4
A/F1
6
A/F2
3
Weight
g
45
£ 13.23 per unit (click for quantity discounts)
For pin dia.
25/30
l1
25
l2
20
l3
20
d1
80
d2
15
d3
M 4
A/F1
10
A/F2
3
Weight
g
80
£ 16.89 per unit (click for quantity discounts)
For pin dia.
l1
l2
l3
d1
d2
d3
A/F1
A/F2
Weight
g
| Price & Availability | Article | For pin dia. | l1 | l2 | l3 | d1 | d2 | d3 | A/F1 | A/F2 | Weight g | |||||||||||||||
| 12091.W0900 | 16/20 | 20 | 15 | 16 | 60 | 15 | M 4 | 6 | 3 | 45 | ||||||||||||||||
£ 13.23 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For pin dia. 16/20 l1 20 l2 15 l3 16 d1 60 d2 15 d3 M 4 A/F1 6 A/F2 3 Weight
g 45 | ||||||||||||||||||||||||||
| 12091.W0902 | 25/30 | 25 | 20 | 20 | 80 | 15 | M 4 | 10 | 3 | 80 | ||||||||||||||||
£ 16.89 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For pin dia. 25/30 l1 25 l2 20 l3 20 d1 80 d2 15 d3 M 4 A/F1 10 A/F2 3 Weight
g 80 | ||||||||||||||||||||||||||
Technical & Application
Material
Stainless steel.
Technical Notes
The handle enables easy and fast operation of the positioning clamping pin. The handle is tightened to the positioning clamping pin with the M4 screw included in the delivery.
