XYZ Xpansion Pins
press-fit
12090 Positioning Clamping Pins
material: Steel or stainless steel
Order No.
12090.W0030
Material
Steel

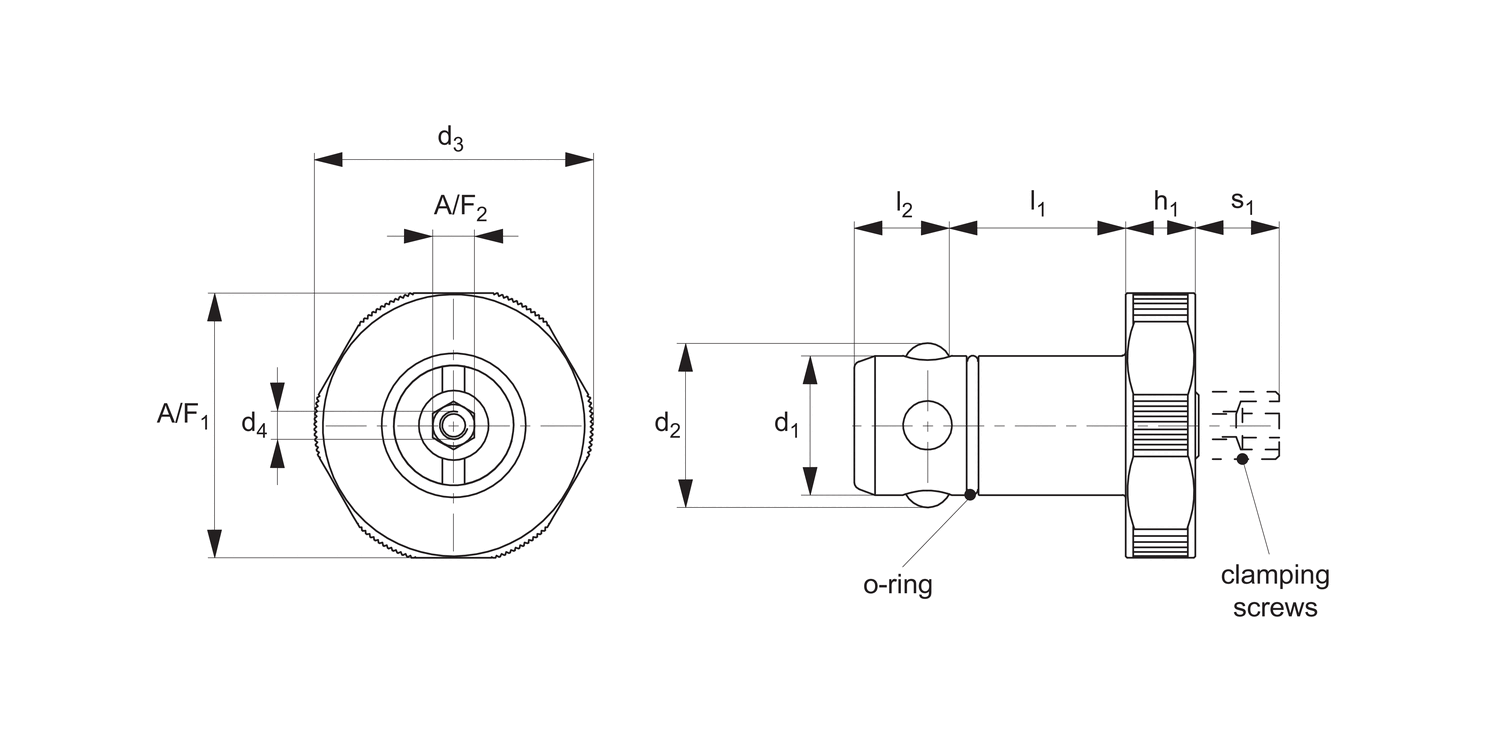

l1
+0.6
25
l2
±1
18.6
d1
-0.02|-0.05
30
d2
34.6
d3
55
d4
M 4
For clamping plate thickness
±0.05
20
h1
10
Holding force
kN
10
Stroke s1
max.
9
A/F1
53
A/F2
10
Weight
g
375
£ 159.68 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 159.68 | 0% |
| 5-9 | £ 151.70 | 5% |
| 10-19 | £ 143.71 | 10% |
| 20+ | £ 135.73 | 15% |
Technical & Application
Material
Steel version: heat treated steel, tempered and blackened.
Stainless steel version: precipitation hardened stainless steel (17-4PH, AISI 630).
Technical Notes
By tightening the clamping screw, the positioning clamping pin is centered and clamped via the four balls, into the locating bush.
The clamping screw can be operated manually via a removable handle or hex. key.
Tips
For removable handle see part no. 12091.
Important Notes
The positioning clamping pin allows fast clamping, fastening, adjusting, changing and securing of workpieces, plates, fixture systems etc.
