XYZ Xpansion Pins
press-fit

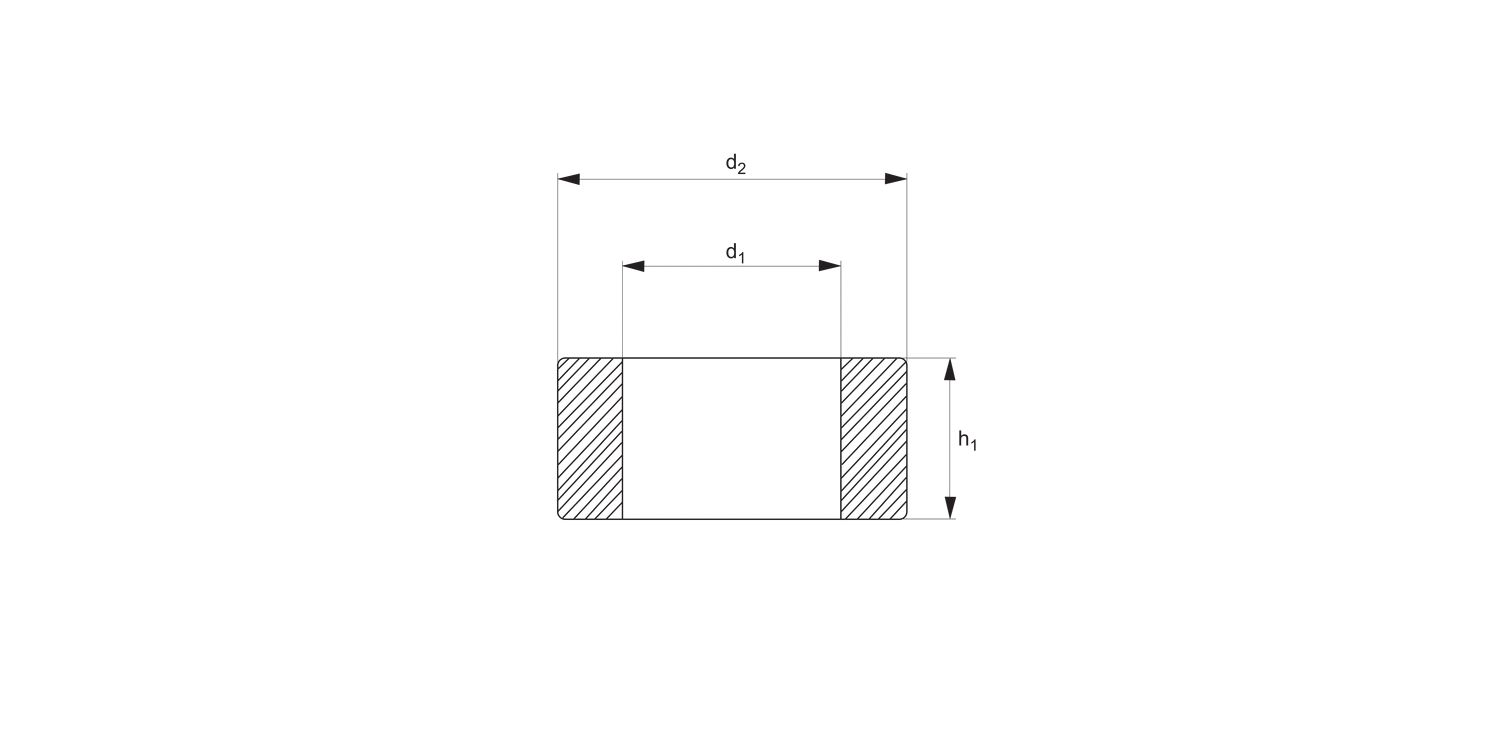

12096.1 Liner Bushing - Standard
material: Steel
Order No.
12096.W0303
Fixture plate thickness
±0.005
inch
1.50
d1
mm
30
d2
+0.0000|-0.0004
inch
1.7523
h1
inch
1.45
£ 129.77 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 129.77 | 0% |
| 10-19 | £ 116.79 | 10% |
| 20-49 | £ 110.30 | 15% |
| 50-99 | £ 103.82 | 20% |
| 100+ | £ 90.84 | 30% |
Technical & Application
Material
Alloy steel, hardness 62+ HRc.
Technical Notes
Liner bushings are a critical component of the integrated locator unit system (part no. 12095), achieving precise and accurate machining results.
