Chain Clamping Set
with lanyard

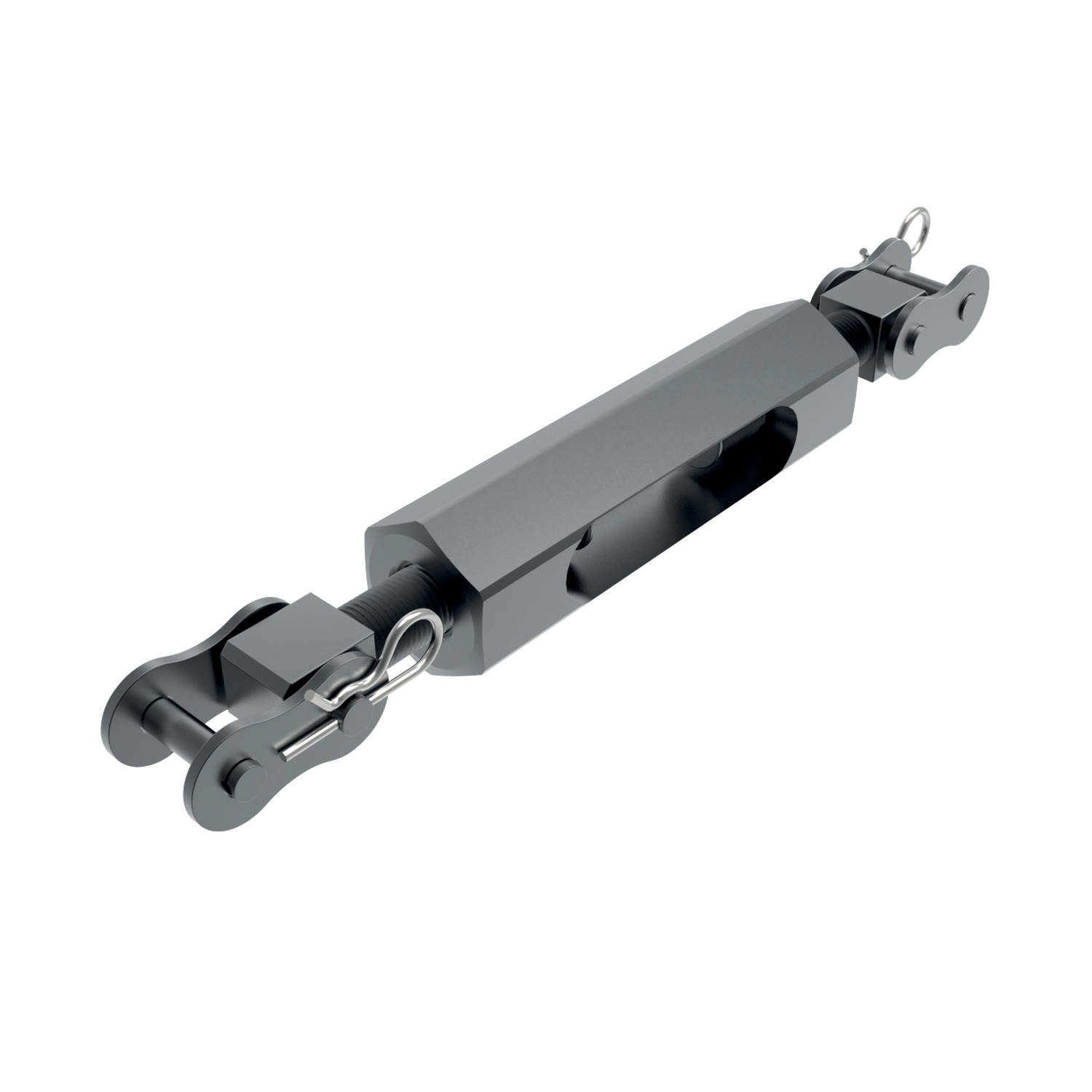

12704 Turnbuckle
for chain clamping set 12700, material: Alloy steel
Order No.
12704.W0016

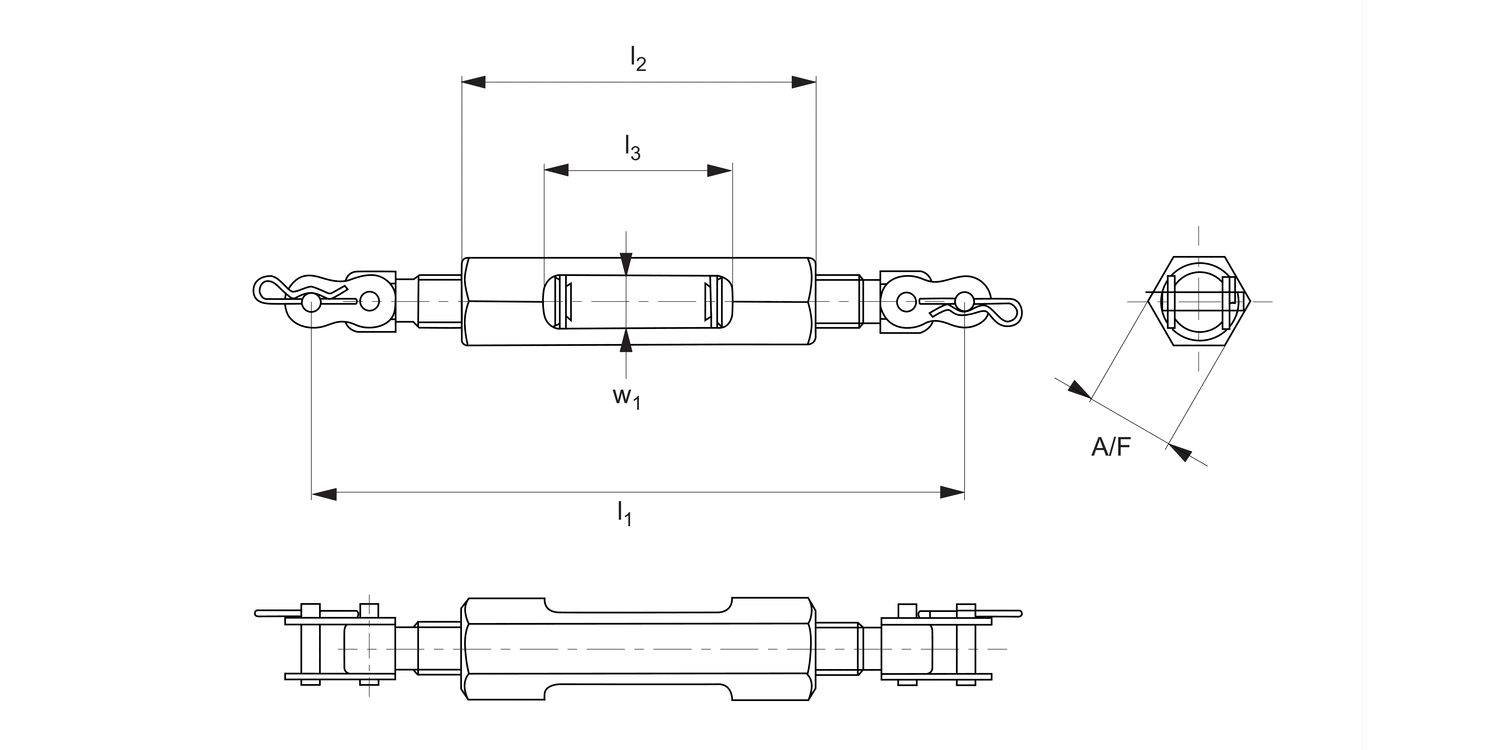

Size
16
l1
151-203
l2
126
l3
66
w1
20
A/F
30
Clamping force
max.
kN
40
Weight
g
720
£ 331.98 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 331.98 | 0% |
| 3-4 | £ 298.78 | 10% |
| 5+ | £ 282.18 | 15% |
Technical & Application
Material
Alloy steel.
Technical Notes

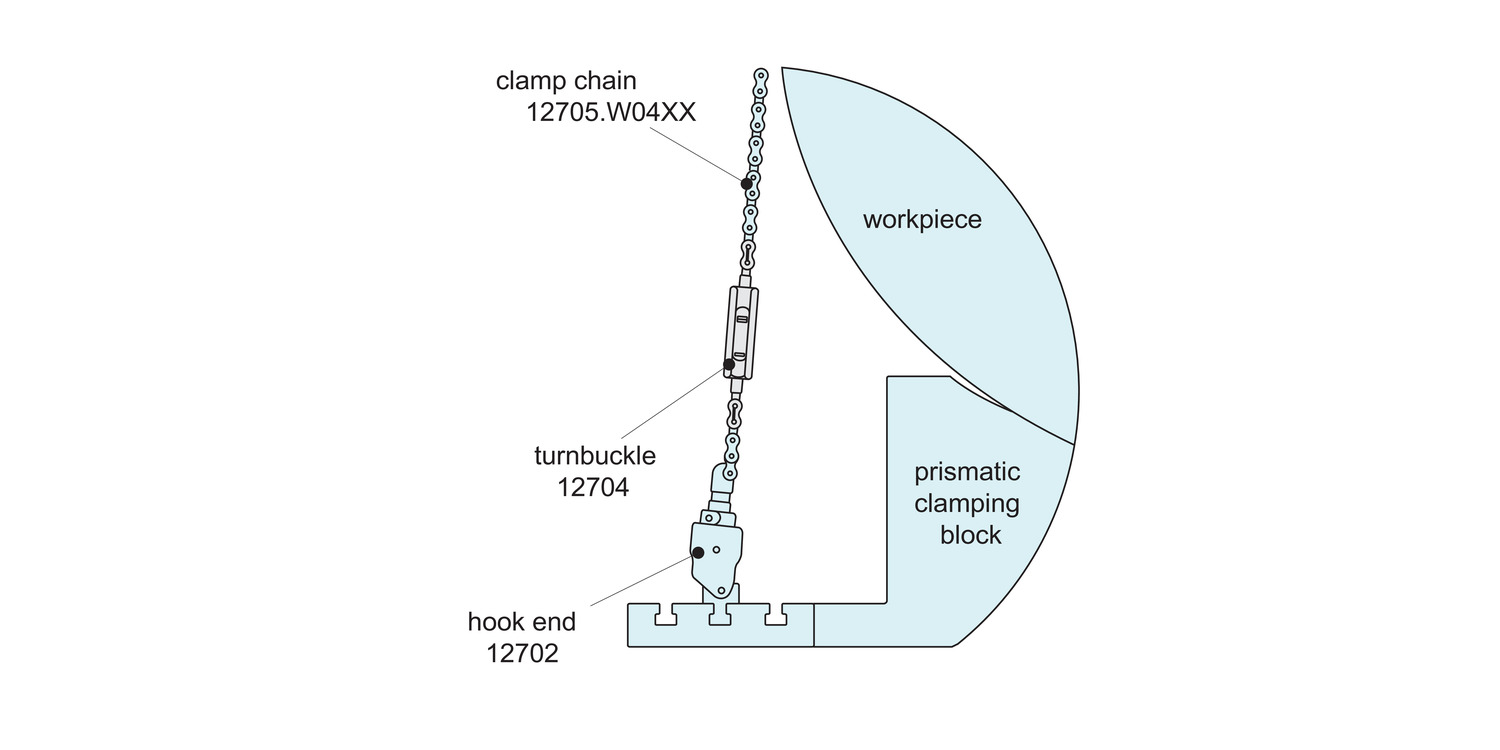

For use with chain clamp set 12700. The turnbuckle is clamped between the chains using two locking links. The chain is pre-tensioned by turning, and the play (caused by lengthening of the chain) is removed.
Product Datasheets
Application images
