Coolant Nozzles
pressure max - angled
20102 Pressure Max - Coolant Nozzles
angled - with tube - max. 100 bar - stainless or brass, material: Stainless steel
Order No.
20102.W2124-B
Thread
NPT/BSPT
Body material
Brass
A/F1
9/16"
d1
1/8"
d2
2.2
l1
20.6
l2
31.7
A/F2
1/2"
α
°
±26°
£ 58.72 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 58.72 | 0% |
| 5-9 | £ 55.78 | 5% |
| 10-19 | £ 52.85 | 10% |
| 20-49 | £ 49.91 | 15% |
| 50+ | £ 44.04 | 25% |
Technical & Application
Material
Body: stainless steel or brass.
Ball and tube: stainless steel.
Technical Notes
Max. temperature 70°C.
Max. pressure 100 bar.
symbola/symbol is an angle of adjustment either side of centre line.
Stainless steel version for use with cutting oils not compatible with brass.
Tips
Interchangeable spray tips available allowing the orifice diameter and extension length to be easily changed to suit the application.
A high velocity coolant stream increases productivity and tool life.
Also useful for low pressure applications where abrasive swarf can be a problem.
Product Datasheets

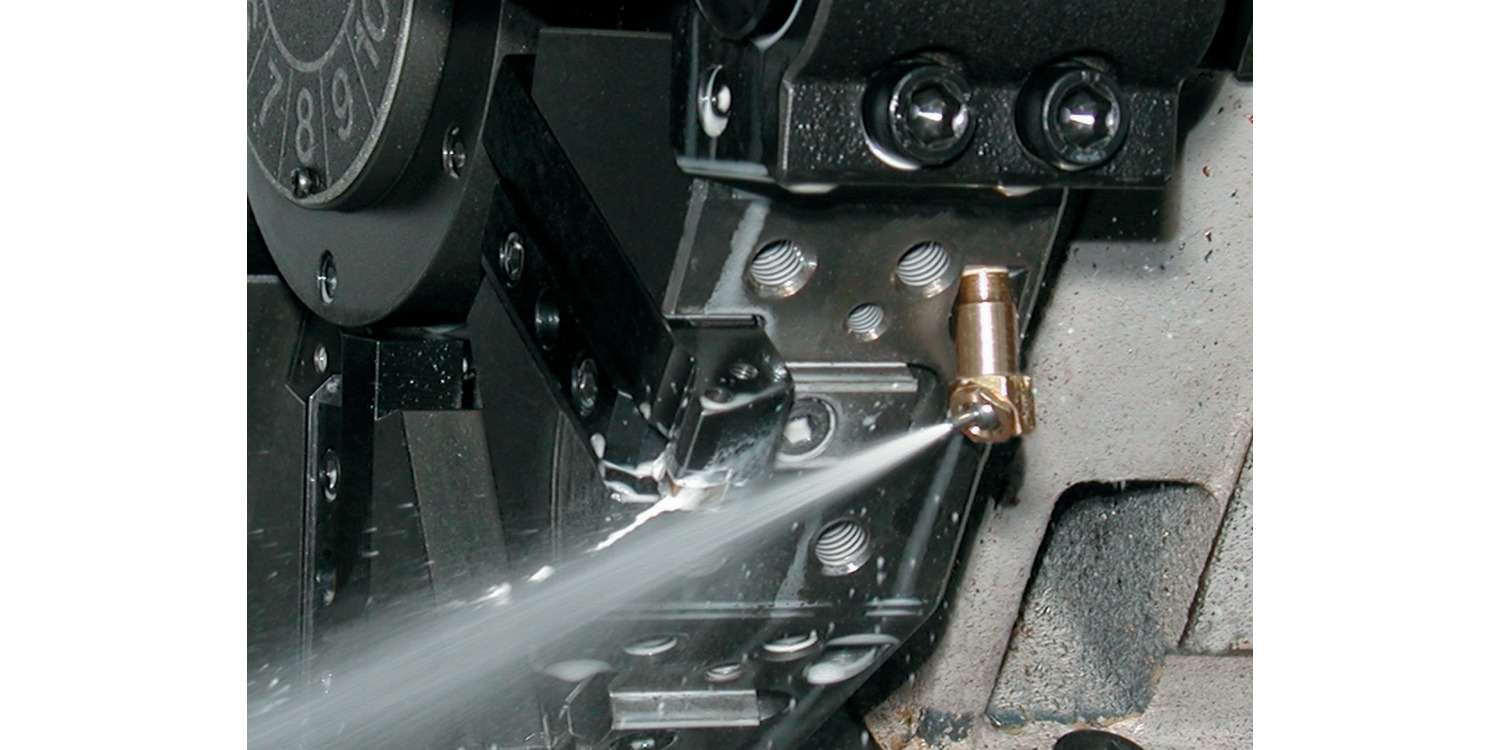

Application images
