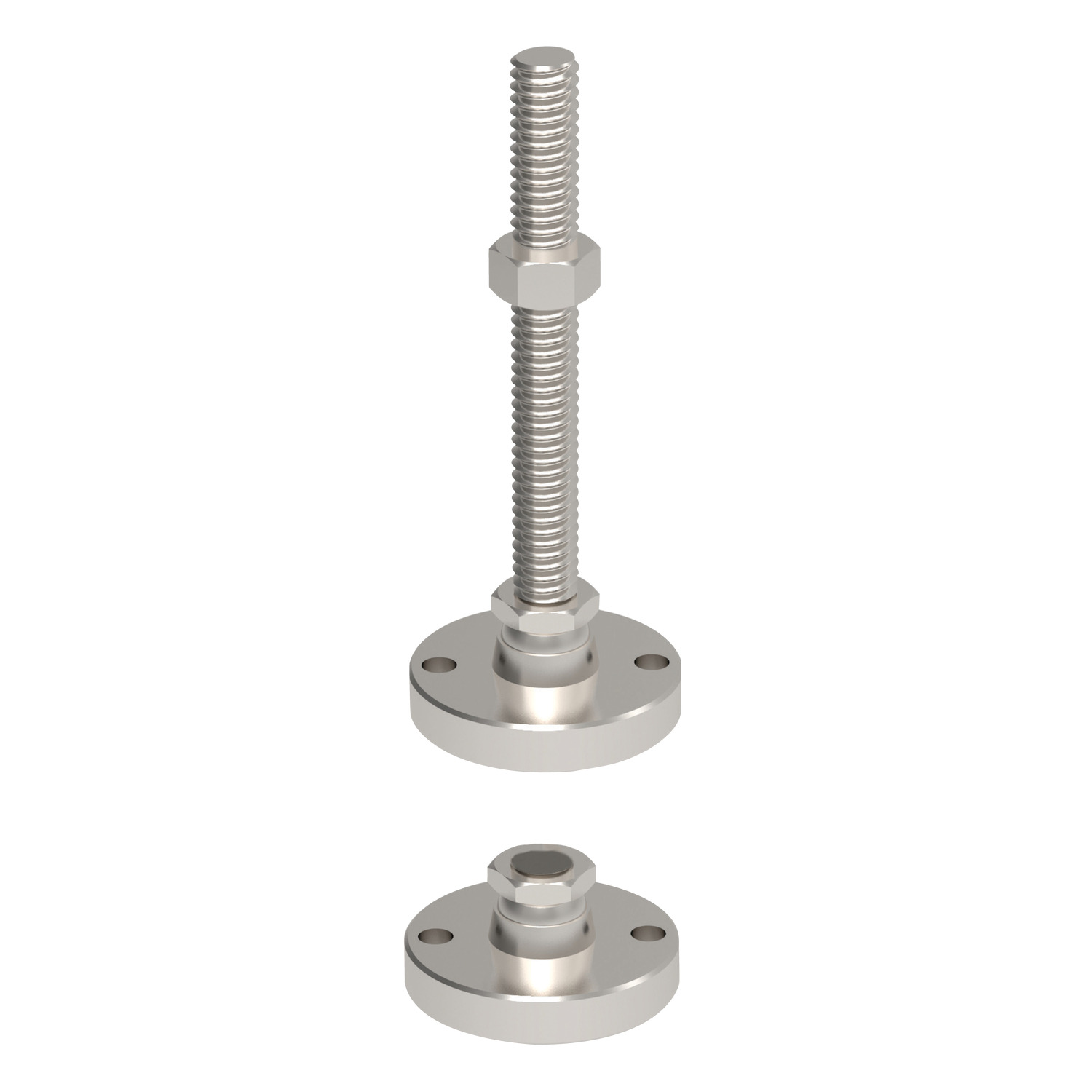

34713 Levelling Feet - Bolt Down, Heavy Duty

Name: 34713.W0856
Brand: WC
SKU: 34713.W0856
Price: 78.18 EUR
Availability: InStock

pad and bolt stainless steel, material: Stainless steel

Article properties

Order No.

34713.W0856

Finish

Pad and Bolt

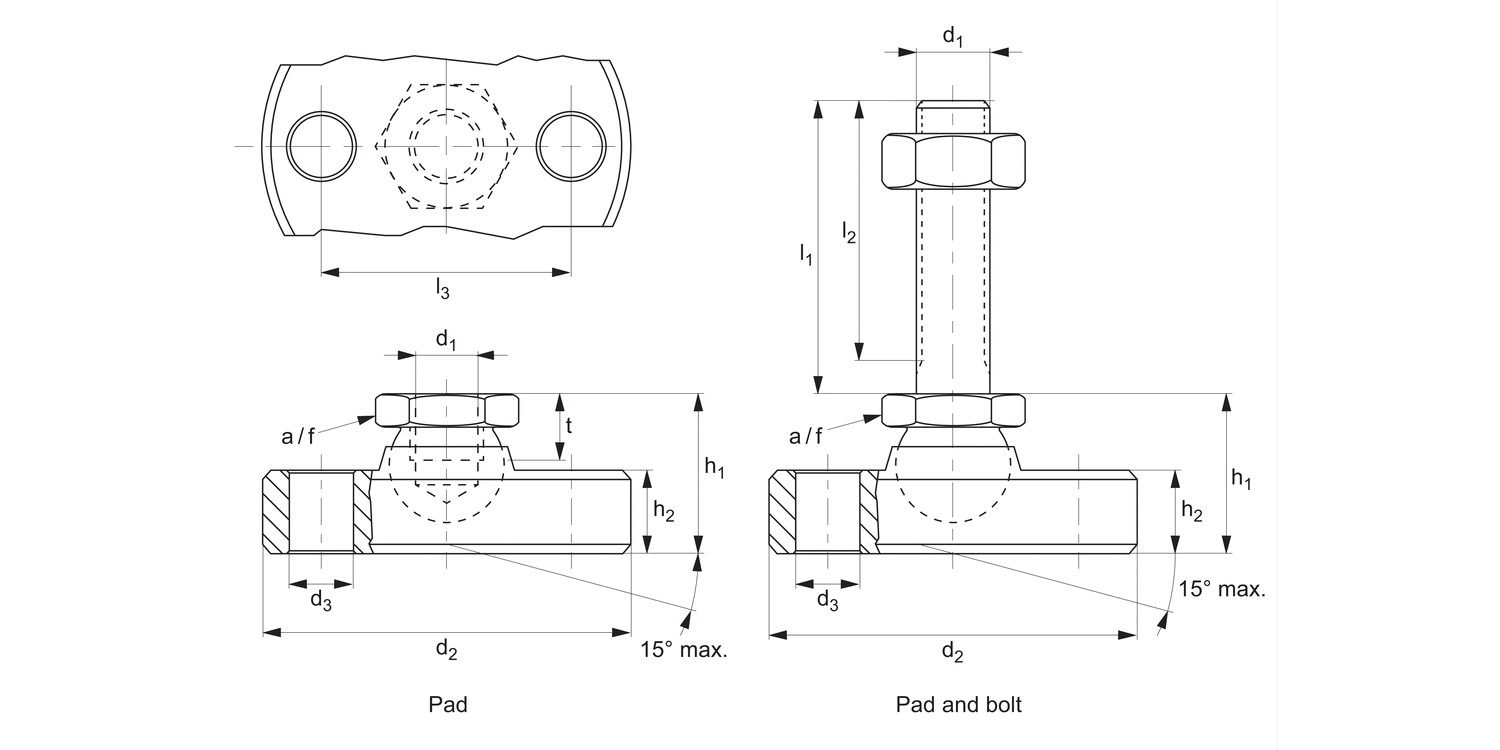

d₁

M12

l₁

150

d₂ -0.5

d₃

9.0

l₂

144.5

l₃

h₁ ≈

h₂

12.5

A/F

Static load max. kN

Weight g

459

See full product selection

£ 78.18 per unit (click for quantity discounts)

Ready to despatch 1
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 78.18	0%
5-9	£ 74.27	5%
10-19	£ 70.36	10%
20-49	£ 66.45	15%
50+	£ 58.64	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Pad and bolt: stainless steel 1.4305, AISI 303.
Lock nut: Stainless steel A2, DIN 934 and ISO 4032.

Technical Notes

To be used as foot and thrust pad. Including two mounting holes in pad.
