Double Swivel Rings
63531 Lifting Points - Double Swivel - Male
standard bar - UNC thread, material: Forged alloy
Order No.
63531.W0634I
Rated load
lb
4000

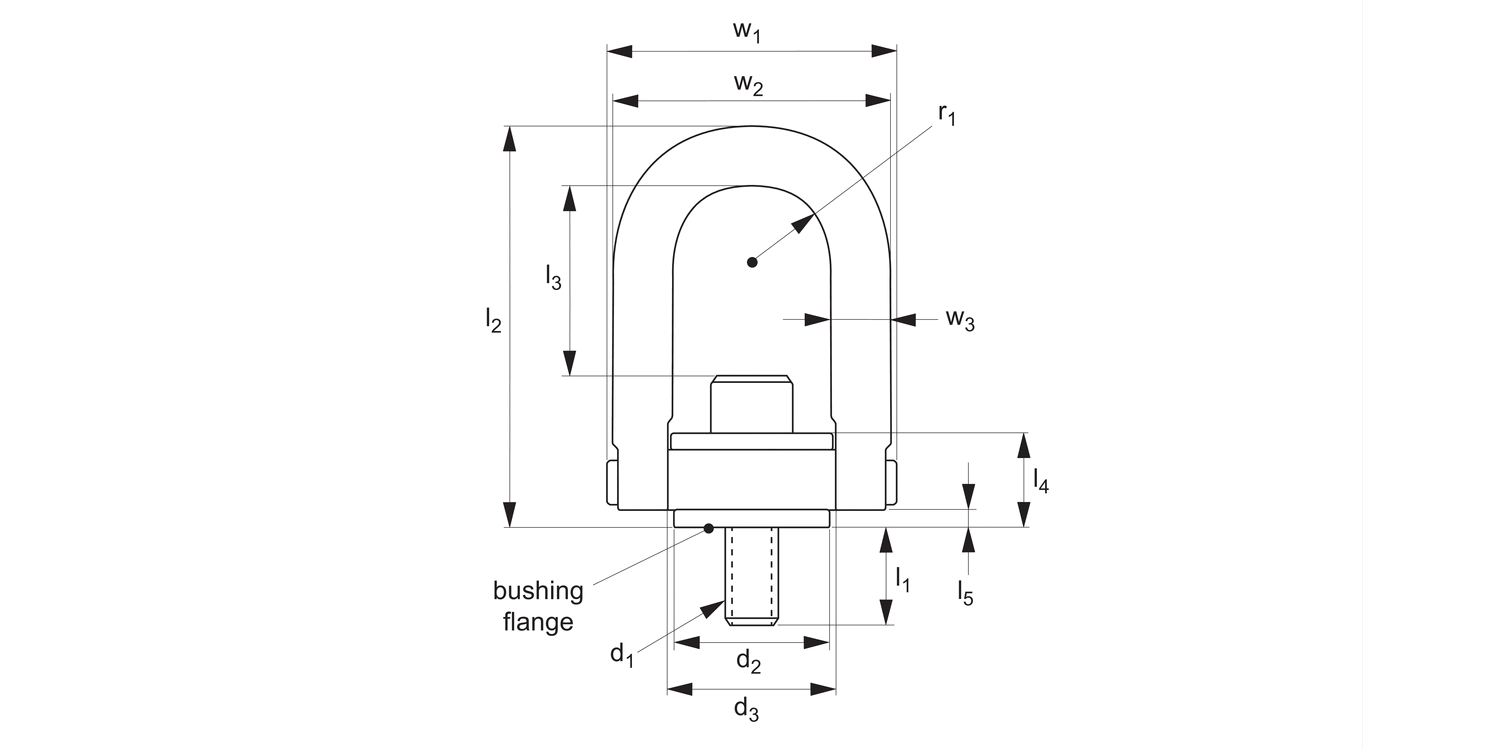

d1
5/8-11
d2
1.50
d3
1.99
l1
1.28
l2
6.72
Weight
lb
2.43
l3
2.18
l4
1.22
l5
0.16
r1
0.88
w1
3.52
w2
3.25
w3
3/4
tl
ft·lb
60
£ 250.81 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 250.81 | 0% |
| 3-4 | £ 213.19 | 15% |
| 5-9 | £ 200.65 | 20% |
| 10-19 | £ 188.11 | 25% |
| 20+ | £ 175.57 | 30% |
Technical & Application
Material
Forged alloy steel (4140), min. tensile strength 180,000psi. Black oxide coated.
Technical Notes
Meets manufacturing and design requirements of ASME -B30.26 and MIL-STD 209. Magnetic particle inspected per ASTM 1444.
Tips
Min. design safety factor 5:1. 360° swivel and 180° pivot underload. Each part individually serial numbered.
tl = recommended torque load (ft - lbs)
Important Notes
All dimensions in imperial.
Always follow safety instructions.
