Pull Handles
heavy duty, aluminium
79250 Pull Handles
material: Polyamide
Order No.
79250.W0660
Type
Two
Finish
Plastic Coat
l1
600
l2
644
h1 height to centre
60
£ 46.26 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 46.26 | 0% |
| 5-9 | £ 43.95 | 5% |
| 10-19 | £ 41.63 | 10% |
| 20-49 | £ 39.32 | 15% |
| 50+ | £ 34.70 | 25% |
Technical & Application
Material
Handle shank: polyamide, PA 6 glass ball reinforced, black, semi-matt with fine structure.
Connection tube: aluminium Al Mg Si 0,5.
Surface finishes: ground and anodised in natural colour. Grooved plastic cover, black. Powder coated, black.
Technical Notes

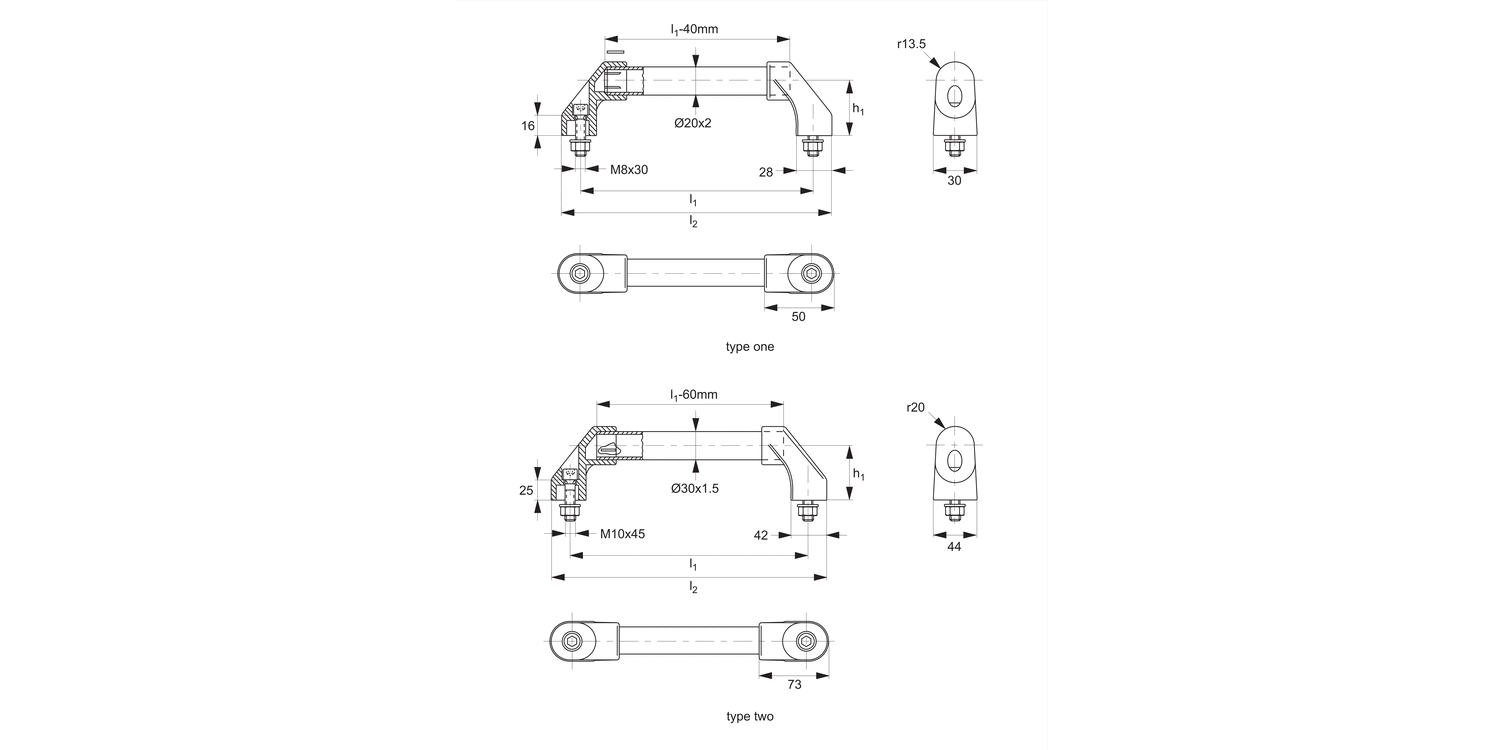

Type one: supplied with hex screws DIN 912 M8x30, and suitable nuts and washers.
Type two: supplied with hex screws DIN912 M10x45 and suitable nuts and washers.
Minimum stress resistance 1000N.
Tips
The handle shank is fitted with 4 clamping pins, when the connection tube is pressed in the pins form around the tube and provide a firm hold.
