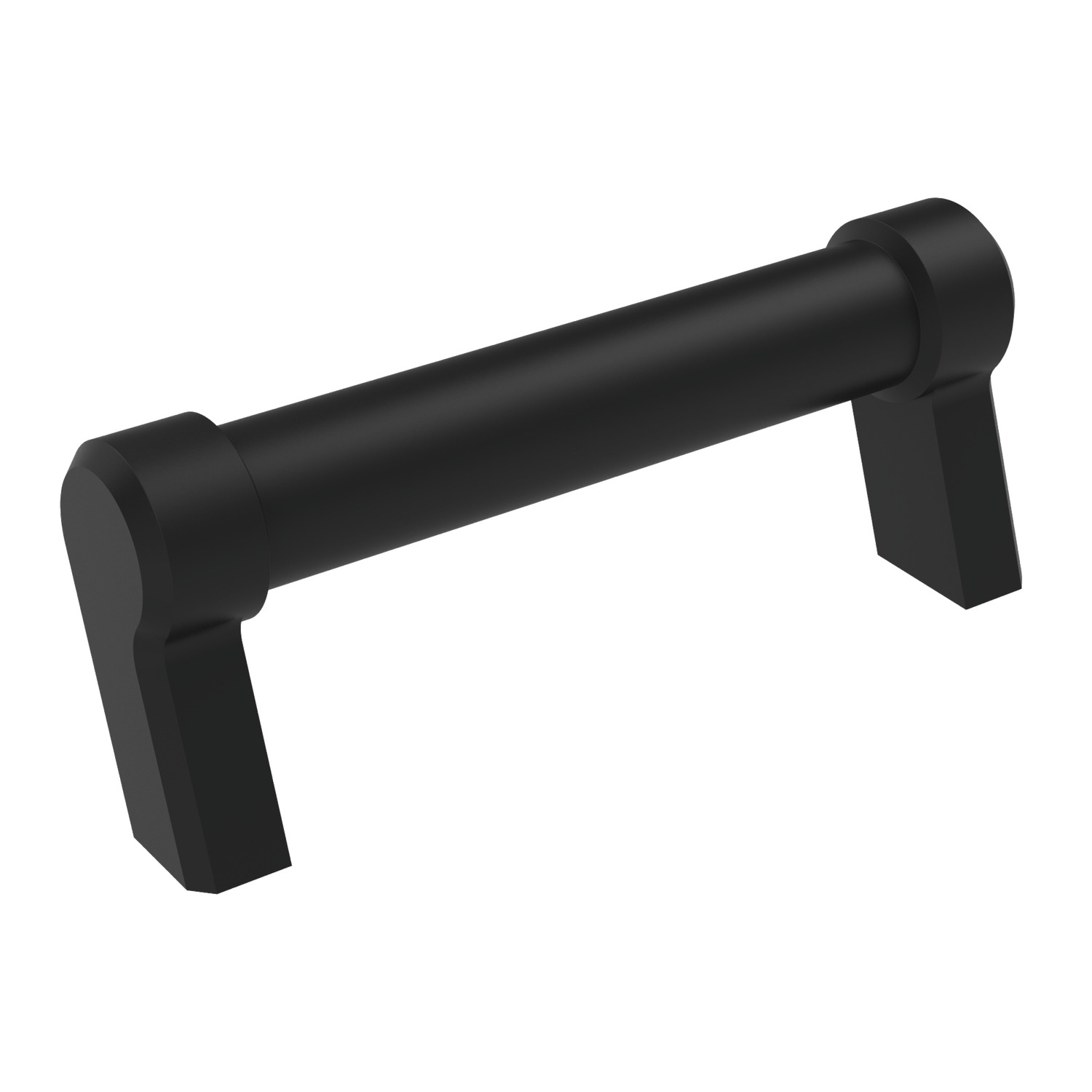

79380 Pull Handle, Angled

Name: 79380.W0140-7
Brand: WC
SKU: 79380.W0140-7
Price: 24.53 GBP
Availability: InStock

plastic, material: Polyamide

CAD files

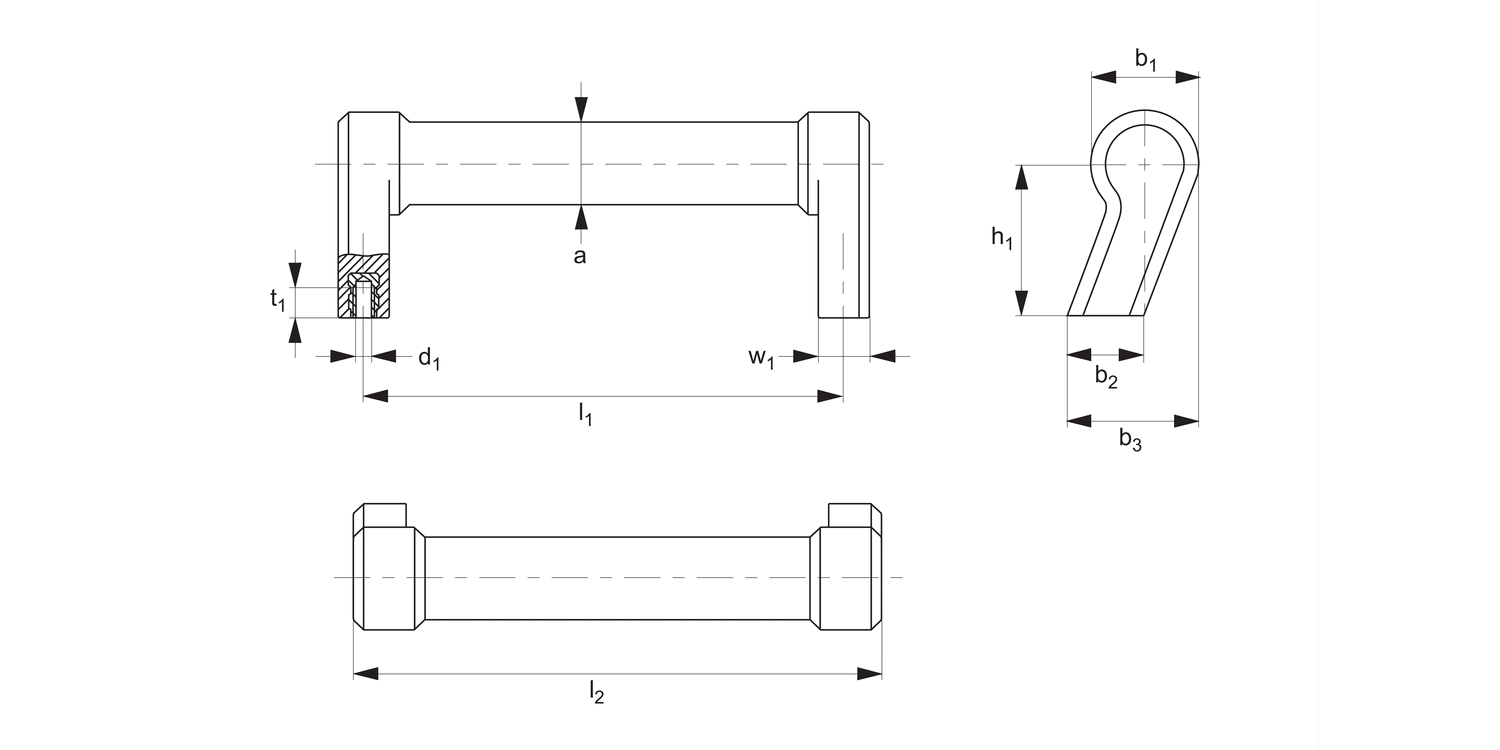

Article properties

Order No.

79380.W0140-7

Finish

Light grey

l₁

140

l₂

155

Ø24

b₁

b₂

b₃

d₁

M 6

h₁

t₁

w₁

See full product selection

£ 24.53 per unit (click for quantity discounts)

Ready to despatch 3
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 24.53	0%
5-9	£ 23.30	5%
10-19	£ 22.08	10%
20-49	£ 20.85	15%
50+	£ 18.40	25%

Download product datasheet

Technical & Application

Material

Handle of polyamide PA 6, glass ball reinforced with threaded brass bushings.
Black or light grey semi matte with fine-grain structure.

Technical Notes

Stress resistance: min. 1000N.

Product Datasheets

79380 Pull Handle, Angled7 July 2026, 13:57 / 112.30 kB

Pull Handles - Heavy Duty7 July 2026, 13:56 / 665.64 kB

Pull Handles7 July 2026, 13:56 / 4.23 MB

Grips, Handles & Handwheels7 July 2026, 13:56 / 11.95 MB

Design Elements7 July 2026, 13:55 / 69.36 MB
