Pull Handles
heavy duty, aluminium

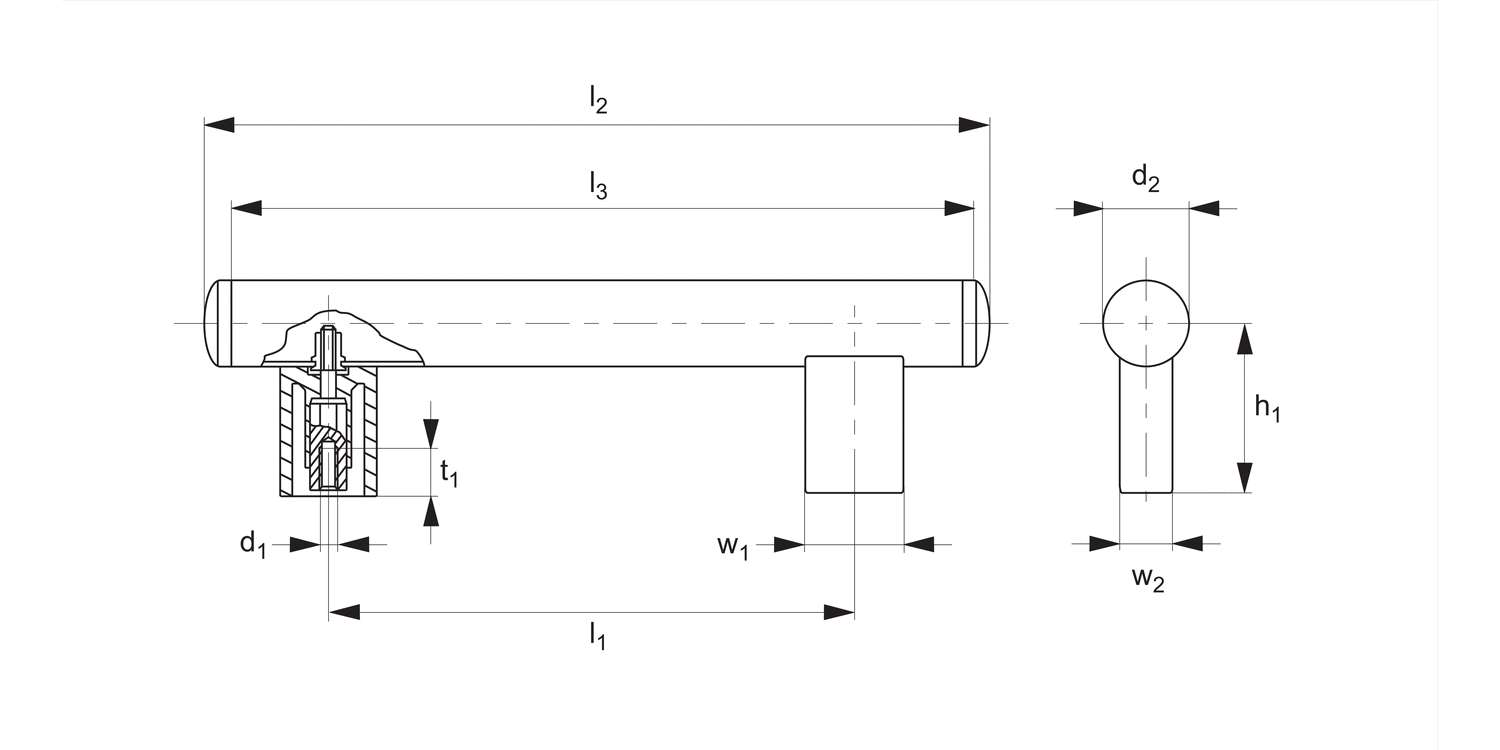

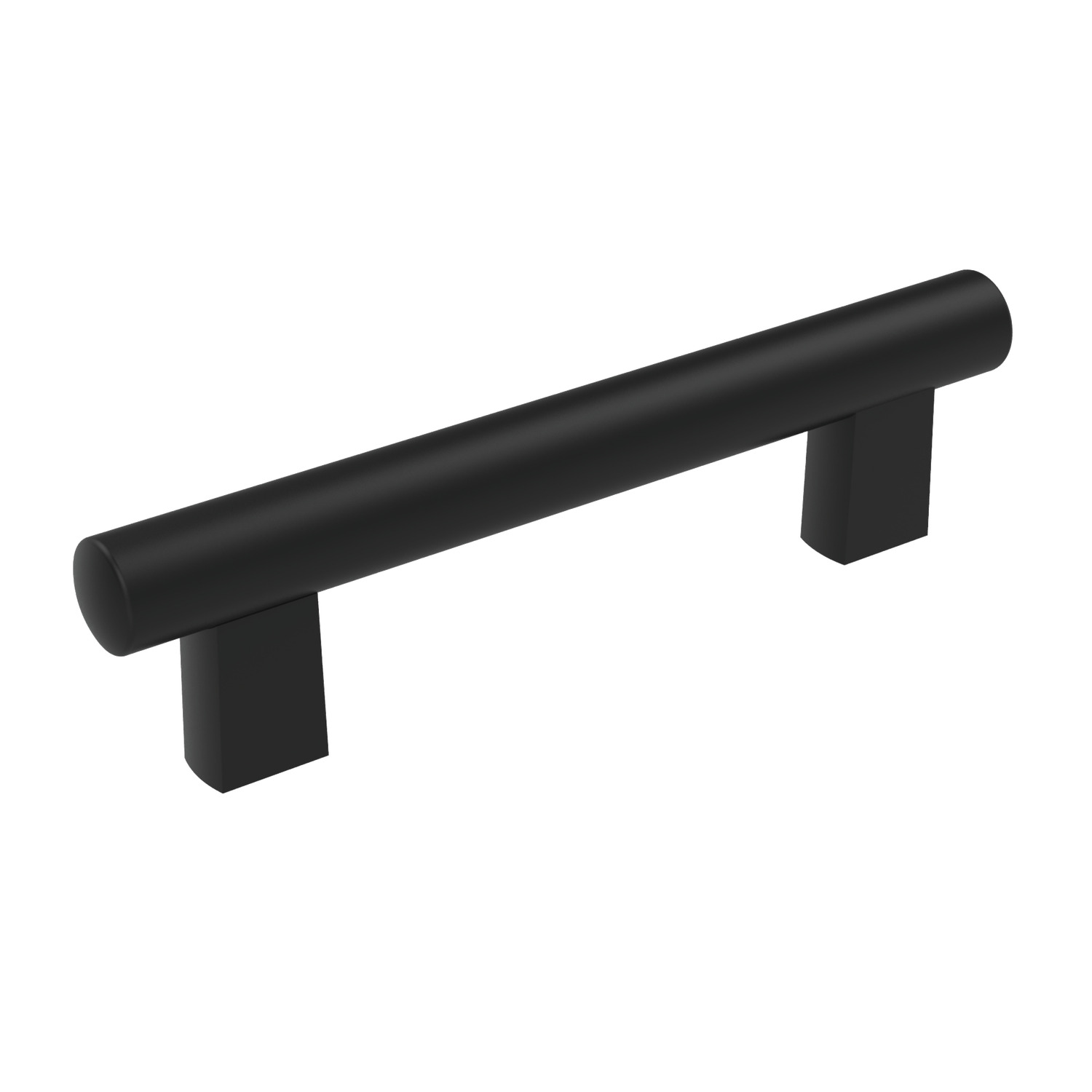

79400 Pull Handles - Tube Type
material: Polyamide
Order No.
79400.W0250-4
Colour
Black
l1
250
l2
338
l3
320
d1
M 6
d2
30 x 1,5
h1
60
t1
17
w1
34
w2
20
£ 43.88 per unit (click for quantity discounts)
Ready to despatch 3
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 43.88 | 0% |
| 5-9 | £ 41.69 | 5% |
| 10-19 | £ 39.49 | 10% |
| 20-49 | £ 37.30 | 15% |
| 50+ | £ 32.91 | 25% |
Technical & Application
Material
Connection shank: Polyamide (PA 6), glass bead reinforced, black, semi-matte. With steel threaded insert.
Connection tube: aluminium Al Mg Si 0,5, Ø30x1,5mm. Precision ground and anodised.
Technical Notes
Minimum stress resistance 800N.
Tips
Screwed connection from the shank to the tube with non-detachable blind rivet to prevent it being pulled off.
Important Notes
Handle lengths and screw down spacers available as required on request.
