Pull Handles
heavy duty, aluminium

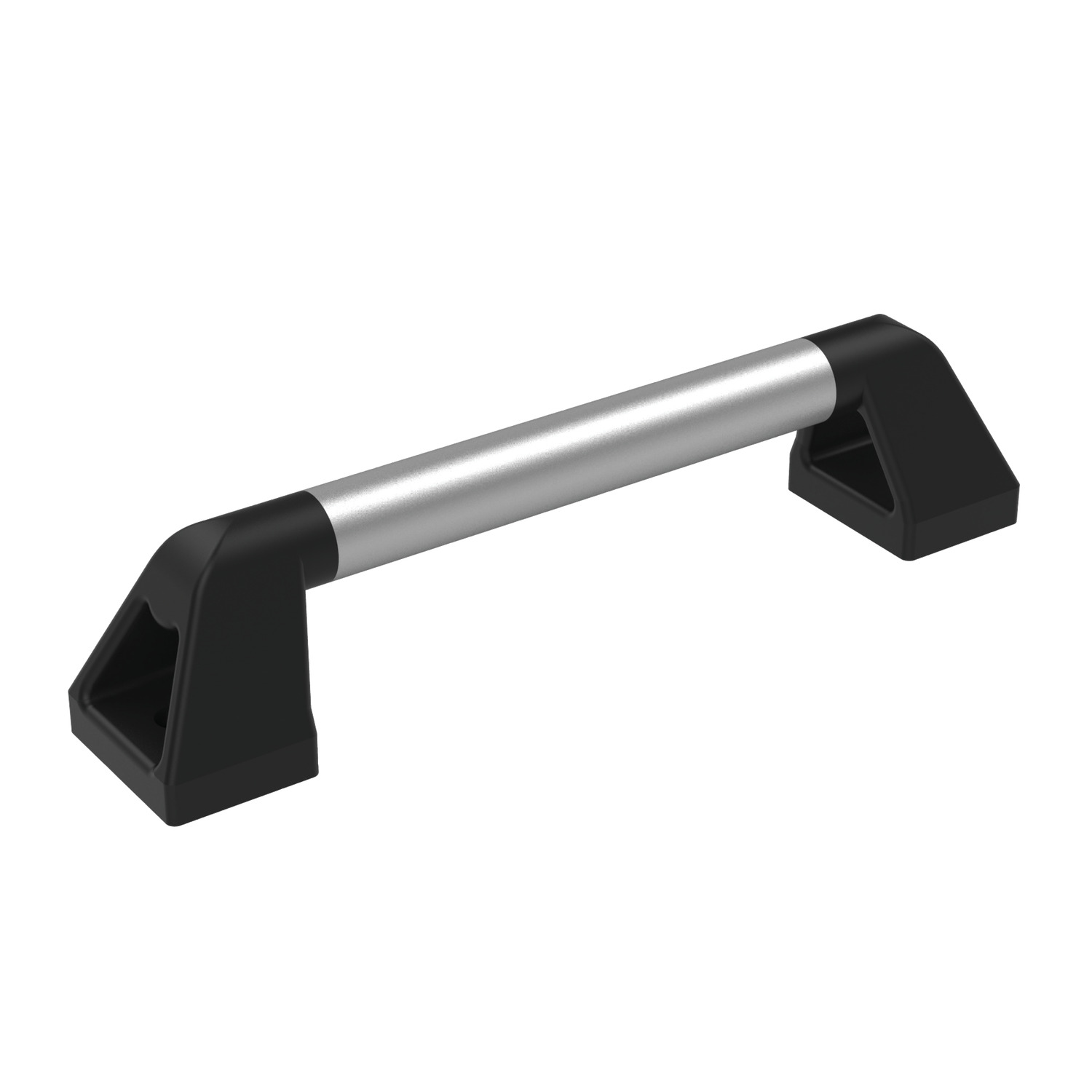

79420 Pull Handles - Heavy Duty
stainless steel and plastic, material: Thermoplastic
Order No.
79420.W0351
Type
Rear Mounting
l1
350
l2
400
l3
230
l4
35
a
35 x 2
b1
80
h1
90
w1
62
w2
40
£ 150.33 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 150.33 | 0% |
| 5-9 | £ 142.81 | 5% |
| 10-19 | £ 135.30 | 10% |
| 20-49 | £ 127.78 | 15% |
| 50+ | £ 112.75 | 25% |
Technical & Application
Material
Handle shank: polyamide (PA 6), glass ball reinforced, black, silk matte finish.
Connection tube: stainless steel 1.4301 AISI 304, pipe Ø35x2mm, precision ground.
Technical Notes
Front mounting: supplied with stainless steel hex screws DIN 912, M10x25 and suitable nuts and washers.
Rear mounting: no screws supplied.
Minimum stress resistance >1000N.
Tips
Clamp ridges on handle shanks hold connection tube firmly, O-rings provide splash proof water tight seal. Any handle length on request.
