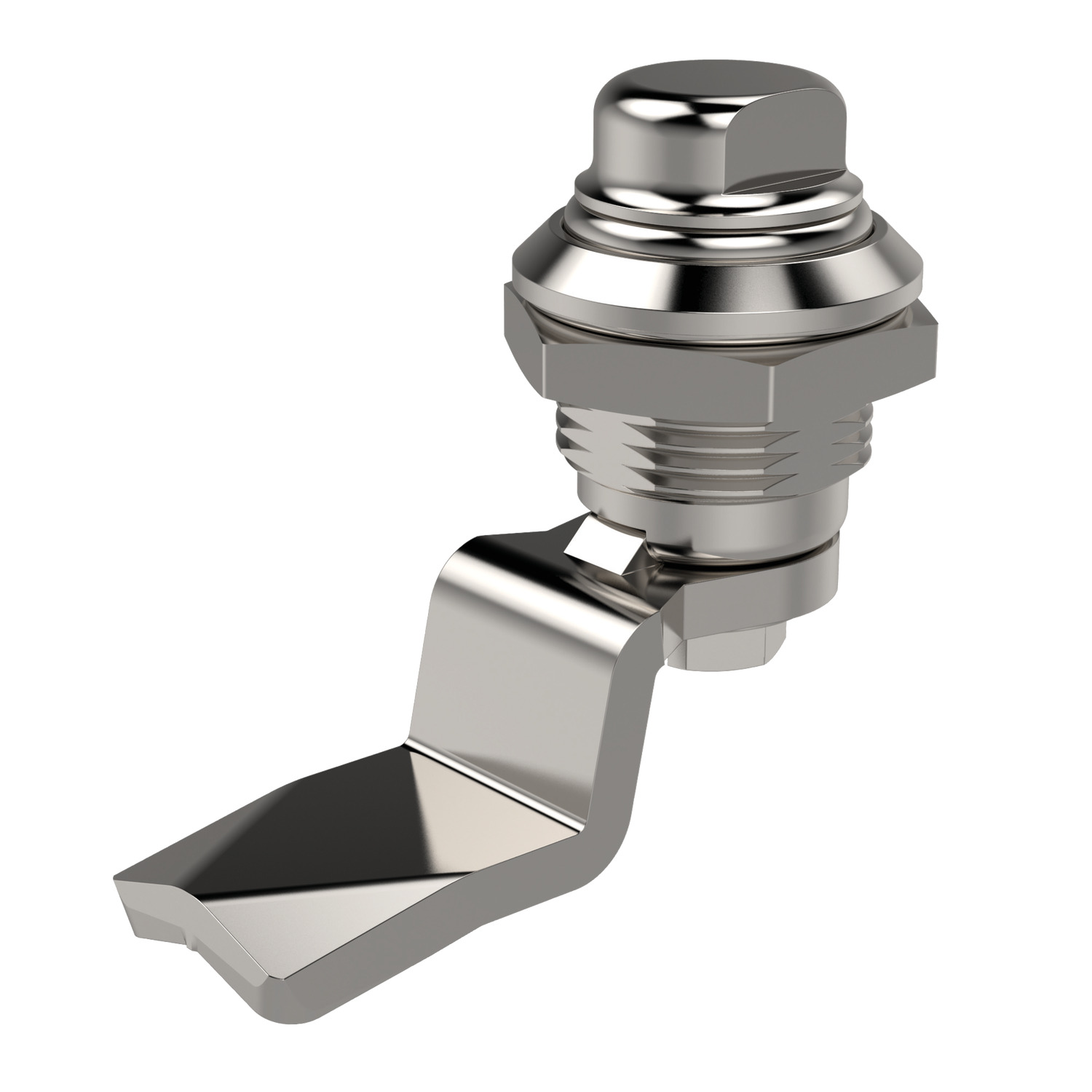

A1030 Cam Latches - Flexi-System

Name: A1030.AW0010
Brand: WC
SKU: A1030.AW0010
Price: 21.9 EUR
Availability: InStock

hygienic - stainless steel, material: Stainless steel

Article properties

Order No.

A1030.AW0010

Extruded driver

Stadium

See full product selection

£ 21.90 per unit (click for quantity discounts)

Ready to despatch 167
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-19	£ 21.90	0%
20-49	£ 19.71	10%
50-99	£ 18.62	15%
100-499	£ 16.43	25%
500+	£ 14.24	35%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Body, inset and screw: stainless steel AISI 316.
Fitted with sealing gasket to achieve IP65 rating.
Sealing washer: silicone.
Not supplied: CAM nor KEY - order separately.

Technical Notes

Order cam key separately.
No need for key. Designed for use with spanner.
Cams: see suitable cam A0203 (steel), A0210 (stainless). Select "without projection" cam type.

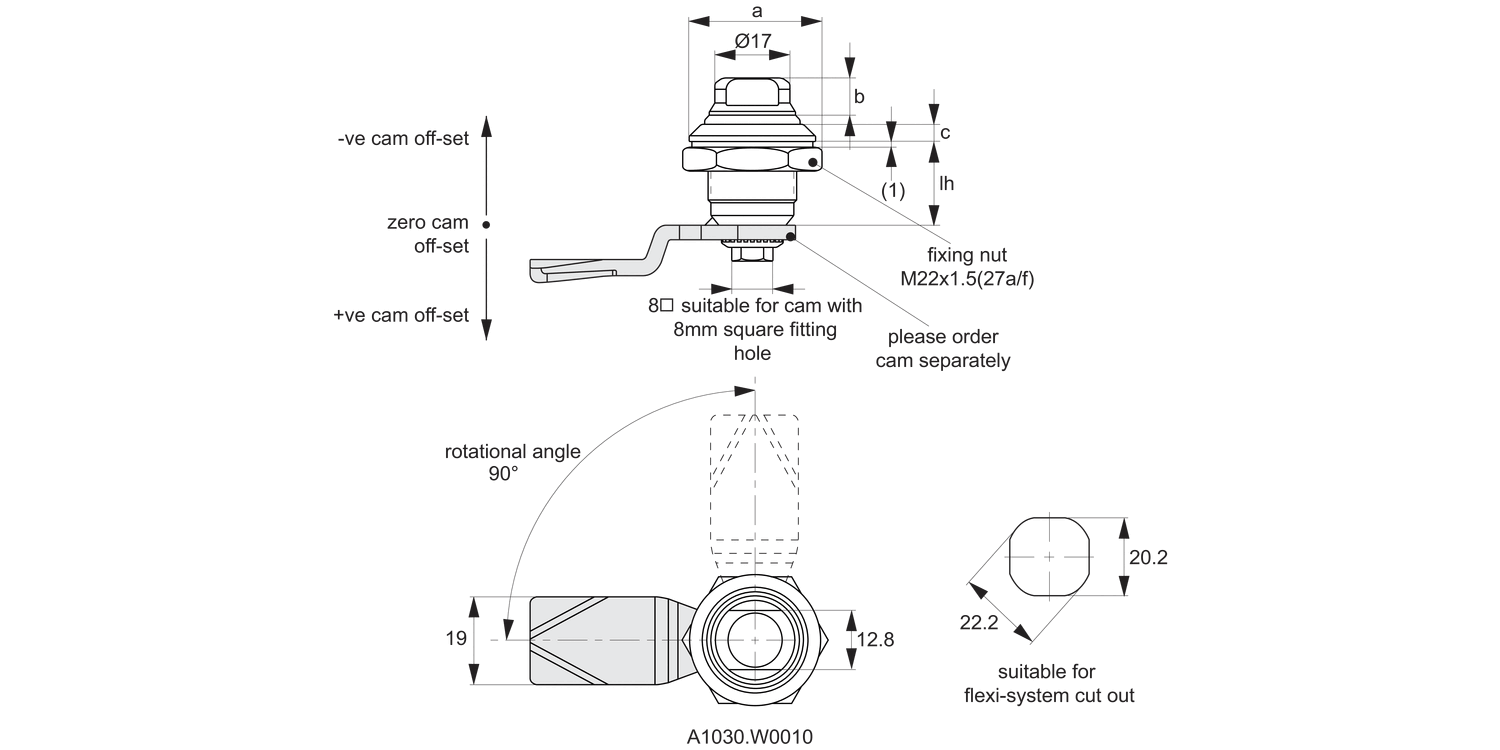

Dimensions ch and cl relate to cam. Use formula to calculate ch (required cam off-set), and refer to cam selection chart;
ch = h - lh where;
ch = required cam off-set/height.
h = grip length (distance between inside of latch face and front of cam).
lh = body length of cam latch/lock to be used (see product table below).
