Cam Latch Flexi-System
insert driver - fixed grip
A1041 Cam Latches - Flexi-System
insert driver - push to close - fixed grip - zinc, material: Die cast zinc
Alternative products you may wish to consider

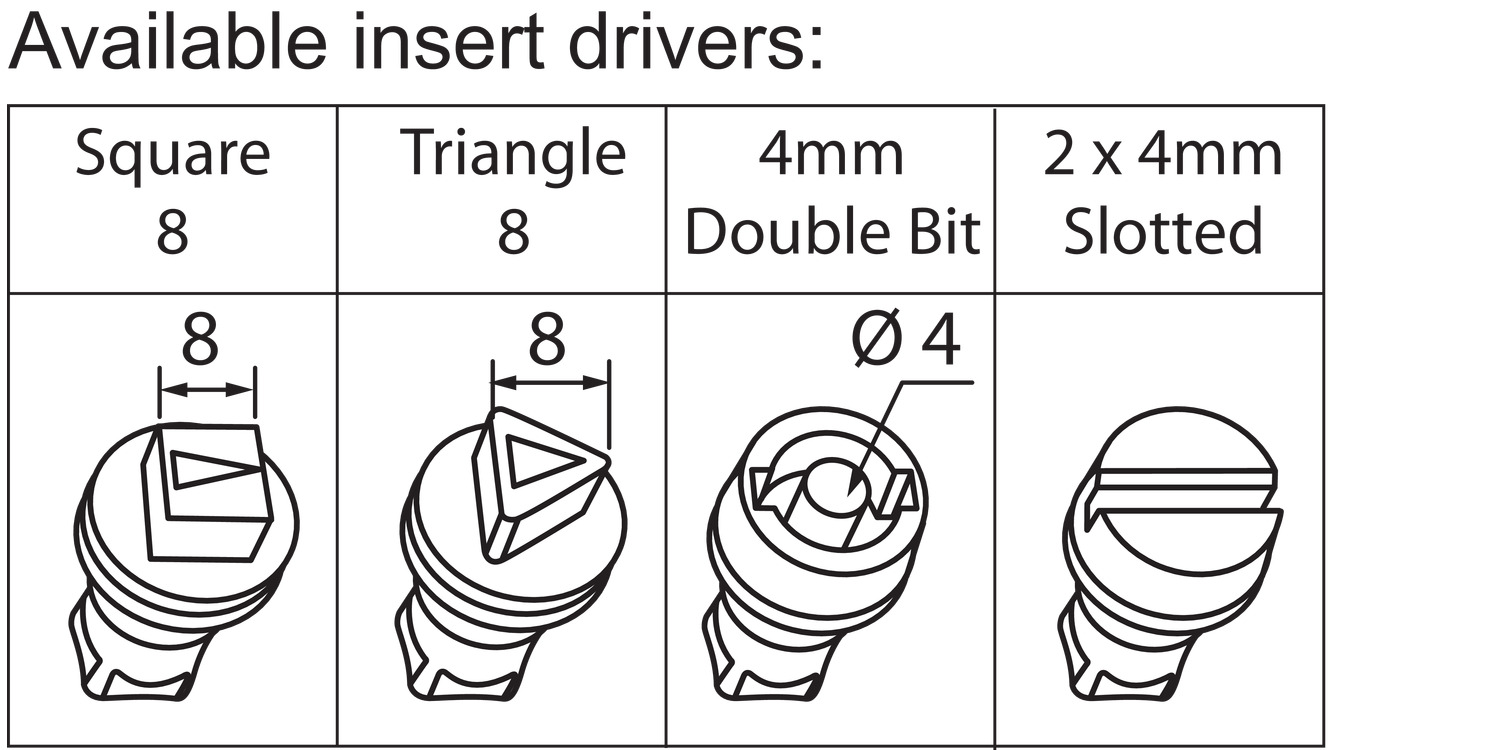

Type
Right
Insert driver
Square 8
d1
28
h1
4
lh
18
h
22
£ 4.58 per unit (click for quantity discounts)
Type
Right
Insert driver
Triangle 8
d1
28
h1
4
lh
18
h
22
£ 4.58 per unit (click for quantity discounts)
Type
Right
Insert driver
4mm Double Bit
d1
28
h1
4
lh
18
h
22
£ 4.58 per unit (click for quantity discounts)
Type
Right
Insert driver
Slotted (2x4)
d1
28
h1
4
lh
18
h
22
£ 4.58 per unit (click for quantity discounts)
Type
Left
Insert driver
Square 8
d1
28
h1
4
lh
18
h
22
£ 4.58 per unit (click for quantity discounts)
Type
Left
Insert driver
Triangle 8
d1
28
h1
4
lh
18
h
22
£ 4.58 per unit (click for quantity discounts)
Type
Left
Insert driver
4mm Double Bit
d1
28
h1
4
lh
18
h
22
£ 4.58 per unit (click for quantity discounts)
Type
Left
Insert driver
Slotted (2x4)
d1
28
h1
4
lh
18
h
22
£ 4.58 per unit (click for quantity discounts)
Type
Insert driver
d1
h1
lh
h
| Price & Availability | Article | Type | Insert driver | d1 | h1 | lh | h | ||||||||||||||||||
| A1041.AW0020 | Right | Square 8 | 28 | 4 | 18 | 22 | |||||||||||||||||||
£ 4.58 per unit (click for quantity discounts) Ready to despatch 40 Need more? Please call us.
Type Right Insert driver Square 8 d1 28 h1 4 lh 18 h 22 | |||||||||||||||||||||||||
| A1041.AW0050 | Right | Triangle 8 | 28 | 4 | 18 | 22 | |||||||||||||||||||
£ 4.58 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type Right Insert driver Triangle 8 d1 28 h1 4 lh 18 h 22 | |||||||||||||||||||||||||
| A1041.AW0070 | Right | 4mm Double Bit | 28 | 4 | 18 | 22 | |||||||||||||||||||
£ 4.58 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type Right Insert driver 4mm Double Bit d1 28 h1 4 lh 18 h 22 | |||||||||||||||||||||||||
| A1041.AW0080 | Right | Slotted (2x4) | 28 | 4 | 18 | 22 | |||||||||||||||||||
£ 4.58 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type Right Insert driver Slotted (2x4) d1 28 h1 4 lh 18 h 22 | |||||||||||||||||||||||||
| A1041.AW0520 | Left | Square 8 | 28 | 4 | 18 | 22 | |||||||||||||||||||
£ 4.58 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type Left Insert driver Square 8 d1 28 h1 4 lh 18 h 22 | |||||||||||||||||||||||||
| A1041.AW0550 | Left | Triangle 8 | 28 | 4 | 18 | 22 | |||||||||||||||||||
£ 4.58 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type Left Insert driver Triangle 8 d1 28 h1 4 lh 18 h 22 | |||||||||||||||||||||||||
| A1041.AW0570 | Left | 4mm Double Bit | 28 | 4 | 18 | 22 | |||||||||||||||||||
£ 4.58 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type Left Insert driver 4mm Double Bit d1 28 h1 4 lh 18 h 22 | |||||||||||||||||||||||||
| A1041.AW0580 | Left | Slotted (2x4) | 28 | 4 | 18 | 22 | |||||||||||||||||||
£ 4.58 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type Left Insert driver Slotted (2x4) d1 28 h1 4 lh 18 h 22 | |||||||||||||||||||||||||
Technical & Application
Material
Body & Insert: die cast zinc, bright chrome plated.
Supplied with: Cam: die cast zinc, bright chrome plated - fixed off-set of 4mm.
Not supplied: KEY - order separately.
Technical Notes
Keys: see A0102.
Tips

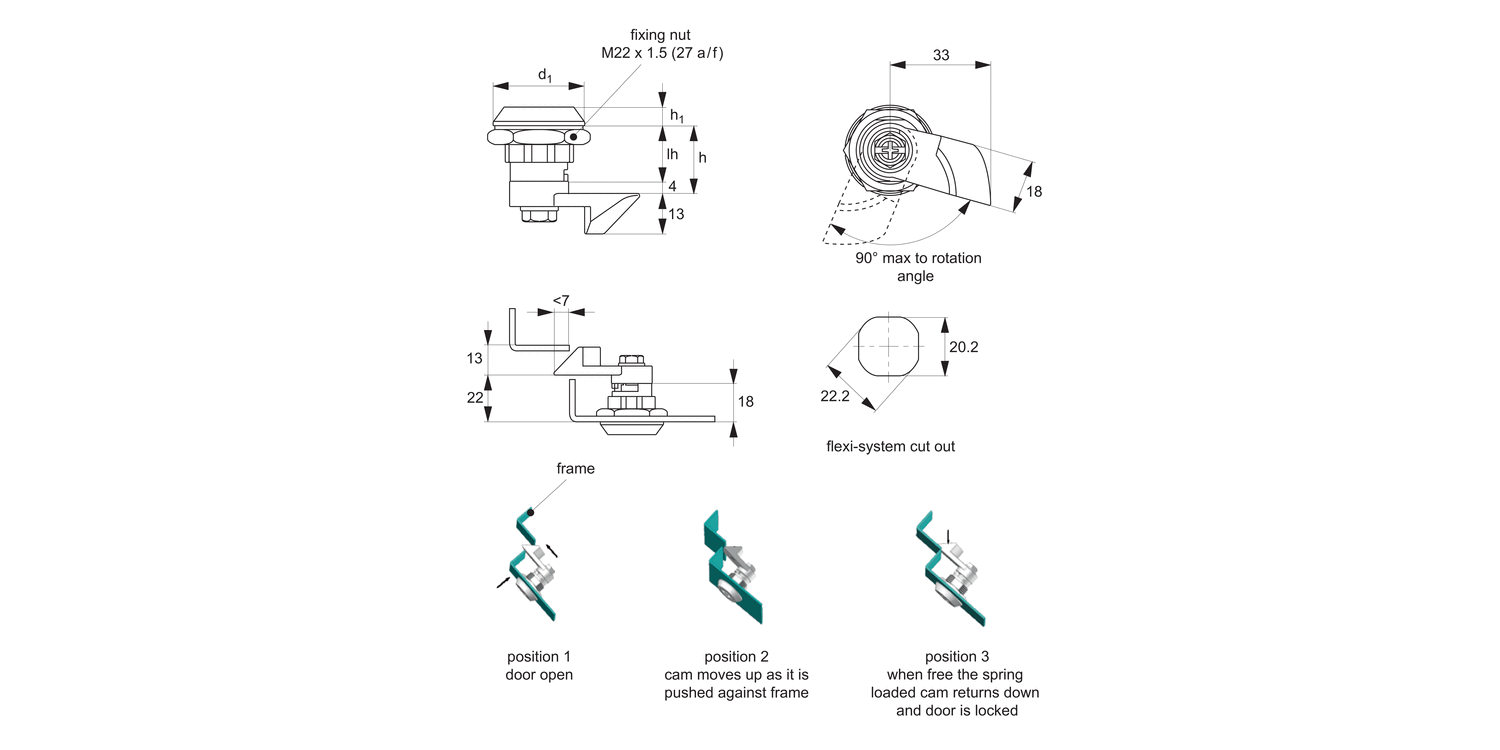

Spring loaded cam provides depress-to-lock action. See application drawings for operation. Quarter turn opening or closing. Right hand type for panel with hinges on right side, left hand type for panels with hinges on left side. Grip length of cam fixed at 22mm (lh + 4mm).
Important Notes
Sold subject to pack quantity.
Product Datasheets
Application images
