Rotary Dampers
bi-directional

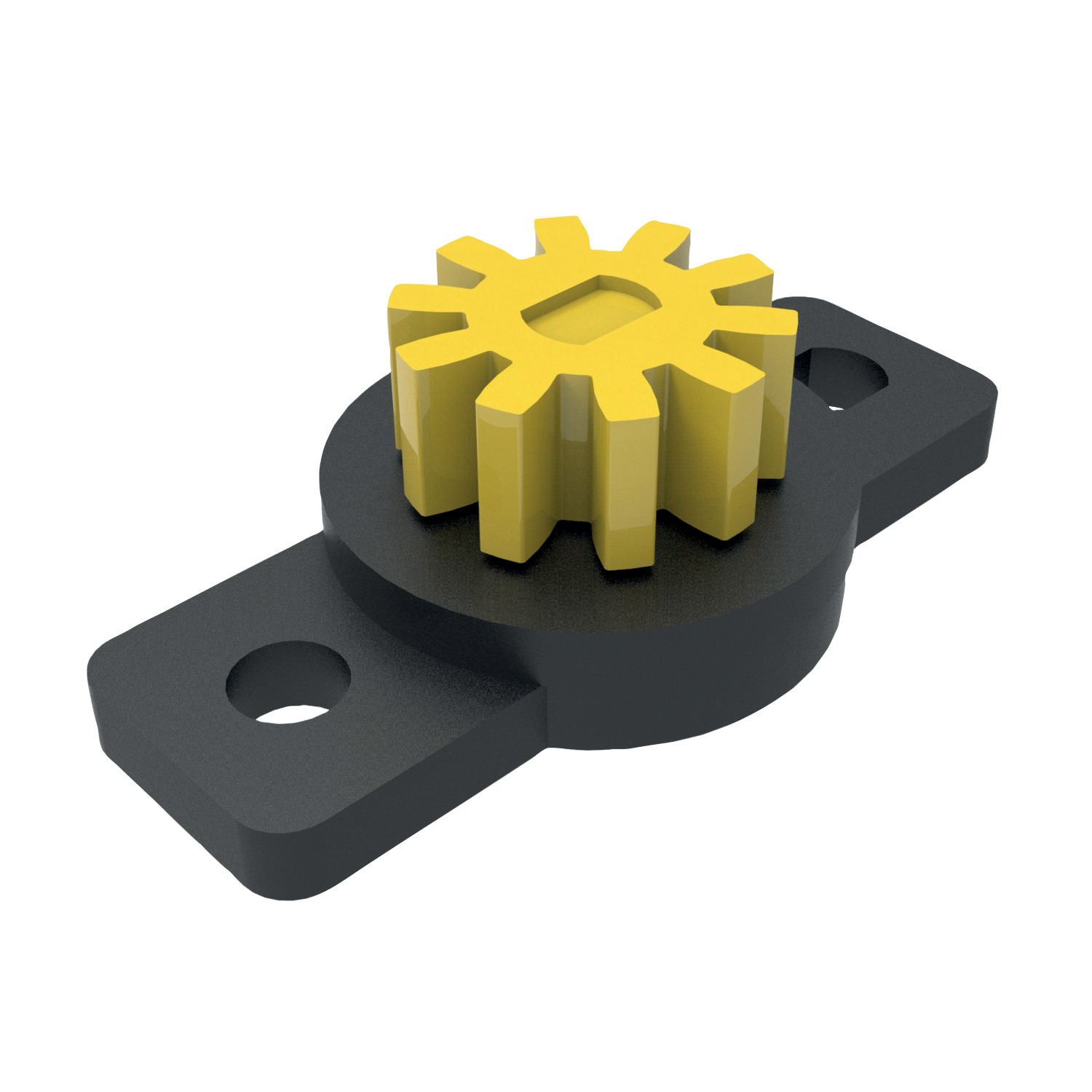

Q3026 Rotary Dampers
bi-directional - continuous rotation - up to 50gf.cm, material: Thermoplastic and polycetal
Order No.
Q3026.AC0050
Type
With gear
Torque
gf·cm
15-50
No. of teeth
11
Gear module
0.6
Pitch circle diameter P.C.D
6
Pressure angle
20°
l1
19
d1
10
d2
7.2
d3
2.1
d4
2.5
h1
5.9
h2
2.7
h3
1.5
l2
14
w1
6
w2
2.1
£ 2.61 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 2.61 | 0% |
| 10-19 | £ 2.35 | 10% |
| 20-49 | £ 2.22 | 15% |
| 50-99 | £ 2.09 | 20% |
| 100+ | £ 1.96 | 25% |
Technical & Application
Material
thermoplastic (ABS), Polycetal (POM).
Tips
Create smooth movement and dampening in applications such as loading trays, arm rests and storage compartments. Subject to minimum order quantity.
