Rotary Dampers
bi-directional
Q3032 Rotary Dampers
bi-directional - continuous rotation - up to 100gf.cm - snap-in, material: Polycetal and polycarbonate
Order No.
Q3032.AC0100
Type
With gear
Torque
gf·cm
50-100
No. of teeth
11
Gear module
0.8
Pitch circle diameter P.C.D
8.8
Pressure angle
20°

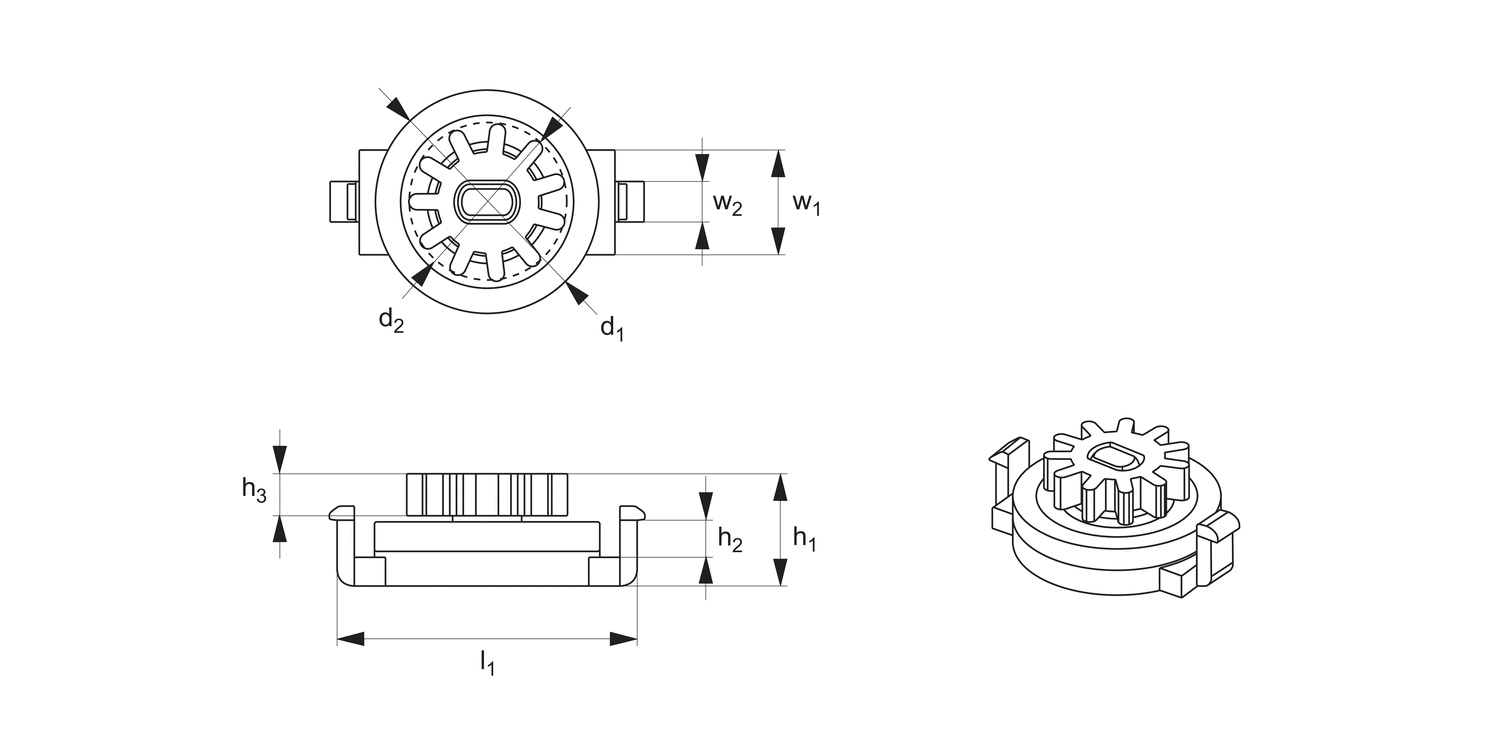

l1
19.65
d1
15
d2
10.4
h1
7.55
h2
2.52
h3
2.9
w1
7
w2
2.9
£ 2.95 per unit (click for quantity discounts)
Ready to despatch 109
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 2.95 | 0% |
| 10-19 | £ 2.66 | 10% |
| 20-49 | £ 2.51 | 15% |
| 50-99 | £ 2.36 | 20% |
| 100+ | £ 2.21 | 25% |
Technical & Application
Material
Polycetal (POM), polycarbonate (PC)
Tips
Create smooth movement and dampening in applications such as loading trays, arm rests and storage compartments. Subject to minimum order quantity.
