Glass Door Hinges
inset type - s/s

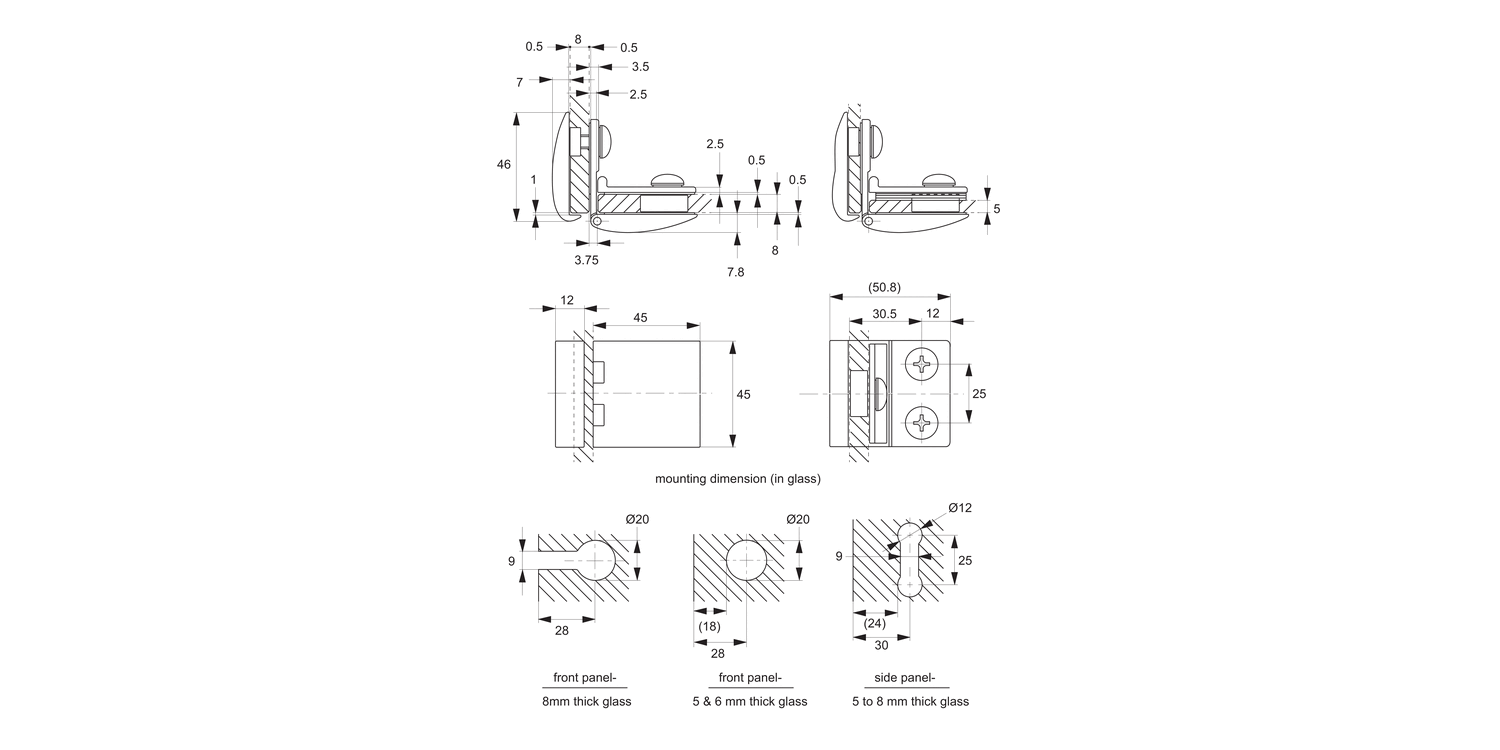

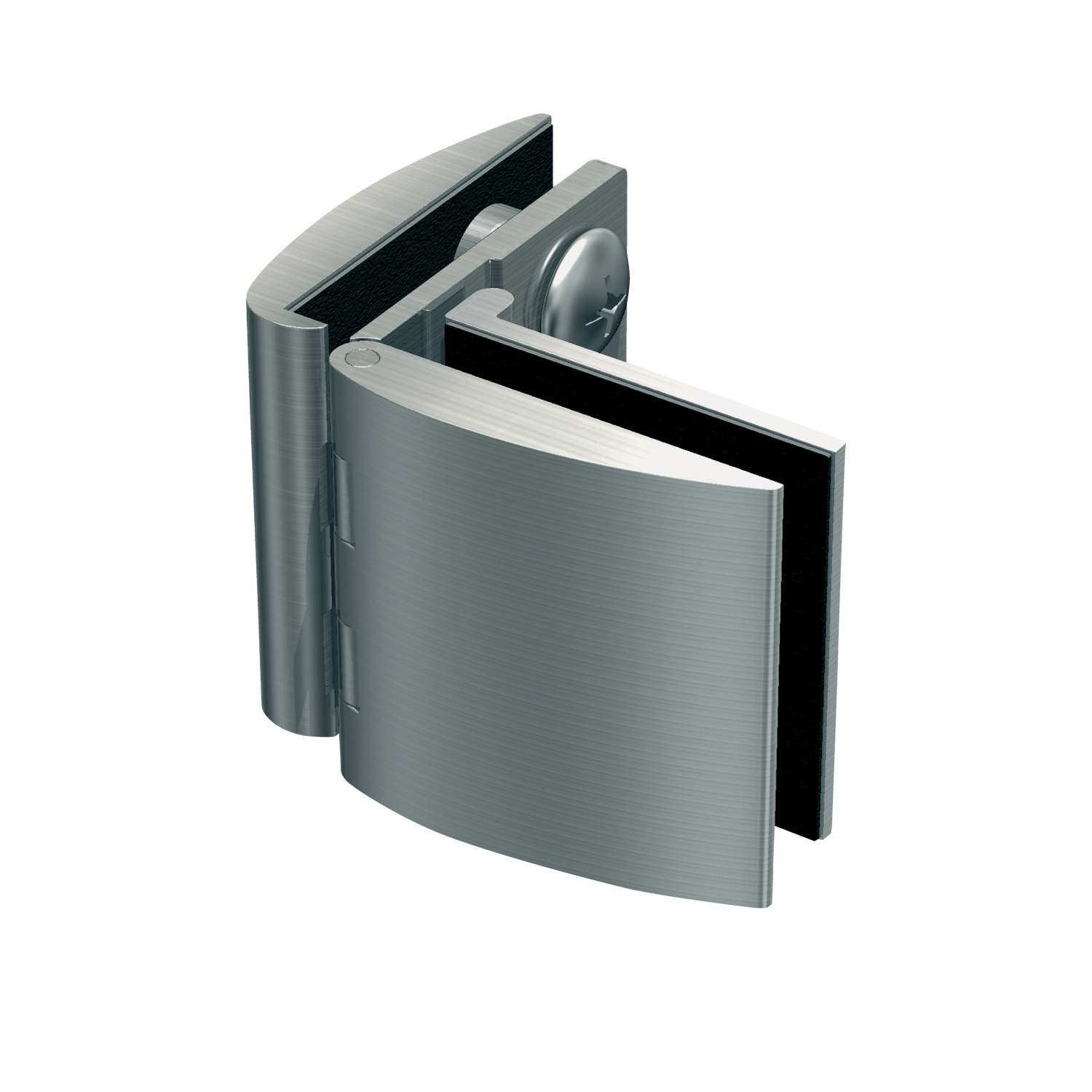

T2200 Glass Door Hinges - Glass to Glass Type
material: Brass
Order No.
T2200.AC0030
Glass thickness
mm
5 to 8
Finish
Gold
Load capacity 2 hinges
kg
15
£ 143.16 per unit (click for quantity discounts)
Ready to despatch 3
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 143.16 | 0% |
| 5-9 | £ 136.00 | 5% |
| 10-19 | £ 128.84 | 10% |
| 20-49 | £ 121.69 | 15% |
| 50+ | £ 107.37 | 25% |
Technical & Application
Material
Hinge body: brass, in nickel, chrome or gold finish.
Glass adj. roller: polyamide, black.
Bushes & spacers: rubber, black.
Technical Notes
For door thickness 5 to 8mm. Horizontally adjustable by 2,5mm.
Max. door size-
600w x 700h x 8mm thick
Max. door weight-
15Kg per hinge pair.
Please note, you will need to drill holes in the glass in order to fit these hinges.
Important Notes
Spacers are supplied to accommodate different glass door thicknesses;
5mm glass use 3 spacers
6mm glass use 2 spacers
8mm glass no spacers required.
