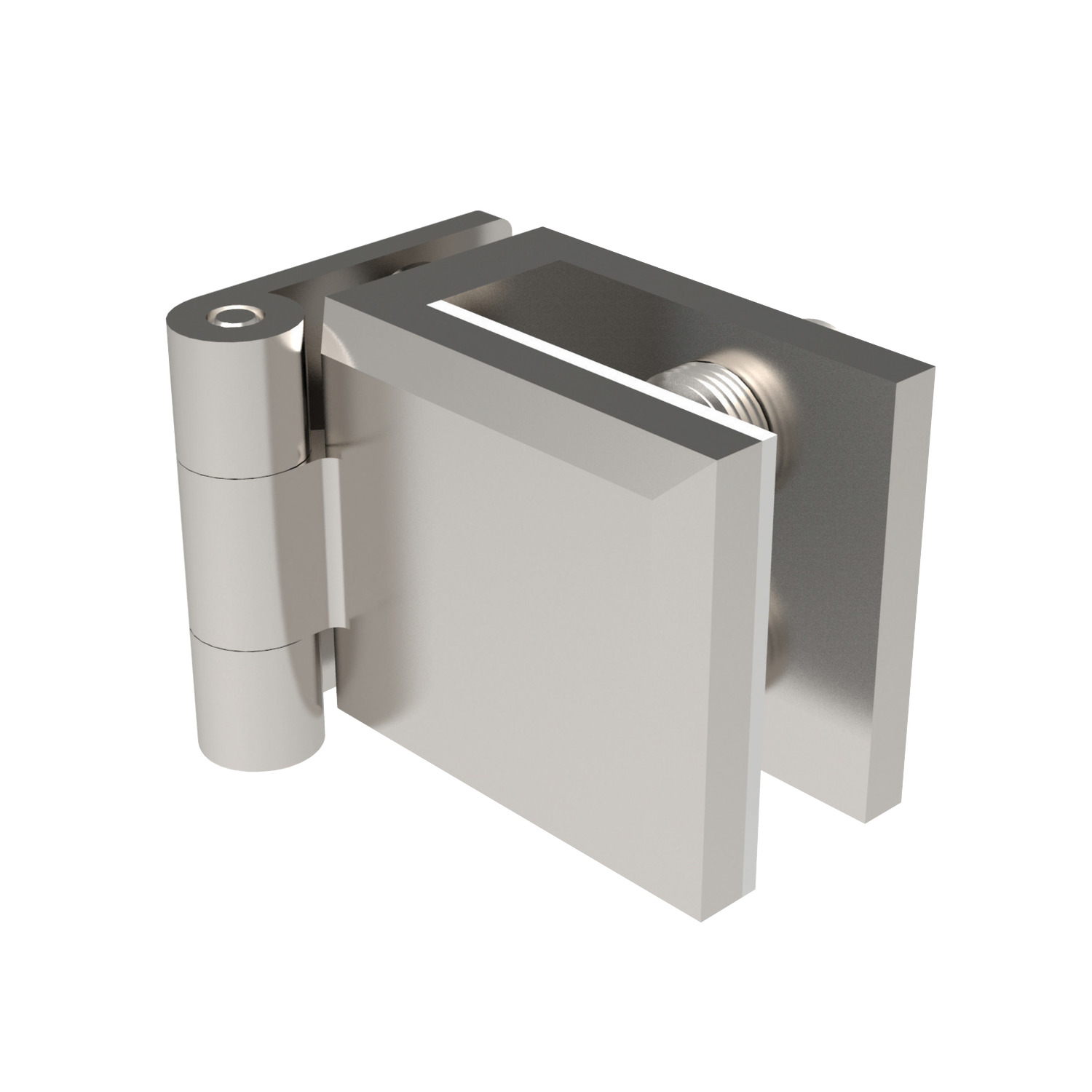

T2280 Glass Door Hinges - Set Screw Mount

Name: T2280.AC0010
Brand: WC
SKU: T2280.AC0010
Price: 97.21 GBP
Availability: OutOfStock

stainless steel, material: Stainless steel

Article properties

Order No.

T2280.AC0010

Glass thickness mm

4 to 8

Finish

Stainless

See full product selection

£ 97.21 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 14 working days from order.
Typical UK delivery charge: £14.37.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 97.21	0%
5-9	£ 92.35	5%
10-19	£ 87.49	10%
20-49	£ 82.63	15%
50+	£ 72.91	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Body: stainless steel, AISI 304, polished

Technical Notes

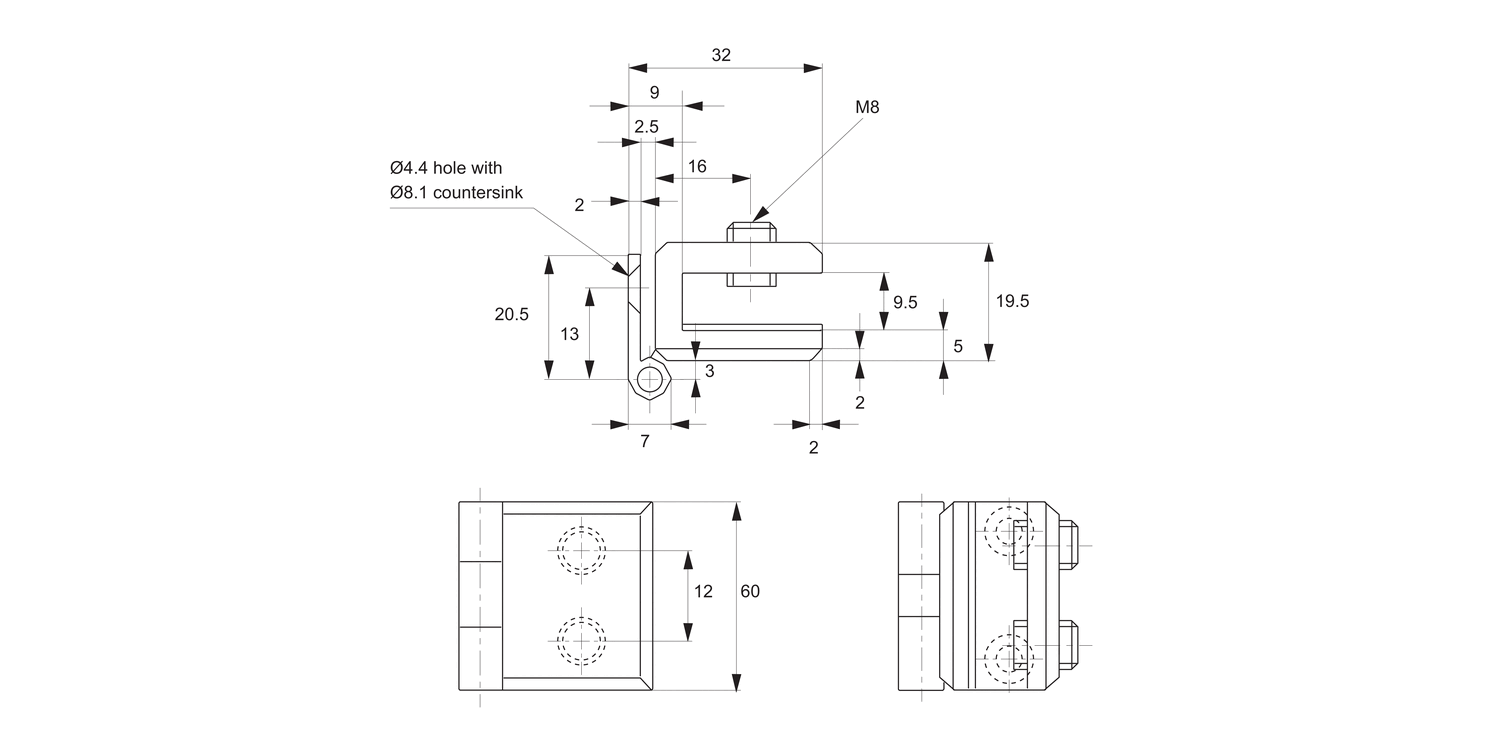

For door thicknesses 4 to 8mm.
Max. door size - 400w x 600h x 8mm thick.

Important Notes

No holes required in glass for installation. Three grub screws hold and clamp glass in place.

Product Datasheets

T2280 Glass Door Hinges - Set Screw Mount7 July 2026, 13:59 / 613.25 kB

Glass Door Hinges7 July 2026, 13:56 / 867.10 kB

Hinges7 July 2026, 13:56 / 7.89 MB

Hinges & Dampers7 July 2026, 13:56 / 10.40 MB

Access Components7 July 2026, 13:55 / 32.14 MB

CAD files

T2280 Acis17 April 2024, 10:24 / 52.34 kB

T2280 IGES17 April 2024, 10:24 / 133.68 kB

T2280 Parasolid17 April 2024, 10:24 / 42.16 kB

T2280 ProE17 April 2024, 10:24 / 113.82 kB

T2280 SolidWorks17 April 2024, 10:24 / 201.07 kB

T2280 Step17 April 2024, 10:24 / 62.96 kB
