Pin Face Spanners
adjustable

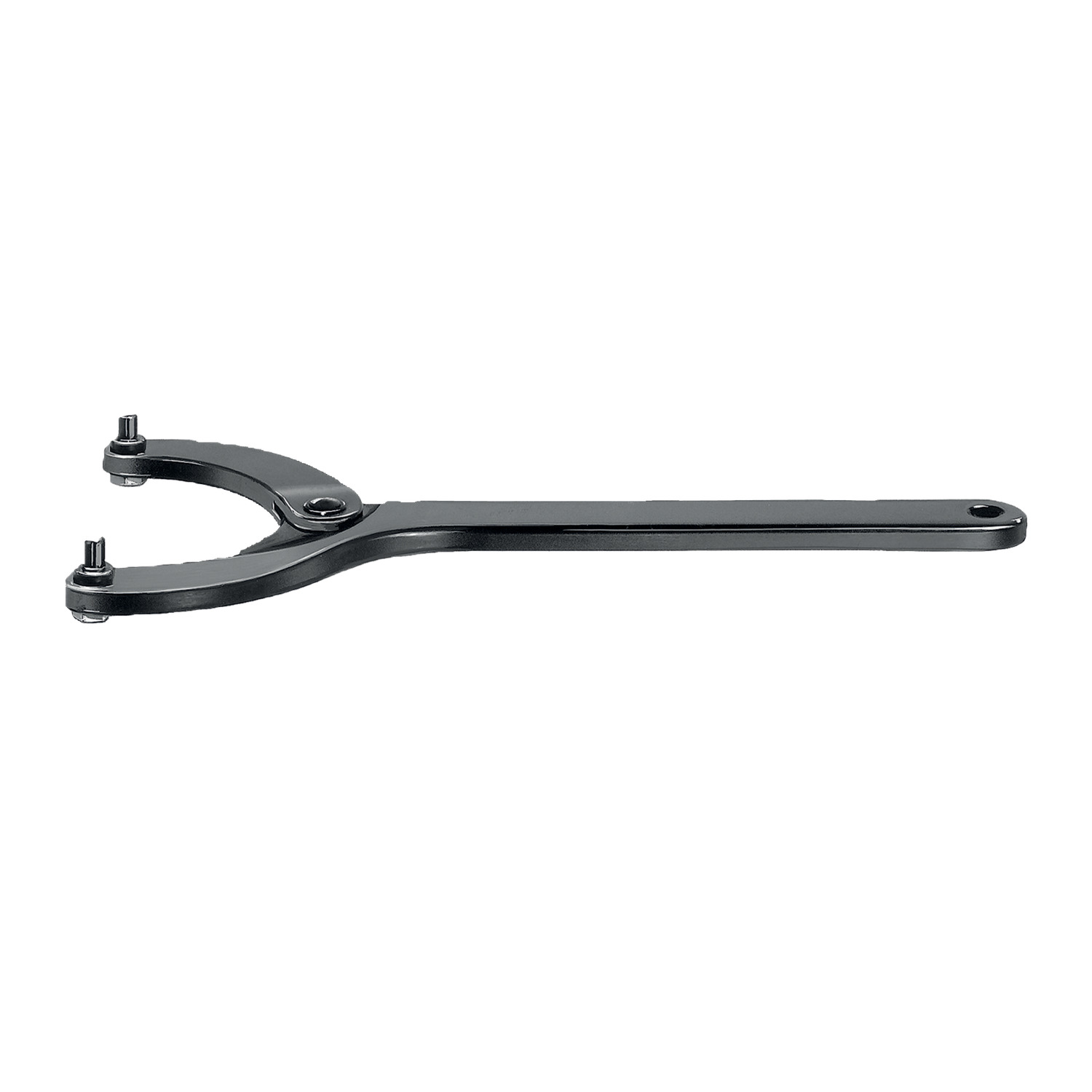

95350 Face Spanner - with Pins
adjustable, material: Steel

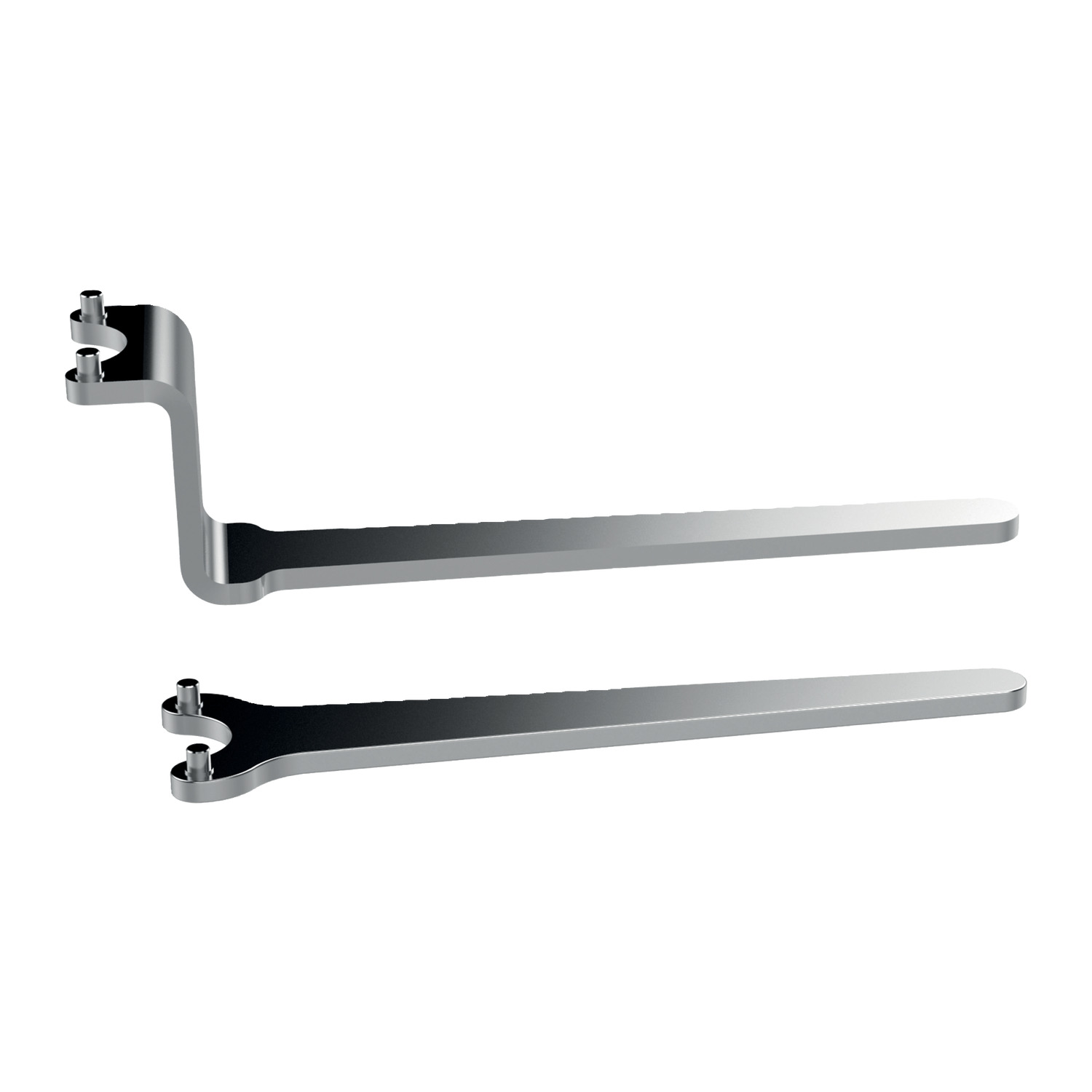

Alternative products you may wish to consider

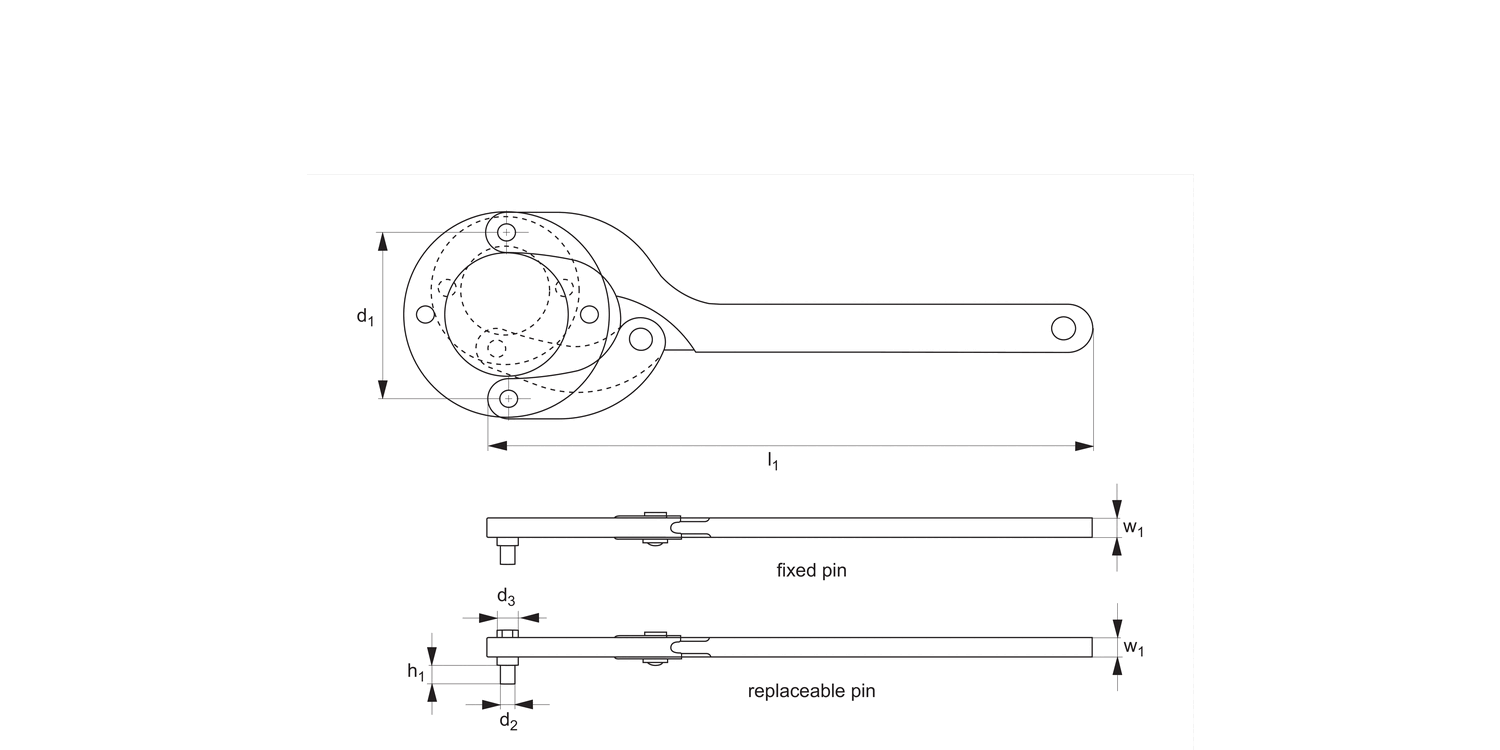

Type
Fixed Pin
d1 for nut Ø
18-40
d2
-0.1|tol. h12
3
d3
-
h1
4.0
l1
150
w1
5
Weight
g
100
£ 40.81 per unit (click for quantity discounts)
Type
Fixed Pin
d1 for nut Ø
18-40
d2
-0.1|tol. h12
4
d3
-
h1
5.0
l1
150
w1
5
Weight
g
100
£ 39.05 per unit (click for quantity discounts)
Type
Fixed Pin
d1 for nut Ø
40-80
d2
-0.1|tol. h12
4
d3
-
h1
5.0
l1
220
w1
6
Weight
g
265
£ 50.42 per unit (click for quantity discounts)
Type
Fixed Pin
d1 for nut Ø
40-80
d2
-0.1|tol. h12
5
d3
-
h1
6.0
l1
220
w1
6
Weight
g
265
£ 48.25 per unit (click for quantity discounts)
Type
Fixed Pin
d1 for nut Ø
40-80
d2
-0.1|tol. h12
6
d3
-
h1
7.0
l1
220
w1
6
Weight
g
265
£ 48.25 per unit (click for quantity discounts)
Type
Fixed Pin
d1 for nut Ø
80-125
d2
-0.1|tol. h12
6
d3
-
h1
7.0
l1
295
w1
8
Weight
g
650
£ 81.29 per unit (click for quantity discounts)
Type
Fixed Pin
d1 for nut Ø
80-125
d2
-0.1|tol. h12
7
d3
-
h1
7.5
l1
295
w1
8
Weight
g
650
£ 81.29 per unit (click for quantity discounts)
Type
Fixed Pin
d1 for nut Ø
80-125
d2
-0.1|tol. h12
8
d3
-
h1
8.0
l1
295
w1
8
Weight
g
650
£ 77.79 per unit (click for quantity discounts)
Type
Fixed Pin
d1 for nut Ø
125-200
d2
-0.1|tol. h12
8
d3
-
h1
8.0
l1
405
w1
10
Weight
g
1590
£ 162.20 per unit (click for quantity discounts)
Type
Fixed Pin
d1 for nut Ø
125-200
d2
-0.1|tol. h12
10
d3
-
h1
10.0
l1
405
w1
10
Weight
g
1590
£ 156.45 per unit (click for quantity discounts)
Type
Replaceable Pin
d1 for nut Ø
18-40
d2
-0.1|tol. h12
3
d3
M 4
h1
4.0
l1
150
w1
5
Weight
g
100
£ 54.27 per unit (click for quantity discounts)
Type
Replaceable Pin
d1 for nut Ø
18-40
d2
-0.1|tol. h12
4
d3
M 4
h1
5.0
l1
150
w1
5
Weight
g
100
£ 51.93 per unit (click for quantity discounts)
Type
Replaceable Pin
d1 for nut Ø
40-80
d2
-0.1|tol. h12
4
d3
M 6
h1
5.0
l1
220
w1
6
Weight
g
265
£ 66.75 per unit (click for quantity discounts)
Type
Replaceable Pin
d1 for nut Ø
40-80
d2
-0.1|tol. h12
5
d3
M 6
h1
6.0
l1
220
w1
6
Weight
g
265
£ 66.75 per unit (click for quantity discounts)
Type
Replaceable Pin
d1 for nut Ø
40-80
d2
-0.1|tol. h12
6
d3
M 6
h1
7.0
l1
220
w1
6
Weight
g
265
£ 69.75 per unit (click for quantity discounts)
Type
Replaceable Pin
d1 for nut Ø
80-125
d2
-0.1|tol. h12
6
d3
M 6
h1
7.0
l1
295
w1
8
Weight
g
650
£ 100.62 per unit (click for quantity discounts)
Type
Replaceable Pin
d1 for nut Ø
80-125
d2
-0.1|tol. h12
7
d3
M 6
h1
7.5
l1
295
w1
8
Weight
g
650
£ 96.29 per unit (click for quantity discounts)
Type
Replaceable Pin
d1 for nut Ø
80-125
d2
-0.1|tol. h12
8
d3
M 6
h1
8.0
l1
295
w1
8
Weight
g
650
£ 96.29 per unit (click for quantity discounts)
Type
Replaceable Pin
d1 for nut Ø
125-200
d2
-0.1|tol. h12
8
d3
M 8
h1
8.0
l1
405
w1
10
Weight
g
1590
£ 170.49 per unit (click for quantity discounts)
Type
Replaceable Pin
d1 for nut Ø
125-200
d2
-0.1|tol. h12
10
d3
M 8
h1
10.0
l1
405
w1
10
Weight
g
1590
£ 178.16 per unit (click for quantity discounts)
Type
d1 for nut Ø
d2
-0.1|tol. h12
d3
h1
l1
w1
Weight
g
| Price & Availability | Article | Type | d1 for nut Ø | d2 -0.1|tol. h12 | d3 | h1 | l1 | w1 | Weight g | |||||||||||||||
| 95350.W0041 | Fixed Pin | 18-40 | 3 | - | 4.0 | 150 | 5 | 100 | ||||||||||||||||
£ 40.81 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Fixed Pin d1 for nut Ø 18-40 d2
-0.1|tol. h12 3 d3 - h1 4.0 l1 150 w1 5 Weight
g 100 | ||||||||||||||||||||||||
| 95350.W0042 | Fixed Pin | 18-40 | 4 | - | 5.0 | 150 | 5 | 100 | ||||||||||||||||
£ 39.05 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Fixed Pin d1 for nut Ø 18-40 d2
-0.1|tol. h12 4 d3 - h1 5.0 l1 150 w1 5 Weight
g 100 | ||||||||||||||||||||||||
| 95350.W0081 | Fixed Pin | 40-80 | 4 | - | 5.0 | 220 | 6 | 265 | ||||||||||||||||
£ 50.42 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Fixed Pin d1 for nut Ø 40-80 d2
-0.1|tol. h12 4 d3 - h1 5.0 l1 220 w1 6 Weight
g 265 | ||||||||||||||||||||||||
| 95350.W0082 | Fixed Pin | 40-80 | 5 | - | 6.0 | 220 | 6 | 265 | ||||||||||||||||
£ 48.25 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Fixed Pin d1 for nut Ø 40-80 d2
-0.1|tol. h12 5 d3 - h1 6.0 l1 220 w1 6 Weight
g 265 | ||||||||||||||||||||||||
| 95350.W0083 | Fixed Pin | 40-80 | 6 | - | 7.0 | 220 | 6 | 265 | ||||||||||||||||
£ 48.25 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Fixed Pin d1 for nut Ø 40-80 d2
-0.1|tol. h12 6 d3 - h1 7.0 l1 220 w1 6 Weight
g 265 | ||||||||||||||||||||||||
| 95350.W0125 | Fixed Pin | 80-125 | 6 | - | 7.0 | 295 | 8 | 650 | ||||||||||||||||
£ 81.29 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Fixed Pin d1 for nut Ø 80-125 d2
-0.1|tol. h12 6 d3 - h1 7.0 l1 295 w1 8 Weight
g 650 | ||||||||||||||||||||||||
| 95350.W0126 | Fixed Pin | 80-125 | 7 | - | 7.5 | 295 | 8 | 650 | ||||||||||||||||
£ 81.29 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Fixed Pin d1 for nut Ø 80-125 d2
-0.1|tol. h12 7 d3 - h1 7.5 l1 295 w1 8 Weight
g 650 | ||||||||||||||||||||||||
| 95350.W0127 | Fixed Pin | 80-125 | 8 | - | 8.0 | 295 | 8 | 650 | ||||||||||||||||
£ 77.79 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Fixed Pin d1 for nut Ø 80-125 d2
-0.1|tol. h12 8 d3 - h1 8.0 l1 295 w1 8 Weight
g 650 | ||||||||||||||||||||||||
| 95350.W0201 | Fixed Pin | 125-200 | 8 | - | 8.0 | 405 | 10 | 1590 | ||||||||||||||||
£ 162.20 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Fixed Pin d1 for nut Ø 125-200 d2
-0.1|tol. h12 8 d3 - h1 8.0 l1 405 w1 10 Weight
g 1590 | ||||||||||||||||||||||||
| 95350.W0202 | Fixed Pin | 125-200 | 10 | - | 10.0 | 405 | 10 | 1590 | ||||||||||||||||
£ 156.45 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Fixed Pin d1 for nut Ø 125-200 d2
-0.1|tol. h12 10 d3 - h1 10.0 l1 405 w1 10 Weight
g 1590 | ||||||||||||||||||||||||
| 95350.W0541 | Replaceable Pin | 18-40 | 3 | M 4 | 4.0 | 150 | 5 | 100 | ||||||||||||||||
£ 54.27 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Replaceable Pin d1 for nut Ø 18-40 d2
-0.1|tol. h12 3 d3 M 4 h1 4.0 l1 150 w1 5 Weight
g 100 | ||||||||||||||||||||||||
| 95350.W0542 | Replaceable Pin | 18-40 | 4 | M 4 | 5.0 | 150 | 5 | 100 | ||||||||||||||||
£ 51.93 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Replaceable Pin d1 for nut Ø 18-40 d2
-0.1|tol. h12 4 d3 M 4 h1 5.0 l1 150 w1 5 Weight
g 100 | ||||||||||||||||||||||||
| 95350.W0581 | Replaceable Pin | 40-80 | 4 | M 6 | 5.0 | 220 | 6 | 265 | ||||||||||||||||
£ 66.75 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Replaceable Pin d1 for nut Ø 40-80 d2
-0.1|tol. h12 4 d3 M 6 h1 5.0 l1 220 w1 6 Weight
g 265 | ||||||||||||||||||||||||
| 95350.W0582 | Replaceable Pin | 40-80 | 5 | M 6 | 6.0 | 220 | 6 | 265 | ||||||||||||||||
£ 66.75 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Replaceable Pin d1 for nut Ø 40-80 d2
-0.1|tol. h12 5 d3 M 6 h1 6.0 l1 220 w1 6 Weight
g 265 | ||||||||||||||||||||||||
| 95350.W0583 | Replaceable Pin | 40-80 | 6 | M 6 | 7.0 | 220 | 6 | 265 | ||||||||||||||||
£ 69.75 per unit (click for quantity discounts) Ready to despatch 8 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Replaceable Pin d1 for nut Ø 40-80 d2
-0.1|tol. h12 6 d3 M 6 h1 7.0 l1 220 w1 6 Weight
g 265 | ||||||||||||||||||||||||
| 95350.W0625 | Replaceable Pin | 80-125 | 6 | M 6 | 7.0 | 295 | 8 | 650 | ||||||||||||||||
£ 100.62 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Replaceable Pin d1 for nut Ø 80-125 d2
-0.1|tol. h12 6 d3 M 6 h1 7.0 l1 295 w1 8 Weight
g 650 | ||||||||||||||||||||||||
| 95350.W0626 | Replaceable Pin | 80-125 | 7 | M 6 | 7.5 | 295 | 8 | 650 | ||||||||||||||||
£ 96.29 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Replaceable Pin d1 for nut Ø 80-125 d2
-0.1|tol. h12 7 d3 M 6 h1 7.5 l1 295 w1 8 Weight
g 650 | ||||||||||||||||||||||||
| 95350.W0627 | Replaceable Pin | 80-125 | 8 | M 6 | 8.0 | 295 | 8 | 650 | ||||||||||||||||
£ 96.29 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Replaceable Pin d1 for nut Ø 80-125 d2
-0.1|tol. h12 8 d3 M 6 h1 8.0 l1 295 w1 8 Weight
g 650 | ||||||||||||||||||||||||
| 95350.W0701 | Replaceable Pin | 125-200 | 8 | M 8 | 8.0 | 405 | 10 | 1590 | ||||||||||||||||
£ 170.49 per unit (click for quantity discounts) Ready to despatch 16 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Replaceable Pin d1 for nut Ø 125-200 d2
-0.1|tol. h12 8 d3 M 8 h1 8.0 l1 405 w1 10 Weight
g 1590 | ||||||||||||||||||||||||
| 95350.W0702 | Replaceable Pin | 125-200 | 10 | M 8 | 10.0 | 405 | 10 | 1590 | ||||||||||||||||
£ 178.16 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Replaceable Pin d1 for nut Ø 125-200 d2
-0.1|tol. h12 10 d3 M 8 h1 10.0 l1 405 w1 10 Weight
g 1590 | ||||||||||||||||||||||||
Technical & Application
Material
Steel (C35/C45), tempered and blackened.
Technical Notes
Fixed or replaceable pins, fixed pin spot welded.

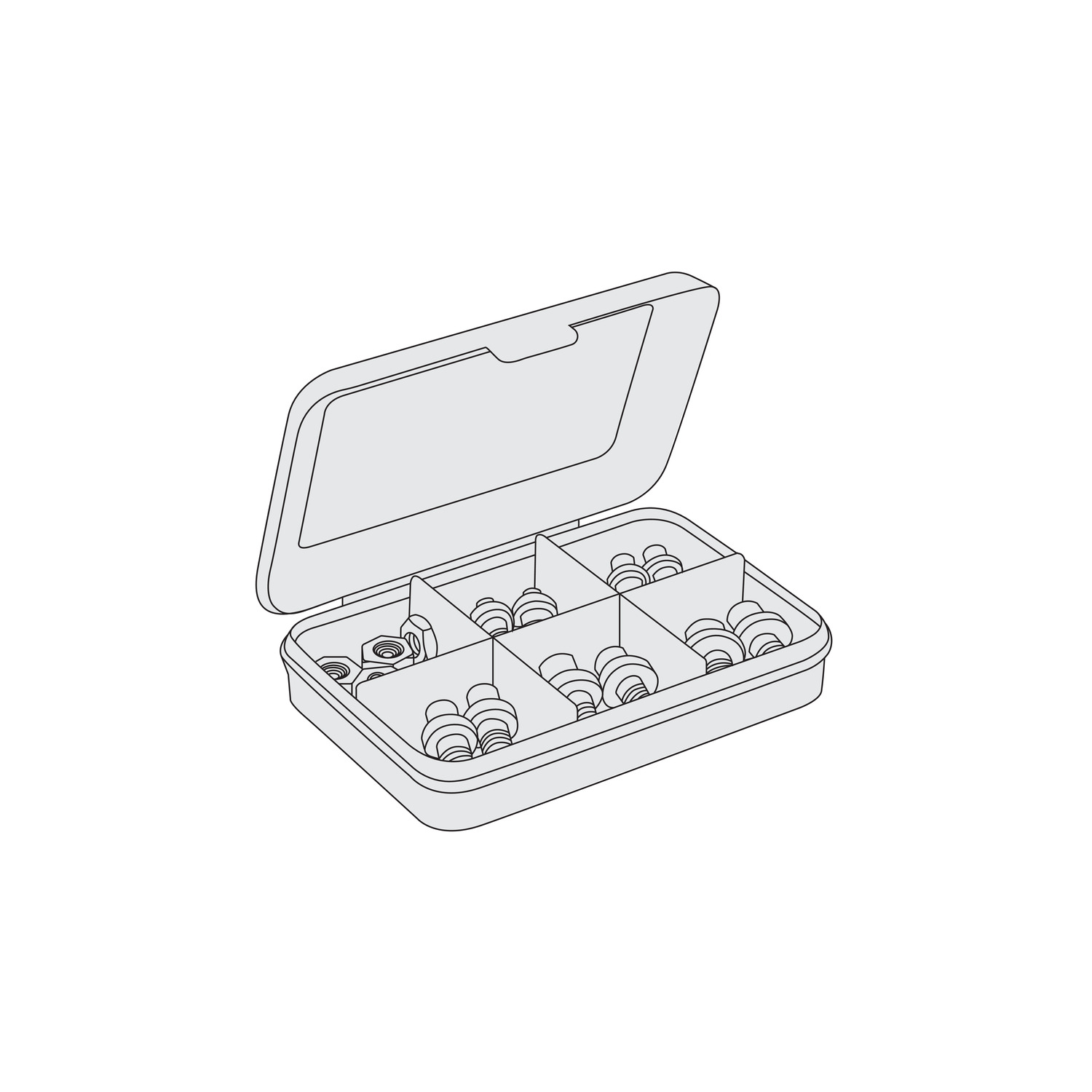

For replacement pins see part no. 95360.
