95340 Face Spanner - with Pins

fixed, material: Steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Pin Face Spanners
adjustable

Adj. Pin Face Spanners
stainless - with welded pins

Adj. Pin Face Spanner - Off set
with welded pins

Face Spanner Set
with replaceable pin

Face Spanners
with pins - fixed

Face spanner
fixed pins

Face Spanner
with fixed pins

Face Spanners
with pins - adjustable

Adjustable Face Spanner
for torque wrench socket

Adjustable Face Spanner
with replaceable pins

Replacement Pins
for face spanners HT0430

Replaceable Pins
for pin face spanners

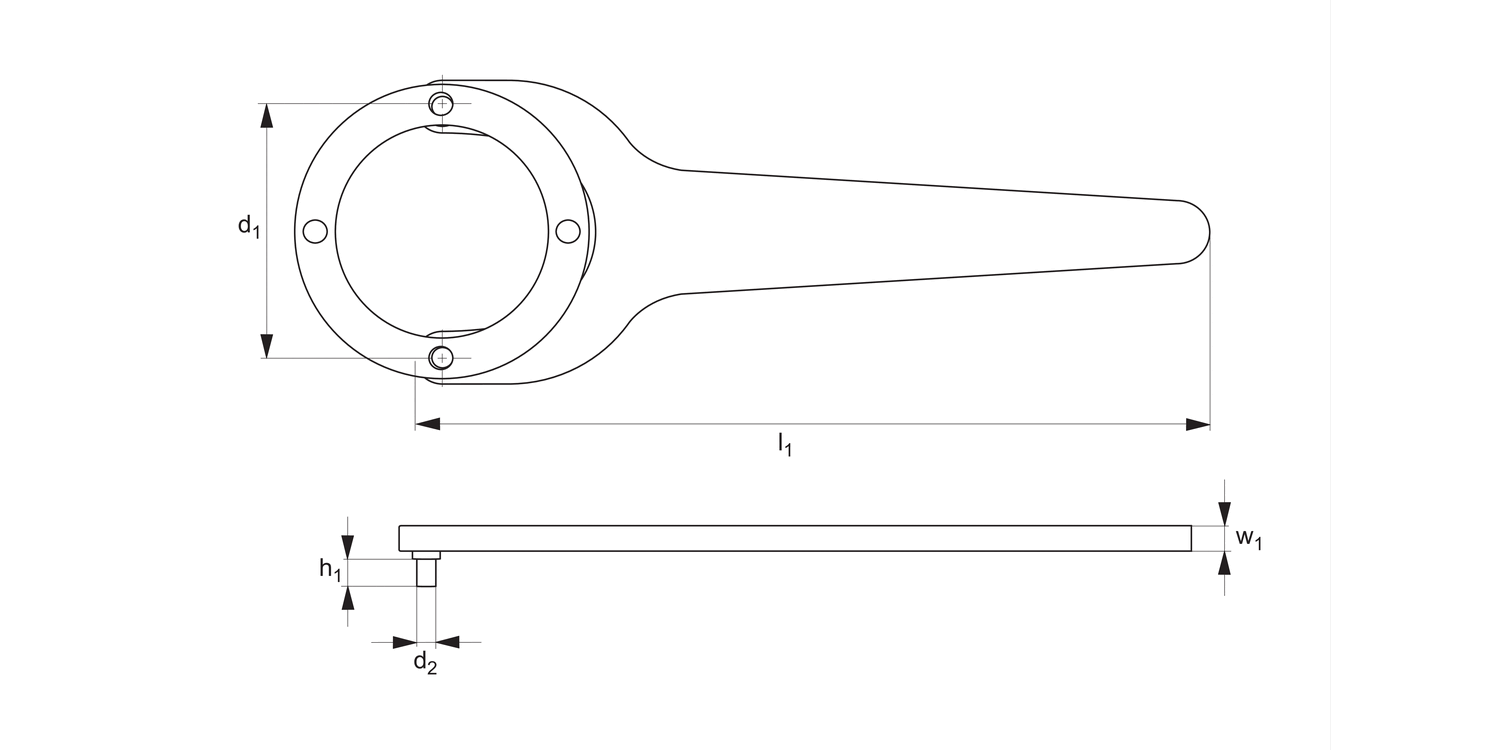

Face Spanners, With Pins - Special steel 13 - 2,5 - 3,0 - 90

95340.W0013

d₁ for nut Ø

13

d₂ -0.1|tol. h12

2.5

h₁

3.0

l₁

90

w₁

3

Weight g

27

£ 11.65 per unit (click for quantity discounts)

Face Spanners, With Pins - Special steel 15 - 3,0 - 4,0 - 90

95340.W0015

d₁ for nut Ø

15

d₂ -0.1|tol. h12

3.0

h₁

3.5

l₁

90

w₁

3

Weight g

27

£ 9.49 per unit (click for quantity discounts)

Face Spanners, With Pins - Special steel 20 - (3,0) - 4,0 - 122

95340.W0020

d₁ for nut Ø

(20)

d₂ -0.1|tol. h12

3.0

h₁

4.0

l₁

122

w₁

4

Weight g

50

£ 9.66 per unit (click for quantity discounts)

Face Spanners, With Pins - Special steel 20 - 4,0 - 5,0 - 122

95340.W0021

d₁ for nut Ø

(20)

d₂ -0.1|tol. h12

4.0

h₁

5.0

l₁

122

w₁

4

Weight g

50

£ 10.16 per unit (click for quantity discounts)

Face Spanners, With Pins - Special steel 25 - 3,0 - 4,0 - 137

95340.W0025

d₁ for nut Ø

25

d₂ -0.1|tol. h12

3.0

h₁

4.0

l₁

137

w₁

4

Weight g

65

£ 12.19 per unit (click for quantity discounts)

Face Spanners, With Pins - Special steel 25 - (4,0) - 5,0 - 137

95340.W0026

d₁ for nut Ø

(25)

d₂ -0.1|tol. h12

4.0

h₁

5.0

l₁

137

w₁

4

Weight g

65

£ 12.34 per unit (click for quantity discounts)

Face Spanners, With Pins - Special steel 30 - 4,0 - 5,0 - 164

95340.W0030

d₁ for nut Ø

30

d₂ -0.1|tol. h12

4.0

h₁

5.0

l₁

164

w₁

4

Weight g

85

£ 12.98 per unit (click for quantity discounts)

Face Spanners, With Pins - Special steel 35 - 5,0 - 6,0 - 180

95340.W0035

d₁ for nut Ø

35

d₂ -0.1|tol. h12

5.0

h₁

6.0

l₁

180

w₁

5

Weight g

120

£ 14.93 per unit (click for quantity discounts)

Face Spanners, With Pins - Special steel 35 - (4,0) - 5,0 - 180

95340.W0036

d₁ for nut Ø

(35)

d₂ -0.1|tol. h12

4.0

h₁

5.0

l₁

180

w₁

5

Weight g

120

£ 13.89 per unit (click for quantity discounts)

Face Spanners, With Pins - Special steel 40 - 4,0 - 5,0 - 167

95340.W0040

d₁ for nut Ø

40

d₂ -0.1|tol. h12

4.0

h₁

5.0

l₁

167

w₁

5

Weight g

120

£ 15.84 per unit (click for quantity discounts)

Face Spanners, With Pins - Special steel 45 - 4,0 - 5,0 - 187

95340.W0045

d₁ for nut Ø

45

d₂ -0.1|tol. h12

4.0

h₁

5.0

l₁

187

w₁

5

Weight g

145

£ 16.71 per unit (click for quantity discounts)

Face Spanners, With Pins - Special steel 50 - 5,0 - 6,0 - 198

95340.W0050

d₁ for nut Ø

50

d₂ -0.1|tol. h12

5.0

h₁

6.0

l₁

198

w₁

5

Weight g

175

£ 17.41 per unit (click for quantity discounts)

Face Spanners, With Pins - Special steel 60 - 5,0 - 6,0 - 213

95340.W0060

d₁ for nut Ø

60

d₂ -0.1|tol. h12

5.0

h₁

6.0

l₁

213

w₁

6

Weight g

220

£ 23.78 per unit (click for quantity discounts)

Face Spanners, With Pins - Special steel 75 - 6,0 - 7,0 - 243

95340.W0075

d₁ for nut Ø

75

d₂ -0.1|tol. h12

6.0

h₁

7.0

l₁

243

w₁

6

Weight g

330

£ 30.43 per unit (click for quantity discounts)

Face Spanners, With Pins - Special steel 90 - 7,0 - 7,5 - 270

95340.W0090

d₁ for nut Ø

90

d₂ -0.1|tol. h12

7.0

h₁

7.5

l₁

270

w₁

6

Weight g

410

£ 43.07 per unit (click for quantity discounts)

Face Spanners, With Pins - Special steel 13 - 2,5 - 3,0 - 90

95340.W0013

d₁ for nut Ø

13

d₂ -0.1|tol. h12

2.5

h₁

3.0

l₁

90

w₁

3

Weight g

27

£ 11.65 per unit (click for quantity discounts)

Face Spanners, With Pins - Special steel 15 - 3,0 - 4,0 - 90

95340.W0015

d₁ for nut Ø

15

d₂ -0.1|tol. h12

3.0

h₁

3.5

l₁

90

w₁

3

Weight g

27

£ 9.49 per unit (click for quantity discounts)

Face Spanners, With Pins - Special steel 20 - (3,0) - 4,0 - 122

95340.W0020

d₁ for nut Ø

(20)

d₂ -0.1|tol. h12

3.0

h₁

4.0

l₁

122

w₁

4

Weight g

50

£ 9.66 per unit (click for quantity discounts)

Face Spanners, With Pins - Special steel 20 - 4,0 - 5,0 - 122

95340.W0021

d₁ for nut Ø

(20)

d₂ -0.1|tol. h12

4.0

h₁

5.0

l₁

122

w₁

4

Weight g

50

£ 10.16 per unit (click for quantity discounts)

Face Spanners, With Pins - Special steel 25 - 3,0 - 4,0 - 137

95340.W0025

d₁ for nut Ø

25

d₂ -0.1|tol. h12

3.0

h₁

4.0

l₁

137

w₁

4

Weight g

65

£ 12.19 per unit (click for quantity discounts)

Face Spanners, With Pins - Special steel 25 - (4,0) - 5,0 - 137

95340.W0026

d₁ for nut Ø

(25)

d₂ -0.1|tol. h12

4.0

h₁

5.0

l₁

137

w₁

4

Weight g

65

£ 12.34 per unit (click for quantity discounts)

Face Spanners, With Pins - Special steel 30 - 4,0 - 5,0 - 164

95340.W0030

d₁ for nut Ø

30

d₂ -0.1|tol. h12

4.0

h₁

5.0

l₁

164

w₁

4

Weight g

85

£ 12.98 per unit (click for quantity discounts)

Face Spanners, With Pins - Special steel 35 - 5,0 - 6,0 - 180

95340.W0035

d₁ for nut Ø

35

d₂ -0.1|tol. h12

5.0

h₁

6.0

l₁

180

w₁

5

Weight g

120

£ 14.93 per unit (click for quantity discounts)

Face Spanners, With Pins - Special steel 35 - (4,0) - 5,0 - 180

95340.W0036

d₁ for nut Ø

(35)

d₂ -0.1|tol. h12

4.0

h₁

5.0

l₁

180

w₁

5

Weight g

120

£ 13.89 per unit (click for quantity discounts)

Face Spanners, With Pins - Special steel 40 - 4,0 - 5,0 - 167

95340.W0040

d₁ for nut Ø

40

d₂ -0.1|tol. h12

4.0

h₁

5.0

l₁

167

w₁

5

Weight g

120

£ 15.84 per unit (click for quantity discounts)

Face Spanners, With Pins - Special steel 45 - 4,0 - 5,0 - 187

95340.W0045

d₁ for nut Ø

45

d₂ -0.1|tol. h12

4.0

h₁

5.0

l₁

187

w₁

5

Weight g

145

£ 16.71 per unit (click for quantity discounts)

Face Spanners, With Pins - Special steel 50 - 5,0 - 6,0 - 198

95340.W0050

d₁ for nut Ø

50

d₂ -0.1|tol. h12

5.0

h₁

6.0

l₁

198

w₁

5

Weight g

175

£ 17.41 per unit (click for quantity discounts)

Face Spanners, With Pins - Special steel 60 - 5,0 - 6,0 - 213

95340.W0060

d₁ for nut Ø

60

d₂ -0.1|tol. h12

5.0

h₁

6.0

l₁

213

w₁

6

Weight g

220

£ 23.78 per unit (click for quantity discounts)

Face Spanners, With Pins - Special steel 75 - 6,0 - 7,0 - 243

95340.W0075

d₁ for nut Ø

75

d₂ -0.1|tol. h12

6.0

h₁

7.0

l₁

243

w₁

6

Weight g

330

£ 30.43 per unit (click for quantity discounts)

Face Spanners, With Pins - Special steel 90 - 7,0 - 7,5 - 270

95340.W0090

d₁ for nut Ø

90

d₂ -0.1|tol. h12

7.0

h₁

7.5

l₁

270

w₁

6

Weight g

410

£ 43.07 per unit (click for quantity discounts)



Select all

d₁ for nut Ø

d₂ -0.1|tol. h12

h₁

l₁

w₁

Weight g

Price & Availability	Article	d1 for nut Ø	d2 -0.1|tol. h12	h1	l1	w1	Weight g
	95340.W0013	13	2.5	3.0	90	3	27
£ 11.65 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 11.65 0% 10-19 £ 10.49 10% 20-49 £ 9.90 15% 50-99 £ 9.32 20% 100+ £ 8.74 25% d1 for nut Ø 13 d2 -0.1|tol. h12 2.5 h1 3.0 l1 90 w1 3 Weight g 27 more info »
	95340.W0015	15	3.0	3.5	90	3	27
£ 9.49 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 9.49 0% 10-19 £ 8.54 10% 20-49 £ 8.07 15% 50-99 £ 7.59 20% 100+ £ 7.12 25% d1 for nut Ø 15 d2 -0.1|tol. h12 3.0 h1 3.5 l1 90 w1 3 Weight g 27 more info »
	95340.W0020	(20)	3.0	4.0	122	4	50
£ 9.66 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 9.66 0% 10-19 £ 8.69 10% 20-49 £ 8.21 15% 50-99 £ 7.73 20% 100+ £ 7.25 25% d1 for nut Ø (20) d2 -0.1|tol. h12 3.0 h1 4.0 l1 122 w1 4 Weight g 50 more info »
	95340.W0021	(20)	4.0	5.0	122	4	50
£ 10.16 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 10.16 0% 10-19 £ 9.14 10% 20-49 £ 8.64 15% 50-99 £ 8.13 20% 100+ £ 7.62 25% d1 for nut Ø (20) d2 -0.1|tol. h12 4.0 h1 5.0 l1 122 w1 4 Weight g 50 more info »
	95340.W0025	25	3.0	4.0	137	4	65
£ 12.19 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 12.19 0% 10-19 £ 10.97 10% 20-49 £ 10.36 15% 50-99 £ 9.75 20% 100+ £ 9.14 25% d1 for nut Ø 25 d2 -0.1|tol. h12 3.0 h1 4.0 l1 137 w1 4 Weight g 65 more info »
	95340.W0026	(25)	4.0	5.0	137	4	65
£ 12.34 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 12.34 0% 10-19 £ 11.11 10% 20-49 £ 10.49 15% 50-99 £ 9.87 20% 100+ £ 9.26 25% d1 for nut Ø (25) d2 -0.1|tol. h12 4.0 h1 5.0 l1 137 w1 4 Weight g 65 more info »
	95340.W0030	30	4.0	5.0	164	4	85
£ 12.98 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 12.98 0% 10-19 £ 11.68 10% 20-49 £ 11.03 15% 50-99 £ 10.38 20% 100+ £ 9.74 25% d1 for nut Ø 30 d2 -0.1|tol. h12 4.0 h1 5.0 l1 164 w1 4 Weight g 85 more info »
	95340.W0035	35	5.0	6.0	180	5	120
£ 14.93 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 14.93 0% 10-19 £ 13.44 10% 20-49 £ 12.69 15% 50-99 £ 11.94 20% 100+ £ 11.20 25% d1 for nut Ø 35 d2 -0.1|tol. h12 5.0 h1 6.0 l1 180 w1 5 Weight g 120 more info »
	95340.W0036	(35)	4.0	5.0	180	5	120
£ 13.89 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 13.89 0% 10-19 £ 12.50 10% 20-49 £ 11.81 15% 50-99 £ 11.11 20% 100+ £ 10.42 25% d1 for nut Ø (35) d2 -0.1|tol. h12 4.0 h1 5.0 l1 180 w1 5 Weight g 120 more info »
	95340.W0040	40	4.0	5.0	167	5	120
£ 15.84 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 15.84 0% 10-19 £ 14.26 10% 20-49 £ 13.46 15% 50-99 £ 12.67 20% 100+ £ 11.88 25% d1 for nut Ø 40 d2 -0.1|tol. h12 4.0 h1 5.0 l1 167 w1 5 Weight g 120 more info »
	95340.W0045	45	4.0	5.0	187	5	145
£ 16.71 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 16.71 0% 10-19 £ 15.04 10% 20-49 £ 14.20 15% 50-99 £ 13.37 20% 100+ £ 12.53 25% d1 for nut Ø 45 d2 -0.1|tol. h12 4.0 h1 5.0 l1 187 w1 5 Weight g 145 more info »
	95340.W0050	50	5.0	6.0	198	5	175
£ 17.41 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 17.41 0% 10-19 £ 15.67 10% 20-49 £ 14.80 15% 50-99 £ 13.93 20% 100+ £ 13.06 25% d1 for nut Ø 50 d2 -0.1|tol. h12 5.0 h1 6.0 l1 198 w1 5 Weight g 175 more info »
	95340.W0060	60	5.0	6.0	213	6	220
£ 23.78 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 23.78 0% 10-19 £ 21.40 10% 20-49 £ 20.21 15% 50-99 £ 19.02 20% 100+ £ 17.84 25% d1 for nut Ø 60 d2 -0.1|tol. h12 5.0 h1 6.0 l1 213 w1 6 Weight g 220 more info »
	95340.W0075	75	6.0	7.0	243	6	330
£ 30.43 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 30.43 0% 10-19 £ 27.39 10% 20-49 £ 25.87 15% 50-99 £ 24.34 20% 100+ £ 22.82 25% d1 for nut Ø 75 d2 -0.1|tol. h12 6.0 h1 7.0 l1 243 w1 6 Weight g 330 more info »
	95340.W0090	90	7.0	7.5	270	6	410
£ 43.07 per unit (click for quantity discounts) Ready to despatch 8 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 43.07 0% 10-19 £ 38.76 10% 20-49 £ 36.61 15% 50-99 £ 34.46 20% 100+ £ 32.30 25% d1 for nut Ø 90 d2 -0.1|tol. h12 7.0 h1 7.5 l1 270 w1 6 Weight g 410 more info »
