45000 Supporting Arms
for toggle clamps, material: Steel, zinc plated
Alternative products you may wish to consider

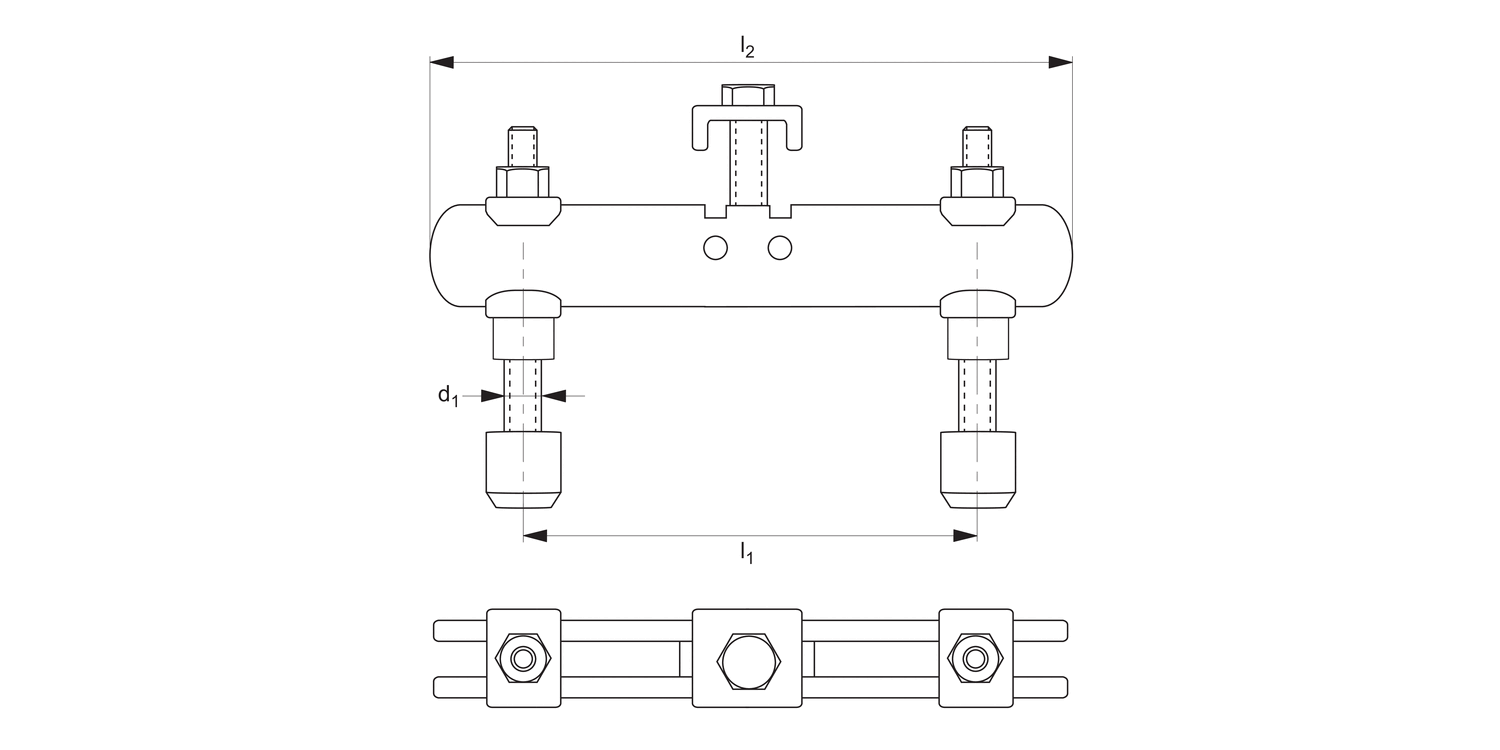

Size
0
Clamping screw d1
M 4x25
Distance between screws l1
min.|max.
18-60
l2
70
Weight
g
40
£ 31.65 per unit (click for quantity discounts)
Size
1
Clamping screw d1
M 5x30
Distance between screws l1
min.|max.
22-72
l2
85
Weight
g
65
£ 32.72 per unit (click for quantity discounts)
Size
2
Clamping screw d1
M 6x35
Distance between screws l1
min.|max.
28-85
l2
100
Weight
g
90
£ 38.12 per unit (click for quantity discounts)
Size
3
Clamping screw d1
M 8x45
Distance between screws l1
min.|max.
34-100
l2
120
Weight
g
200
£ 43.49 per unit (click for quantity discounts)
Size
4
Clamping screw d1
M 8x65
Distance between screws l1
min.|max.
40-125
l2
150
Weight
g
370
£ 49.42 per unit (click for quantity discounts)
Size
5
Clamping screw d1
M 8x65
Distance between screws l1
min.|max.
40-125
l2
150
Weight
g
370
£ 54.30 per unit (click for quantity discounts)
Size
6
Clamping screw d1
M12x80
Distance between screws l1
min.|max.
54-200
l2
240
Weight
g
985
£ 82.81 per unit (click for quantity discounts)
Size
Clamping screw d1
Distance between screws l1
min.|max.
l2
Weight
g
| Price & Availability | Article | Size | Clamping screw d1 | Distance between screws l1 min.|max. | l2 | Weight g | |||||||||||||||
| 45000.W0000 | 0 | M 4x25 | 18-60 | 70 | 40 | ||||||||||||||||
£ 31.65 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 0 Clamping screw d1 M 4x25 Distance between screws l1
min.|max. 18-60 l2 70 Weight
g 40 | |||||||||||||||||||||
| 45000.W0001 | 1 | M 5x30 | 22-72 | 85 | 65 | ||||||||||||||||
£ 32.72 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 1 Clamping screw d1 M 5x30 Distance between screws l1
min.|max. 22-72 l2 85 Weight
g 65 | |||||||||||||||||||||
| 45000.W0002 | 2 | M 6x35 | 28-85 | 100 | 90 | ||||||||||||||||
£ 38.12 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 2 Clamping screw d1 M 6x35 Distance between screws l1
min.|max. 28-85 l2 100 Weight
g 90 | |||||||||||||||||||||
| 45000.W0003 | 3 | M 8x45 | 34-100 | 120 | 200 | ||||||||||||||||
£ 43.49 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 3 Clamping screw d1 M 8x45 Distance between screws l1
min.|max. 34-100 l2 120 Weight
g 200 | |||||||||||||||||||||
| 45000.W0004 | 4 | M 8x65 | 40-125 | 150 | 370 | ||||||||||||||||
£ 49.42 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 4 Clamping screw d1 M 8x65 Distance between screws l1
min.|max. 40-125 l2 150 Weight
g 370 | |||||||||||||||||||||
| 45000.W0005 | 5 | M 8x65 | 40-125 | 150 | 370 | ||||||||||||||||
£ 54.30 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 5 Clamping screw d1 M 8x65 Distance between screws l1
min.|max. 40-125 l2 150 Weight
g 370 | |||||||||||||||||||||
| 45000.W0006 | 6 | M12x80 | 54-200 | 240 | 985 | ||||||||||||||||
£ 82.81 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 6 Clamping screw d1 M12x80 Distance between screws l1
min.|max. 54-200 l2 240 Weight
g 985 | |||||||||||||||||||||
Technical & Application
Material
Steel, zinc plated. Complete with two clamping screws no. 45060 and hexagon screw.
Technical Notes

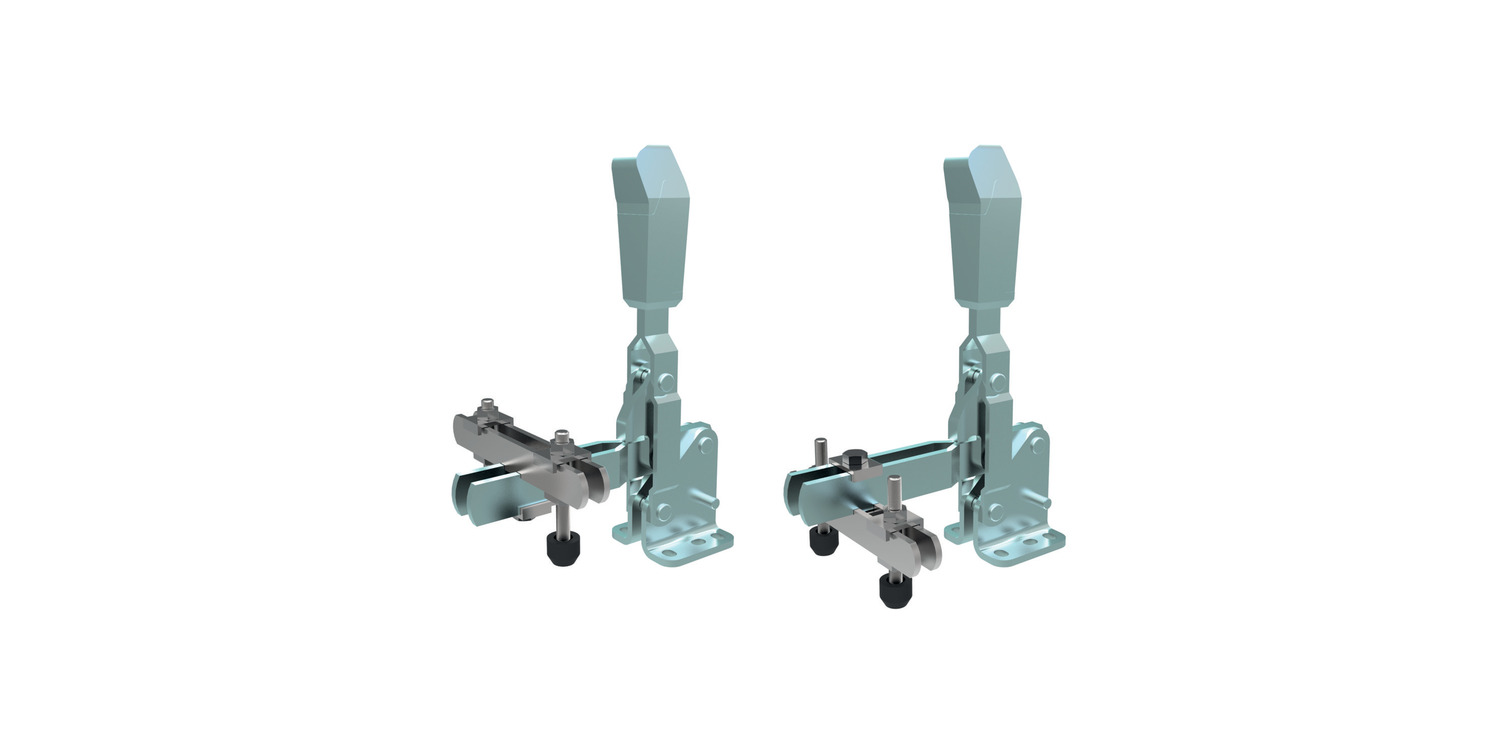

With this supporting arm there is the option of clamping either two small workpieces or one large workpiece at two points. See table below for suitable toggle clamps.
Temperature range -10°C to +80°C.
