45078 Self Aligning Clamping Screws

for solid and closed twin-arm toggle clamps, material: Steel

Download product datasheet

Alternative products you may wish to consider

Position Sensor
manual toggle clamps

Toggle Clamps
for toggle clamps 40000 and 41000

Supporting Arms
for toggle clamps

Proximity Switch
end-position sensing

Clamping arm extension
for manual clamps

Clamping Arm Extension
manual toggle clamps

Clamping Screws for Toggle Clamps
for clamps - bonded pressure pad

Clamping Screws
solid and fixed clamping arms

Clamping Screws
push-pull toggle clamps

Clamping Screw
black

Clamping Screws
push-pull toggle clamps

Clamping Screws
open arm

Clamping Screw
black

Clamping Screws
horizontal acting toggle clamp

Clamping Screws
horizontal acting toggle clamp

Clamping Screws
open arm

Clamping Screws
self-aligning

Clamping Screw
open clamping arms

Clamping Screws
for auto adjust toggle clamps

Spring Loaded Screws
for open ended clamping arms

Rubber Caps
for clamping screws

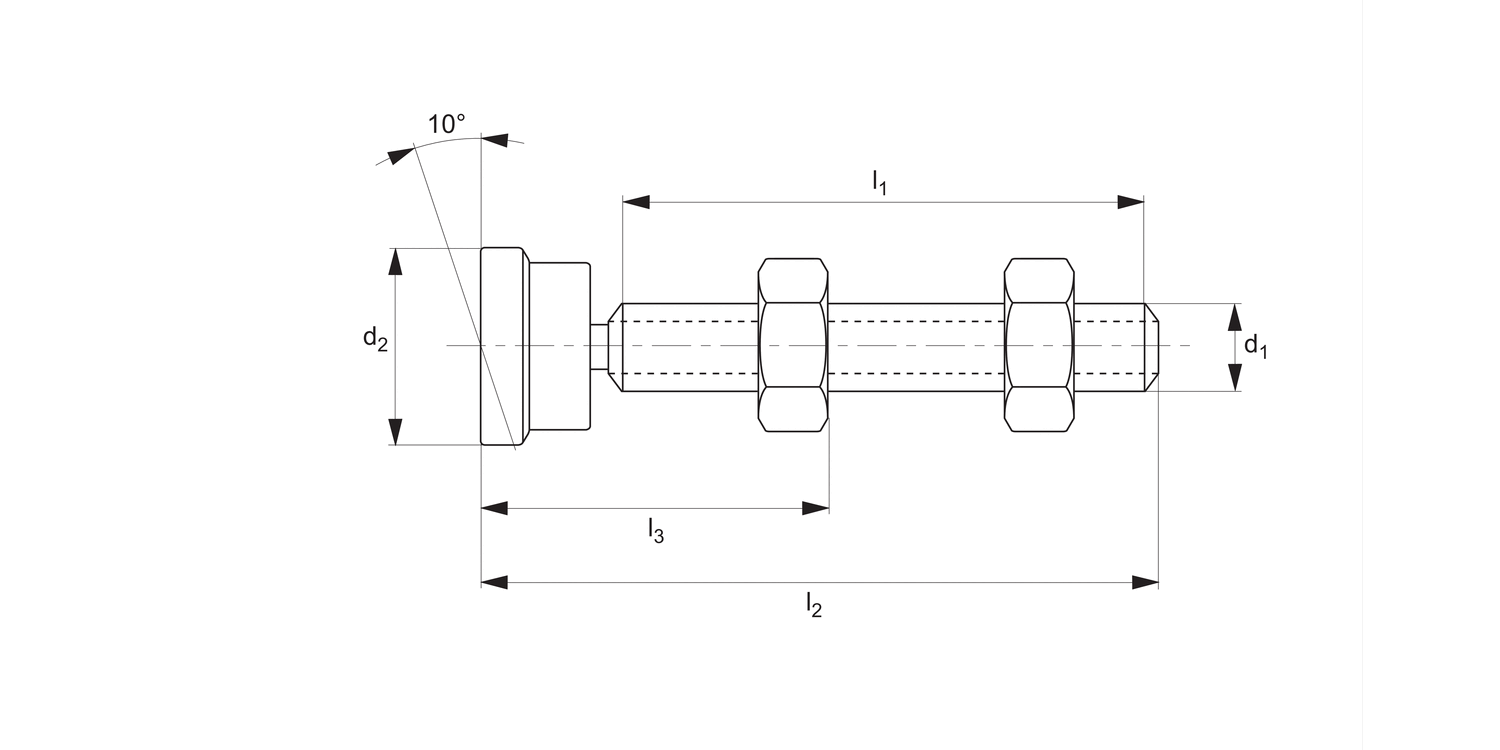

Self Aligning Clamping Screws Heat treated steel - 1 - M 5x35

45078.W0001

Size

1

Screw d₁ x l₁

M 5x35

d₂

12

l₂

37

l₃

8-23

Weight g

9

£ 17.24 per unit (click for quantity discounts)

Self Aligning Clamping Screws Heat treated steel - 4 - M 8x75

45078.W0004

Size

4

Screw d₁ x l₁

M 8x75

d₂

16

l₂

78

l₃

16-52

Weight g

42

£ 19.00 per unit (click for quantity discounts)

Self Aligning Clamping Screws Heat treated steel - 6 - M12x100

45078.W0005

Size

6

Screw d₁ x l₁

M12x100

d₂

25

l₂

105

l₃

30-61

Weight g

138

£ 19.78 per unit (click for quantity discounts)

Self Aligning Clamping Screws Heat treated steel - 1 - M 5x35

45078.W0001

Size

1

Screw d₁ x l₁

M 5x35

d₂

12

l₂

37

l₃

8-23

Weight g

9

£ 17.24 per unit (click for quantity discounts)

Self Aligning Clamping Screws Heat treated steel - 4 - M 8x75

45078.W0004

Size

4

Screw d₁ x l₁

M 8x75

d₂

16

l₂

78

l₃

16-52

Weight g

42

£ 19.00 per unit (click for quantity discounts)

Self Aligning Clamping Screws Heat treated steel - 6 - M12x100

45078.W0005

Size

6

Screw d₁ x l₁

M12x100

d₂

25

l₂

105

l₃

30-61

Weight g

138

£ 19.78 per unit (click for quantity discounts)



Select all

Size

Screw d₁ x l₁

d₂

l₂

l₃

Weight g

Price & Availability	Article	Size	Screw d1 x l1	d2	l2	l3	Weight g
	45078.W0001	1	M 5x35	12	37	8-23	9
£ 17.24 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 17.24 0% 5-9 £ 16.38 5% 10-19 £ 15.52 10% 20+ £ 14.65 15% Size 1 Screw d1 x l1 M 5x35 d2 12 l2 37 l3 8-23 Weight g 9 more info »
	45078.W0004	4	M 8x75	16	78	16-52	42
£ 19.00 per unit (click for quantity discounts) Ready to despatch 9 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 19.00 0% 5-9 £ 18.05 5% 10-19 £ 17.10 10% 20+ £ 16.15 15% Size 4 Screw d1 x l1 M 8x75 d2 16 l2 78 l3 16-52 Weight g 42 more info »
	45078.W0005	6	M12x100	25	105	30-61	138
£ 19.78 per unit (click for quantity discounts) Ready to despatch 43 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 19.78 0% 5-9 £ 18.79 5% 10-19 £ 17.80 10% 20+ £ 16.81 15% Size 6 Screw d1 x l1 M12x100 d2 25 l2 105 l3 30-61 Weight g 138 more info »
