45016 Clamping Screws for Toggle Clamps

bonded pressure pad, material: Steel, zinc plated

Download product datasheet

Alternative products you may wish to consider

Position Sensor
manual toggle clamps

Toggle Clamps
for toggle clamps 40000 and 41000

Supporting Arms
for toggle clamps

Proximity Switch
end-position sensing

Clamping arm extension
for manual clamps

Clamping Arm Extension
manual toggle clamps

Clamping Screws for Toggle Clamps
for clamps - bonded pressure pad

Clamping Screws
solid and fixed clamping arms

Clamping Screws
push-pull toggle clamps

Clamping Screw
black

Clamping Screws
push-pull toggle clamps

Clamping Screws
open arm

Clamping Screw
black

Clamping Screws
horizontal acting toggle clamp

Clamping Screws
horizontal acting toggle clamp

Clamping Screws
open arm

Clamping Screws
self-aligning

Clamping Screw
open clamping arms

Clamping Screws
for auto adjust toggle clamps

Spring Loaded Screws
for open ended clamping arms

Rubber Caps
for clamping screws

Clamping Screws - Steel. M 4x32 - 11 - 8 - 24

45016.W0001

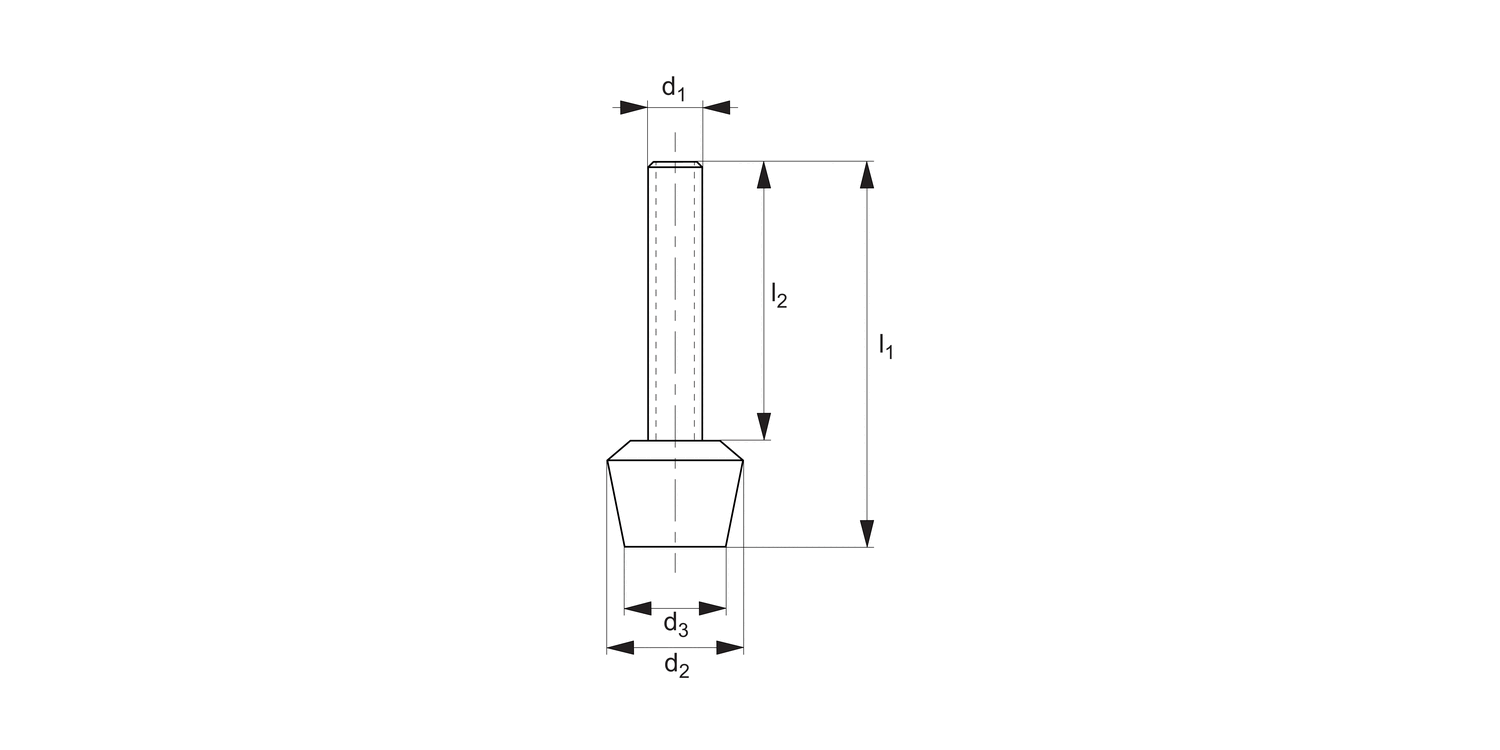

d₁ x l₁

M 4x32

d₂

11

d₃

8

l₂

24

Weight g

4

£ 4.31 per unit (click for quantity discounts)

Clamping Screws - Steel. M 5x38 - 13 - 10 - 28

45016.W0002

d₁ x l₁

M 5x38

d₂

13

d₃

10

l₂

28

Weight g

8

£ 3.91 per unit (click for quantity discounts)

Clamping Screws for Toggle Clamps

45016.W0003

d₁ x l₁

M 6x35

d₂

16

d₃

12

l₂

23

Weight g

11

Clamping Screws - Steel. M 6x45 - 16 - 12 - 33

45016.W0004

d₁ x l₁

M 6x45

d₂

16

d₃

12

l₂

33

Weight g

13

£ 4.75 per unit (click for quantity discounts)

Clamping Screws for Toggle Clamps

45016.W0005

d₁ x l₁

M 6x60

d₂

16

d₃

12

l₂

48

Weight g

16

Clamping Screw & elastic pad M8 x 48

45016.W0006

d₁ x l₁

M 8x48

d₂

21

d₃

16

l₂

32

Weight g

25

£ 5.34 per unit (click for quantity discounts)

Clamping Screws for Toggle Clamps

45016.W0007

d₁ x l₁

M 8x58

d₂

21

d₃

16

l₂

42

Weight g

29

Clamping Screw & elastic pad M8 x 63

45016.W0008

d₁ x l₁

M 8x63

d₂

21

d₃

16

l₂

47

Weight g

31

£ 6.33 per unit (click for quantity discounts)

Clamping Screw & elastic pad M8 x 78

45016.W0009

d₁ x l₁

M 8x78

d₂

21

d₃

16

l₂

62

Weight g

37

£ 6.34 per unit (click for quantity discounts)

Clamping Screws for Toggle Clamps

45016.W0010

d₁ x l₁

M10x66

d₂

26

d₃

20

l₂

46

Weight g

53

Clamping Screw M10 x 76 26 - 20- 56 - 59

45016.W0011

d₁ x l₁

M10x76

d₂

26

d₃

20

l₂

56

Weight g

59

£ 7.83 per unit (click for quantity discounts)

Clamping Screw & elastic pad M10 x 116

45016.W0012

d₁ x l₁

M10x116

d₂

26

d₃

20

l₂

96

Weight g

84

£ 8.16 per unit (click for quantity discounts)

Clamping Screw & elastic pad M12 x 70

45016.W0013

d₁ x l₁

M12x70

d₂

31

d₃

24

l₂

46

Weight g

78

£ 8.50 per unit (click for quantity discounts)

Clamping Screw & elastic pad M12 x100

45016.W0014

d₁ x l₁

M12x100

d₂

31

d₃

24

l₂

76

Weight g

105

£ 10.32 per unit (click for quantity discounts)

Clamping Screw & elastic pad M12 x 130

45016.W0015

d₁ x l₁

M12x130

d₂

31

d₃

24

l₂

106

Weight g

131

£ 11.19 per unit (click for quantity discounts)

Clamping Screws - Steel. M 4x32 - 11 - 8 - 24

45016.W0001

d₁ x l₁

M 4x32

d₂

11

d₃

8

l₂

24

Weight g

4

£ 4.31 per unit (click for quantity discounts)

Clamping Screws - Steel. M 5x38 - 13 - 10 - 28

45016.W0002

d₁ x l₁

M 5x38

d₂

13

d₃

10

l₂

28

Weight g

8

£ 3.91 per unit (click for quantity discounts)

Clamping Screws for Toggle Clamps

45016.W0003

d₁ x l₁

M 6x35

d₂

16

d₃

12

l₂

23

Weight g

11

Clamping Screws - Steel. M 6x45 - 16 - 12 - 33

45016.W0004

d₁ x l₁

M 6x45

d₂

16

d₃

12

l₂

33

Weight g

13

£ 4.75 per unit (click for quantity discounts)

Clamping Screws for Toggle Clamps

45016.W0005

d₁ x l₁

M 6x60

d₂

16

d₃

12

l₂

48

Weight g

16

Clamping Screw & elastic pad M8 x 48

45016.W0006

d₁ x l₁

M 8x48

d₂

21

d₃

16

l₂

32

Weight g

25

£ 5.34 per unit (click for quantity discounts)

Clamping Screws for Toggle Clamps

45016.W0007

d₁ x l₁

M 8x58

d₂

21

d₃

16

l₂

42

Weight g

29

Clamping Screw & elastic pad M8 x 63

45016.W0008

d₁ x l₁

M 8x63

d₂

21

d₃

16

l₂

47

Weight g

31

£ 6.33 per unit (click for quantity discounts)

Clamping Screw & elastic pad M8 x 78

45016.W0009

d₁ x l₁

M 8x78

d₂

21

d₃

16

l₂

62

Weight g

37

£ 6.34 per unit (click for quantity discounts)

Clamping Screws for Toggle Clamps

45016.W0010

d₁ x l₁

M10x66

d₂

26

d₃

20

l₂

46

Weight g

53

Clamping Screw M10 x 76 26 - 20- 56 - 59

45016.W0011

d₁ x l₁

M10x76

d₂

26

d₃

20

l₂

56

Weight g

59

£ 7.83 per unit (click for quantity discounts)

Clamping Screw & elastic pad M10 x 116

45016.W0012

d₁ x l₁

M10x116

d₂

26

d₃

20

l₂

96

Weight g

84

£ 8.16 per unit (click for quantity discounts)

Clamping Screw & elastic pad M12 x 70

45016.W0013

d₁ x l₁

M12x70

d₂

31

d₃

24

l₂

46

Weight g

78

£ 8.50 per unit (click for quantity discounts)

Clamping Screw & elastic pad M12 x100

45016.W0014

d₁ x l₁

M12x100

d₂

31

d₃

24

l₂

76

Weight g

105

£ 10.32 per unit (click for quantity discounts)

Clamping Screw & elastic pad M12 x 130

45016.W0015

d₁ x l₁

M12x130

d₂

31

d₃

24

l₂

106

Weight g

131

£ 11.19 per unit (click for quantity discounts)



Select all

d₁ x l₁

d₂

d₃

l₂

Weight g

Price & Availability	Article	d1 x l1	d2	d3	l2	Weight g
	45016.W0001	M 4x32	11	8	24	4
£ 4.31 per unit (click for quantity discounts) Ready to despatch 9 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 4.31 0% 5-9 £ 4.09 5% 10-19 £ 3.88 10% 20+ £ 3.66 15% d1 x l1 M 4x32 d2 11 d3 8 l2 24 Weight g 4 more info »
	45016.W0002	M 5x38	13	10	28	8
£ 3.91 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 3.91 0% 5-9 £ 3.71 5% 10-19 £ 3.52 10% 20+ £ 3.32 15% d1 x l1 M 5x38 d2 13 d3 10 l2 28 Weight g 8 more info »
	45016.W0003	M 6x35	16	12	23	11
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 x l1 M 6x35 d2 16 d3 12 l2 23 Weight g 11 more info »
	45016.W0004	M 6x45	16	12	33	13
£ 4.75 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 4.75 0% 5-9 £ 4.51 5% 10-19 £ 4.28 10% 20+ £ 4.04 15% d1 x l1 M 6x45 d2 16 d3 12 l2 33 Weight g 13 more info »
	45016.W0005	M 6x60	16	12	48	16
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 x l1 M 6x60 d2 16 d3 12 l2 48 Weight g 16 more info »
	45016.W0006	M 8x48	21	16	32	25
£ 5.34 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 5.34 0% 5-9 £ 5.07 5% 10-19 £ 4.81 10% 20+ £ 4.54 15% d1 x l1 M 8x48 d2 21 d3 16 l2 32 Weight g 25 more info »
	45016.W0007	M 8x58	21	16	42	29
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 x l1 M 8x58 d2 21 d3 16 l2 42 Weight g 29 more info »
	45016.W0008	M 8x63	21	16	47	31
£ 6.33 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 6.33 0% 5-9 £ 6.01 5% 10-19 £ 5.70 10% 20+ £ 5.38 15% d1 x l1 M 8x63 d2 21 d3 16 l2 47 Weight g 31 more info »
	45016.W0009	M 8x78	21	16	62	37
£ 6.34 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 6.34 0% 5-9 £ 6.02 5% 10-19 £ 5.71 10% 20+ £ 5.39 15% d1 x l1 M 8x78 d2 21 d3 16 l2 62 Weight g 37 more info »
	45016.W0010	M10x66	26	20	46	53
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 x l1 M10x66 d2 26 d3 20 l2 46 Weight g 53 more info »
	45016.W0011	M10x76	26	20	56	59
£ 7.83 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 7.83 0% 5-9 £ 7.44 5% 10-19 £ 7.05 10% 20+ £ 6.66 15% d1 x l1 M10x76 d2 26 d3 20 l2 56 Weight g 59 more info »
	45016.W0012	M10x116	26	20	96	84
£ 8.16 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 8.16 0% 5-9 £ 7.75 5% 10-19 £ 7.34 10% 20+ £ 6.94 15% d1 x l1 M10x116 d2 26 d3 20 l2 96 Weight g 84 more info »
	45016.W0013	M12x70	31	24	46	78
£ 8.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 8.50 0% 5-9 £ 8.08 5% 10-19 £ 7.65 10% 20+ £ 7.23 15% d1 x l1 M12x70 d2 31 d3 24 l2 46 Weight g 78 more info »
	45016.W0014	M12x100	31	24	76	105
£ 10.32 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 10.32 0% 5-9 £ 9.80 5% 10-19 £ 9.29 10% 20+ £ 8.77 15% d1 x l1 M12x100 d2 31 d3 24 l2 76 Weight g 105 more info »
	45016.W0015	M12x130	31	24	106	131
£ 11.19 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 11.19 0% 5-9 £ 10.63 5% 10-19 £ 10.07 10% 20+ £ 9.51 15% d1 x l1 M12x130 d2 31 d3 24 l2 106 Weight g 131 more info »
