45080 Self-Aligning Clamping Screw

for open clamping arms, material: Steel, zinc plated

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Position Sensor
manual toggle clamps

Toggle Clamps
for toggle clamps 40000 and 41000

Supporting Arms
for toggle clamps

Proximity Switch
end-position sensing

Clamping arm extension
for manual clamps

Clamping Arm Extension
manual toggle clamps

Clamping Screws for Toggle Clamps
for clamps - bonded pressure pad

Clamping Screws
solid and fixed clamping arms

Clamping Screws
push-pull toggle clamps

Clamping Screw
black

Clamping Screws
push-pull toggle clamps

Clamping Screws
open arm

Clamping Screw
black

Clamping Screws
horizontal acting toggle clamp

Clamping Screws
horizontal acting toggle clamp

Clamping Screws
open arm

Clamping Screws
self-aligning

Clamping Screw
open clamping arms

Clamping Screws
for auto adjust toggle clamps

Spring Loaded Screws
for open ended clamping arms

Rubber Caps
for clamping screws

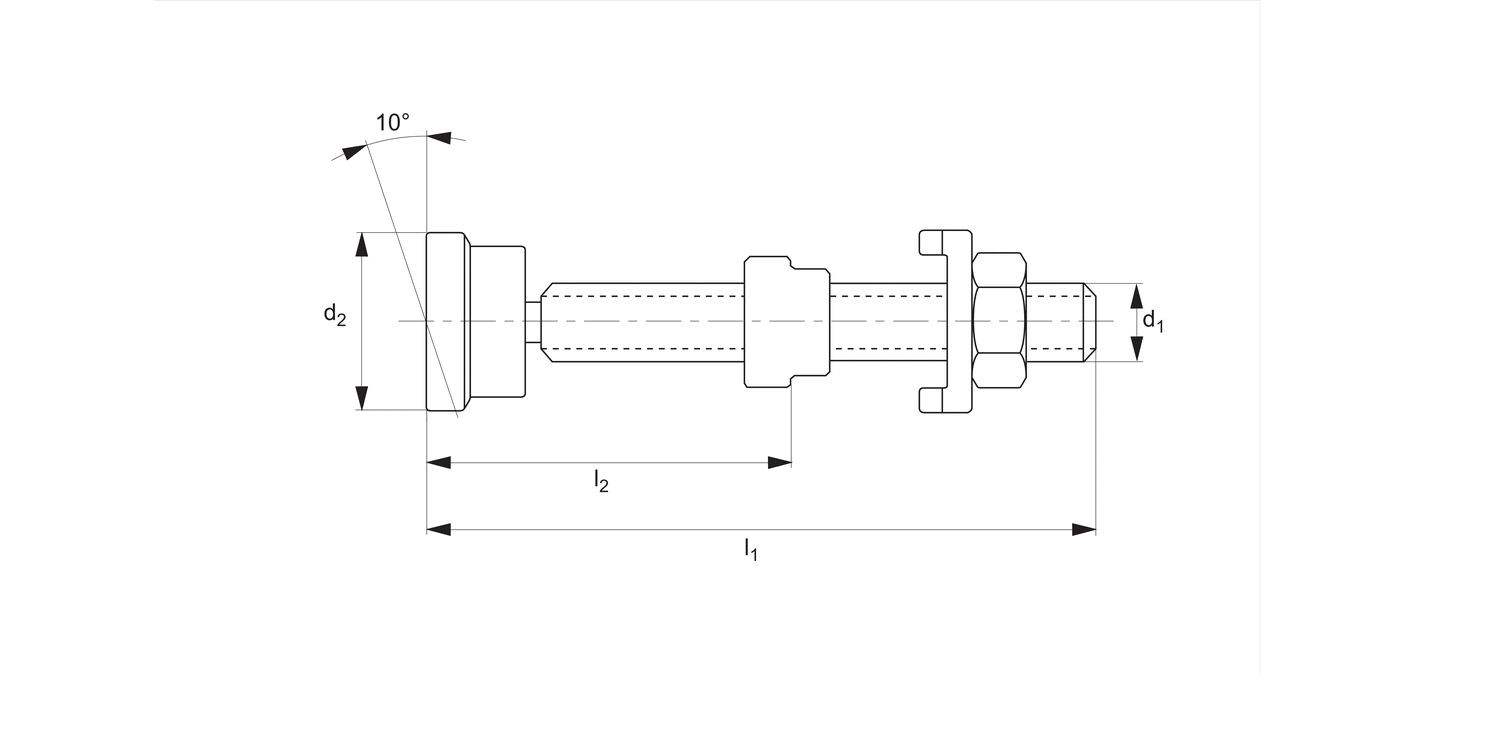

Self Aligning Clamping Screws Heat treated steel - 1 - M 5x35

45080.W0001

Size

1

Screw

M 5x35

d₁

12

l₁

37

l₂

12-22

T-nut DIN 508

-

Washer size

1

Weight g

12

£ 21.67 per unit (click for quantity discounts)

Self Aligning Clamping Screws Heat treated steel - 2 - M 6x50

45080.W0002

Size

2

Screw

M 6x50

d₁

12

l₁

52

l₂

14-33

T-nut DIN 508

-

Washer size

2

Weight g

20

£ 22.09 per unit (click for quantity discounts)

Self Aligning Clamping Screws Heat treated steel - 3 - M 8x75

45080.W0003

Size

3

Screw

M 8x75

d₁

16

l₁

78

l₂

18-52

T-nut DIN 508

-

Washer size

3

Weight g

47

£ 23.08 per unit (click for quantity discounts)

Self Aligning Clamping Screws Heat treated steel - 6 - M12x100 -M12x14

45080.W0006

Size

6

Screw

M12x100

d₁

25

l₁

105

l₂

25-62

T-nut DIN 508

M12x14

Washer size

6

Weight g

183

£ 28.56 per unit (click for quantity discounts)

Self Aligning Clamping Screws Heat treated steel - 1 - M 5x35

45080.W0001

Size

1

Screw

M 5x35

d₁

12

l₁

37

l₂

12-22

T-nut DIN 508

-

Washer size

1

Weight g

12

£ 21.67 per unit (click for quantity discounts)

Self Aligning Clamping Screws Heat treated steel - 2 - M 6x50

45080.W0002

Size

2

Screw

M 6x50

d₁

12

l₁

52

l₂

14-33

T-nut DIN 508

-

Washer size

2

Weight g

20

£ 22.09 per unit (click for quantity discounts)

Self Aligning Clamping Screws Heat treated steel - 3 - M 8x75

45080.W0003

Size

3

Screw

M 8x75

d₁

16

l₁

78

l₂

18-52

T-nut DIN 508

-

Washer size

3

Weight g

47

£ 23.08 per unit (click for quantity discounts)

Self Aligning Clamping Screws Heat treated steel - 6 - M12x100 -M12x14

45080.W0006

Size

6

Screw

M12x100

d₁

25

l₁

105

l₂

25-62

T-nut DIN 508

M12x14

Washer size

6

Weight g

183

£ 28.56 per unit (click for quantity discounts)



Select all

Size

Screw

d₁

l₁

l₂

T-nut DIN 508

Washer size

Weight g

Price & Availability	Article	Size	Screw	d1	l1	l2	T-nut DIN 508	Washer size	Weight g
	45080.W0001	1	M 5x35	12	37	12-22	-	1	12
£ 21.67 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 21.67 0% 5-9 £ 20.59 5% 10-19 £ 19.50 10% 20+ £ 18.42 15% Size 1 Screw M 5x35 d1 12 l1 37 l2 12-22 T-nut DIN 508 - Washer size 1 Weight g 12 more info »
	45080.W0002	2	M 6x50	12	52	14-33	-	2	20
£ 22.09 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 22.09 0% 5-9 £ 20.99 5% 10-19 £ 19.88 10% 20+ £ 18.78 15% Size 2 Screw M 6x50 d1 12 l1 52 l2 14-33 T-nut DIN 508 - Washer size 2 Weight g 20 more info »
	45080.W0003	3	M 8x75	16	78	18-52	-	3	47
£ 23.08 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 23.08 0% 5-9 £ 21.93 5% 10-19 £ 20.77 10% 20+ £ 19.62 15% Size 3 Screw M 8x75 d1 16 l1 78 l2 18-52 T-nut DIN 508 - Washer size 3 Weight g 47 more info »
	45080.W0006	6	M12x100	25	105	25-62	M12x14	6	183
£ 28.56 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 28.56 0% 5-9 £ 27.13 5% 10-19 £ 25.70 10% 20+ £ 24.28 15% Size 6 Screw M12x100 d1 25 l1 105 l2 25-62 T-nut DIN 508 M12x14 Washer size 6 Weight g 183 more info »
